PE3117概述：
PE3117是VDS=-30V,ID=-7A，RDS(ON)<22mΩ，@VGS=-10V，RDS(ON)<30mΩ，@VGS=-4.5V的P-Channel Enhancement Mode Power MOSFET.
PE3117的丝印是3117.PE3117提供SOT-23-3L封装.
PE3117的丝印是3117.PE3117提供SOT-23-3L封装.
The PE3117 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.
PE3117特性：
VDS = -30V, ID = -7A
RDS(ON) < 22mΩ @ VGS=-10V
RDS(ON) < 30mΩ @VGS=-4.5V
High Power and current handing capability
Lead free product is acquired
Surface Mount Package
PE3117应用：
PWM applications
Load switch
Power management

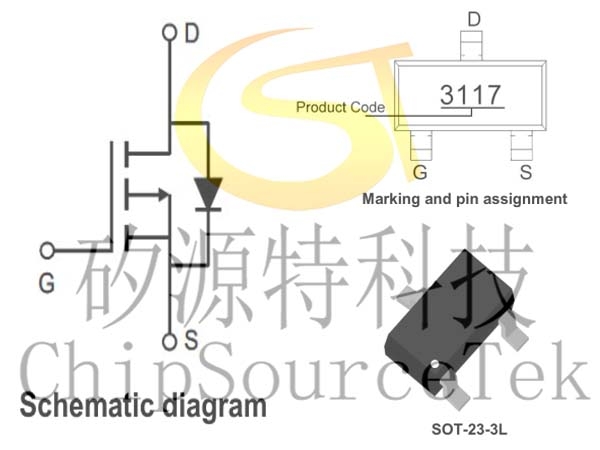

PE3117典型应用及引脚图：
