PE3415A概述：
PE3415A是VDS=-20V,ID=-5A，RDS(ON)<40mΩ，@VGS=-4.5V，RDS(ON)<60mΩ，@VGS=-2.5V的P-Channel MOSFET.PE3415A的丝印是3415E.PE3415A提供SOT-23封装.
The PE3415A uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.
PE3415A特性：
VDS = -20V, ID = -5A
RDS(ON) < 40mΩ @VGS=-4.5V
RDS(ON) < 60mΩ @VGS=-2.5V
EAS Rating: ≥4000V HBM
High Power and current handing capability
Lead free product is acquired
Surface Mount Package
PE3415A应用：
PWM applications
Load switch
Power management

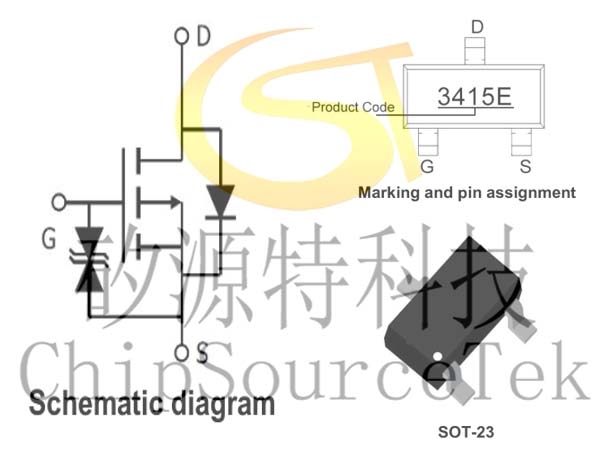

PE3415A典型应用及引脚：
