Voice chip

APT305

    APT305 is a 5 Sec Easy Use Speech IC .It Support PWM voice output with high quality speech , There are 5 second Voice Length under 6 KHz sampling and 4 bit hardware compression.
    Its internal built-in a oscillator for system clock without an external resistor. Maximum 12 voice groups. One Group contain several steps(voice section ); Maximum 700 steps for all the Groups. Each Step can be define Trigger Mode, Output Status, Voice Section, Mute length, I/O Type & Simple Programming Function.User can select 8bit/5bit/4bit data compression. Support two mode trigger IC (Stand Alone, Serial Trigger Mode). Easy use development system is for function selection and voice combination . PC download the ROM code by the USB Port .
    APT305 Description:
        APT305 is a 5 Sec Easy Use Speech IC .
        It Support PWM voice output with high quality speech , There are 5 second Voice Length under 6 KHz sampling and 4 bit hardware compression.
        Its internal built-in a oscillator for system clock without an external resistor. Maximum 12 voice groups. One Group contain several steps(voice section ); Maximum 700 steps for all the Groups. Each Step can be define Trigger Mode, Output Status, Voice Section, Mute length, I/O Type & Simple Programming Function.
        User can select 8bit/5bit/4bit data compression. Support two mode trigger IC (Stand Alone, Serial Trigger Mode).
        Easy use development system is for function selection and voice combination . PC download the ROM code by the USB Port .

    APT305 Functions:
    MAX voice file : 700
    MAX Trigger Groups : 12
    Power On Trigger Group :1
    MAX Step : 700
    Signal step mute length : 0.64 s ( 6k sample rate )
    Operating Voltage range: 2.4V ~ 3.6V
    Total Voice Duration : 5” (30K Samples)
    I/O pin : 2
    Voice output : PWM
    Sequential Key : TG1 -> 8 Groups.
                                   TG2 -> 4 Groups.
    Debounce time : 50 us or 10 ms
    On/Off function : only for all TG PIN
    Step can change Trigger I/O Type, Trigger Mode & Output Status.
    Hardware Trigger Group Repeat function.
    Simple Programming Function :
      (a) Write data to working register.
      (b) Working Register Increasing.
      (c) Step Jump by Working Register / Volume Status.
    Three Mode Trigger IC :
    - Key Stand-alone Trigger Mode :
      A. Edge/Level
      B. Hold/Unhold
      C. Retrigger/Irretrigger
    - Serial Trigger Mode :
      Combinations of TG1 and TG2 to trigger maximum 13 Voice Group.
    Output status (for each Output pin):
      A. Stand by Status. (High/Low Status)
      B. Busy Low Active.
      C. Busy High Active.
      D. LED Flash at 6 Hz.
      E. LED Flash at 3 Hz.
      F. LED Flash at 1.5 Hz.
      G. LED Flash at 0.75 Hz.
      H. PWM for LED Dimming Control.
    Play rate level :
      APT305 can provide different play rate in one code as follow below Reference Sample Rate.
      3K, 3.2K, 3.31K, 3.42K, 3.55K, 3.69K, 3.84K, 4K, 4.17K, 4.36K, 4.57K,4.8K,  5.05K, 5.33K, 5.64K,
      6K, 6.4K, 6.85K, 7.38K, 8K, 8.72K, 9.6K, 10.66K, 12K,   13.71K, 16K, 19.2K, 24K,32K.

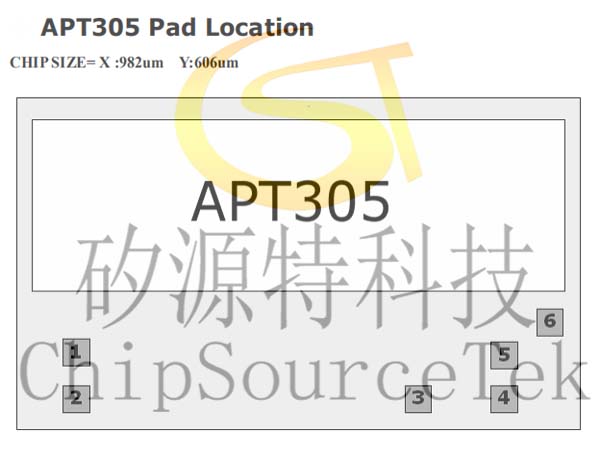

    APT305 Pad Location:
    NO.
    PAD NAME
    X
    Y
    NO.
    PAD NAME
    X
    Y
    1
    TG2
    -401
    -142
    4
    PWM1
    311
    -241
    2
    TG1
    -401
    -227
    5
    PWM2
    311
    -157
    3
    VSS
    107
    -224
    6
    VDD
    435
    -59

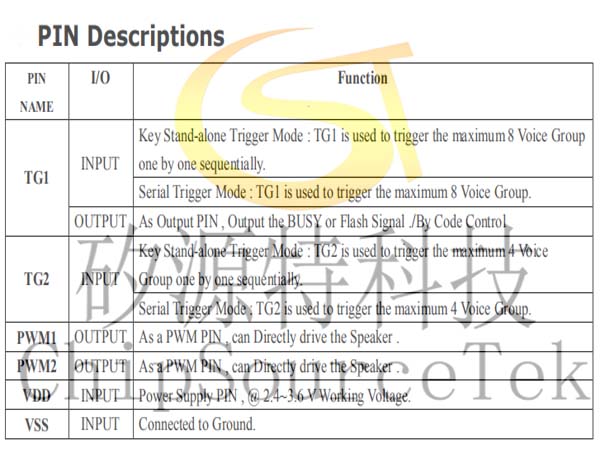

    APT305 PIN Descriptions:

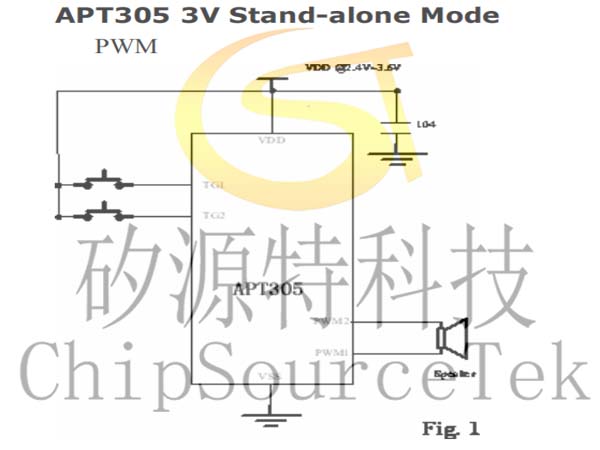

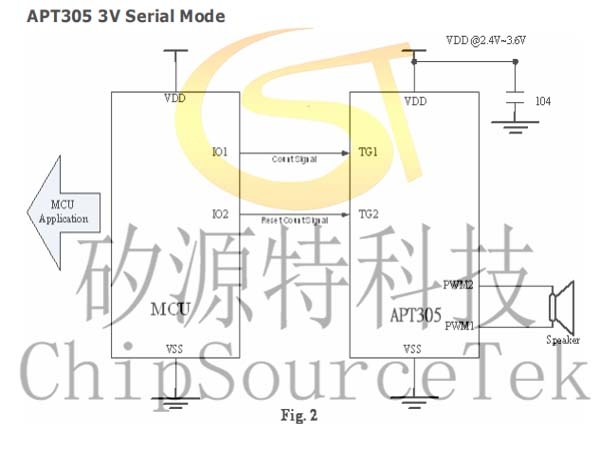

    APT305 Application Circuit:


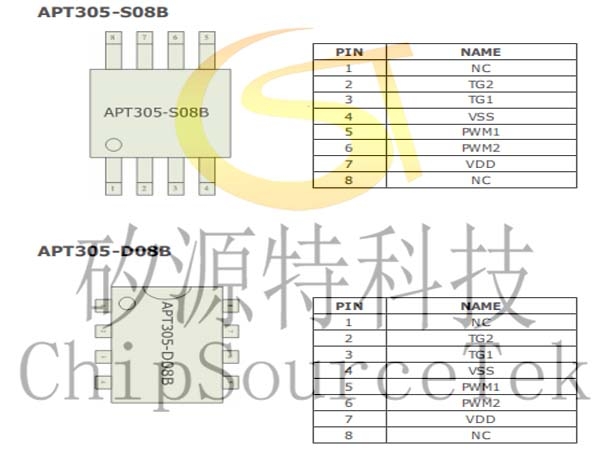

    APT305 Package Information:

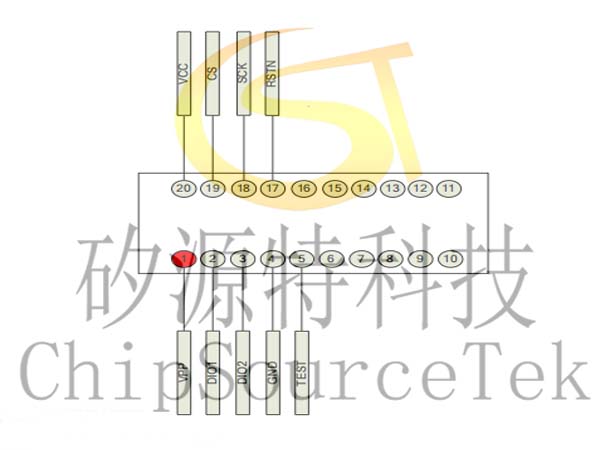

    APT305 Writer Board Slot Location:
