Voice chip

APT340

    APT340 is a 40 Sec Easy Use Speech IC .
    It Support PWM or DAC voice output with high quality speech , There are 40 second Voice Length under6 KHz sampling and 4 bit hardware compression.Its internal built-in a oscillator for system clock without an external resistor.
    Maximum 63 voice groups. One Group contain several steps(voice section ); Maximum 700 steps for all the Groups. Each Step can be define Trigger Mode, Output Status, Voice Section, Mute length, I/O Type & Simple Programming Function. User can select 8bit / 5bit / 4bit data compression. Support three mode trigger IC (Stand Alone, Serial Trigger Mode, CPU Command Mode ).
    Easy use development system is for function selection and voice combination . PC download the ROM code by the USB Port .
    APT340 Description:
        APT340 is a 40 Sec Easy Use Speech IC .
        It Support PWM or DAC voice output with high quality speech , There are 40 second Voice Length under6 KHz sampling and 4 bit hardware compression.Its internal built-in a oscillator for system clock without an external resistor.
        Maximum 63 voice groups. One Group contain several steps(voice section ); Maximum
    700 steps for all the Groups. Each Step can be define Trigger Mode, Output Status, Voice Section, Mute length, I/O Type & Simple Programming Function. User can select 8bit / 5bit / 4bit data compression. Support three mode trigger IC (Stand Alone, Serial Trigger Mode, CPU Command Mode ).
        Easy use development system is for function selection and voice combination . PC download the ROM code by the USB Port .

    APT340 Functions:
    MAX voice file : 700
    MAX Trigger Groups : 63
    Power On Trigger Group :1
    MAX Step : 700
    Signal step mute length : 0.64 s ( 6k sample rate )
    Operating Voltage range: 2.4V ~ 3.6V
    Total Voice Duration : 40” (240K Samples)
    I/O pin : 4
    Voice output : PWM or DAC
    Sequential Key : TG1 -> 32 Groups.
                     TG2 -> 29 Groups.
                     TG3,TG4-> 1 Group
    Debounce time : 50 us or 10 ms
    On/Off function : only for all TG PIN
    Sequential Key for Volume control function.
    Step can change Trigger I/O Type, Trigger Mode & Output Status.
    Hardware Trigger Group Repeat function.
    Simple Programming Function :
      (a) Write data to working register
      (b) Working Register Increasing.
      (c) Step Jump by Working Register / Volume Status.

    Three Mode Trigger IC :
    - Key Stand-alone Trigger Mode :
      A. Edge/Level
      B. Hold/Unhold
      C. Retrigger/Irretrigger
    - Serial Trigger Mode :
      Combinations of TG1 and TG2 to trigger maximum 63 Voice Group.
    - CPU Command Mode :
      User command through TG1,TG2,TG3 & TG4 with serial CPU Interface to
      control the Multi-Playback function.

    Output status (for each Output pin):
      A. Stand by Status. (High/Low Status)
      B. Busy Low Active.
      C. Busy High Active.
      D. LED Flash at 6 Hz.
      E. LED Flash at 3 Hz.
      F. LED Flash at 1.5 Hz.
      G. LED Flash at 0.75 Hz.
      H. PWM for LED Dimming Control.

    Play rate level :
      APT340 can provide different play rate in one code as follow below
      Reference Sample Rate.
      3K, 3.2K, 3.31K, 3.42K, 3.55K, 3.69K, 3.84K, 4K, 4.17K, 4.36K, 4.57K,
      4.8K, 5.05K, 5.33K, 5.64K, 6K, 6.4K, 6.85K, 7.38K, 8K, 8.72K, 9.6K,
      10.66K, 12K, 13.71K, 16K, 19.2K, 24K.

    TG2 Low Reset
    TG3 Volume Control

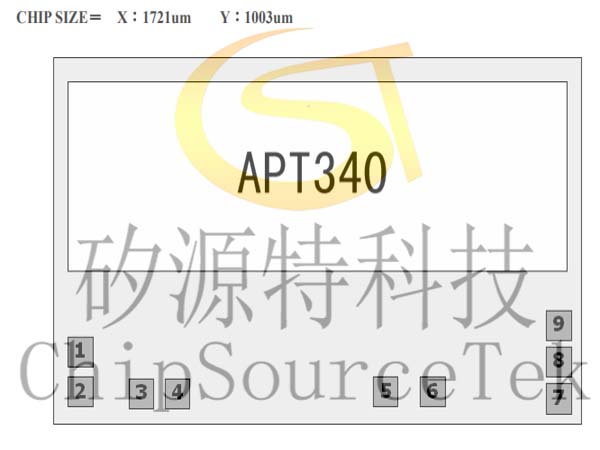

    APT340 Pad Location:

    NO.
    PAD NAME
    X
    Y
    NO.
    PAD NAME
    X
    Y
    1
    TG2/RSTB
    -770
    -328
    6
    VSS
    433
    -410
    2
    TG1
    -770
    -414
    7
    PWM1
    787
    -432
    3
    TG3
    -599
    -411
    8
    VDD
    790
    -348
    4
    TG4
    -514
    -411
    9
    PWM2
    787
    -263
    5
    VSS
    250
    -415





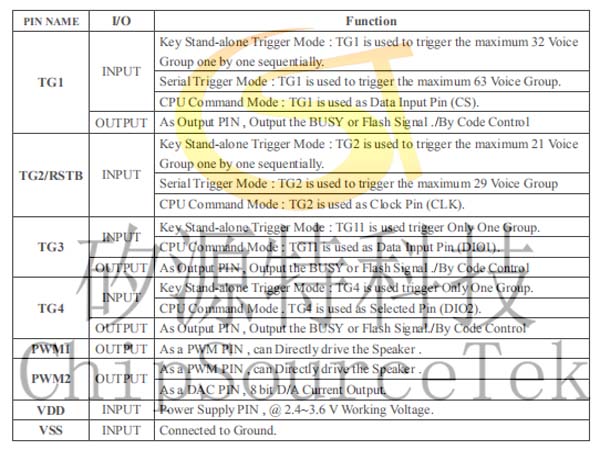

    APT340 PIN Descriptions:

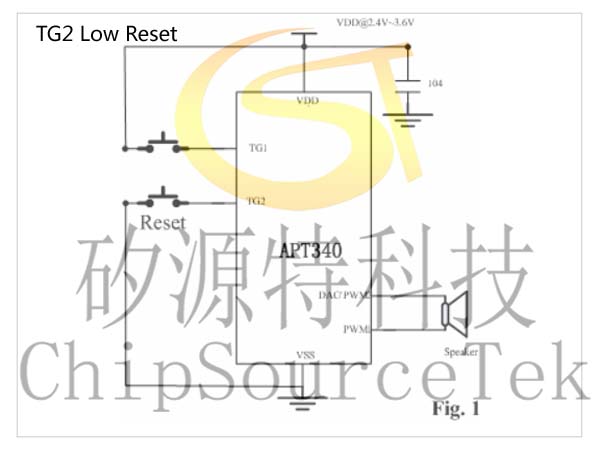

    APT340 TG2 Low Reset:

    APT305 Application Circuit:

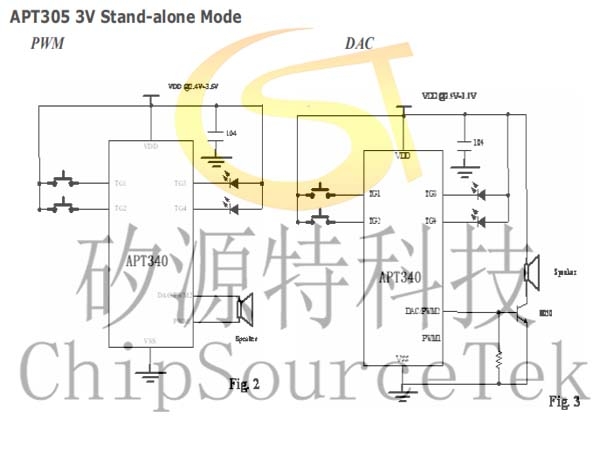

    APT305 3V Stand-alone Mode

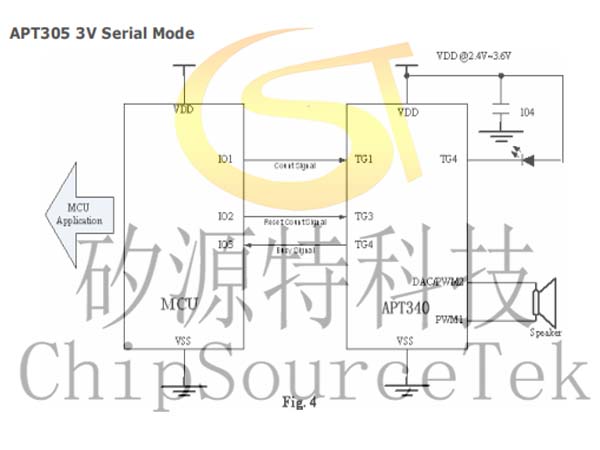

    APT305 3V Serial Mode

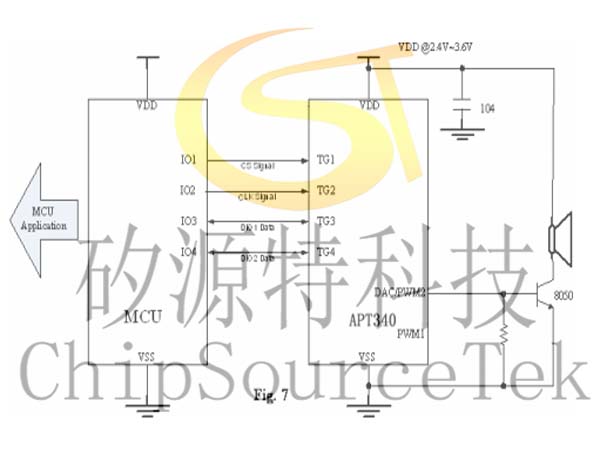

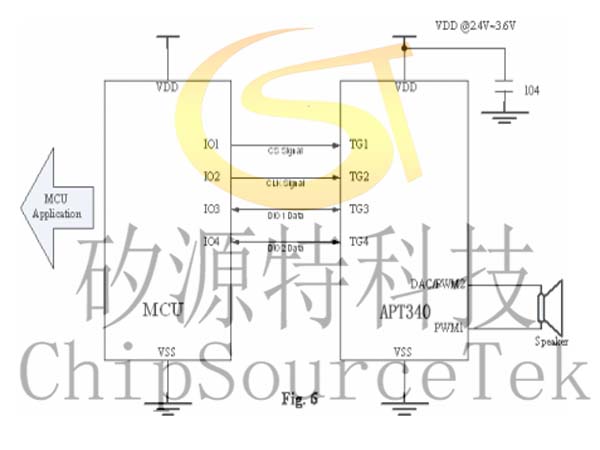

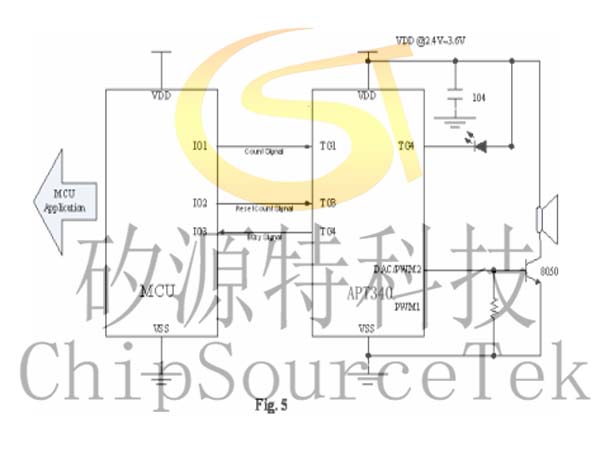

    APT305 3V CPU Mode

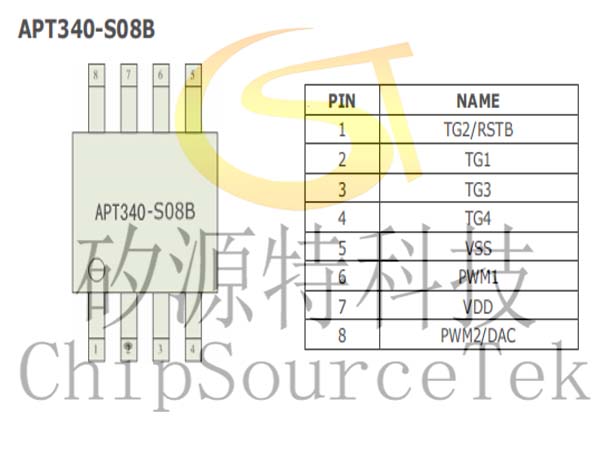

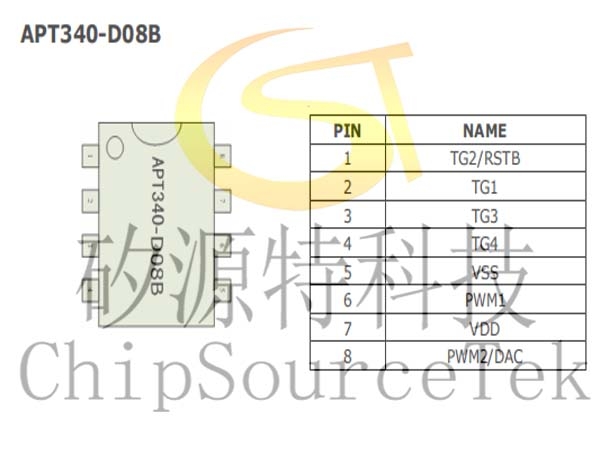

    APT340 Package Information:



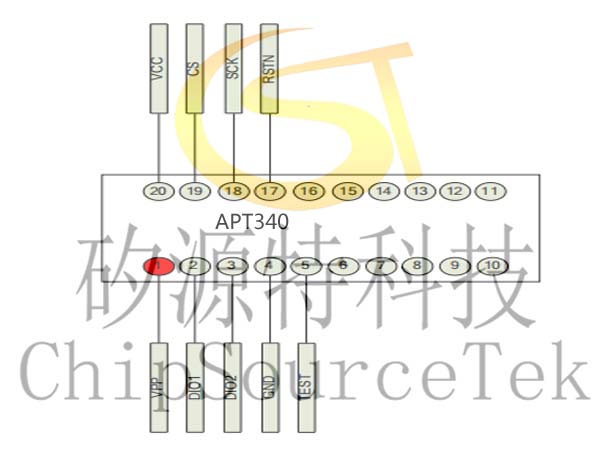

    Writer Board Slot Location (DIP20):
