ZCC2467 Description/概述：
The ZCC2467 is a high frequency step-down switching regulator with integrated internal high-side , high voltage power MOSFET . It provides 2.5A output with current mode control for fast loop response and easy compensation .
The wide 6V to 36V input range accommodates a variety of step-down applications , induding those in automotive systems . A 100pA operational quiescent current allows use in battery - powered applications .
High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses .
The frequency foldback prevents inductor current runaway during startup and thermal shutdown provides reliable , faulttolerant operation .
The ZCC2467 is available in thermally enhanced SOIC8 package .
ZCC2467 Features/特性：
100pA Quiescent Gurrent
Wide 6V to 36V Operating Input Range
150mΩ Internal Power MOSFET
500kHz Fixed Switching Frequency
Ceramic Capacitor Stable
Internal Soft - Start
Precision Current Limit without a Current Sensing Resistor
Up to 95% Efficiency
Output Adjustable from 0.8V to 30V
Available in SOIC8 with Exposed Pad Packages
ZCC2467 Applications/应用：
Game Machines
Automotive Systems
Industrial Power Systems
Distributed Power Systems
Printer Systems
Battery Powered Systems

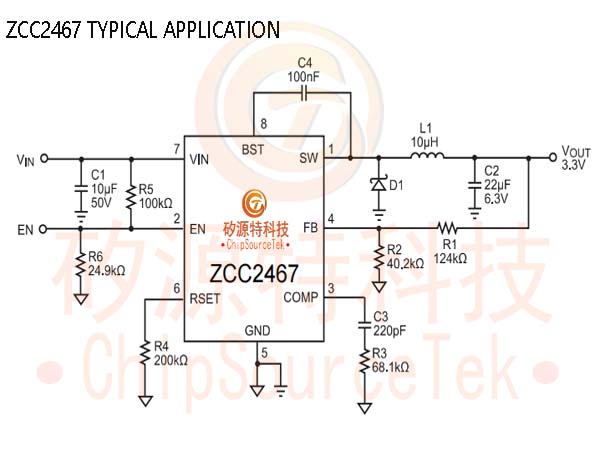

ZCC2467 Typical Application/典型应用：

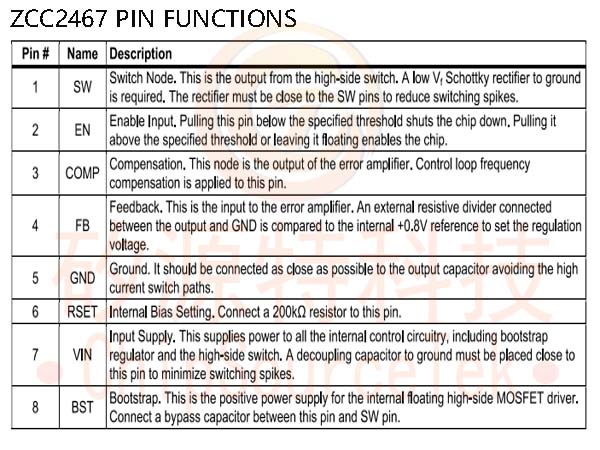

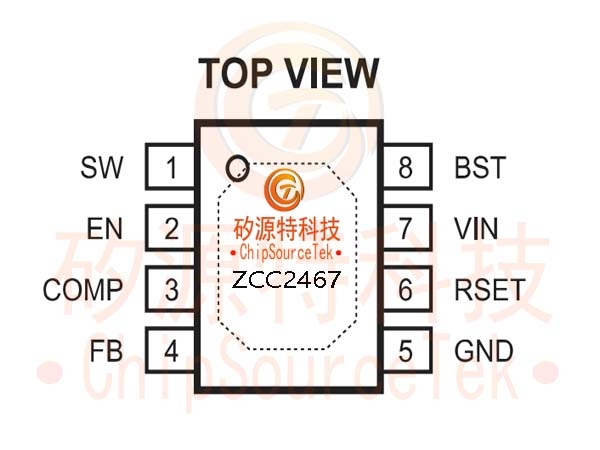

ZCC2467 Pin Configuration/引脚配置：

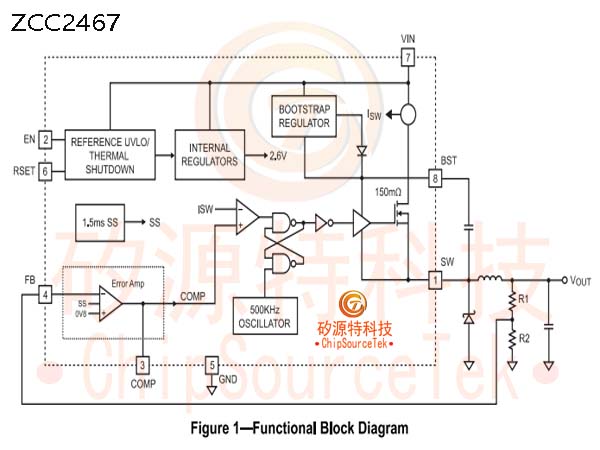

ZCC2467 Block Diagram/结构框图：

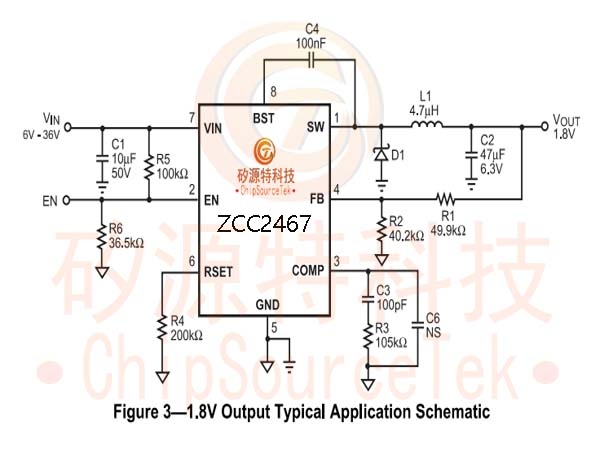

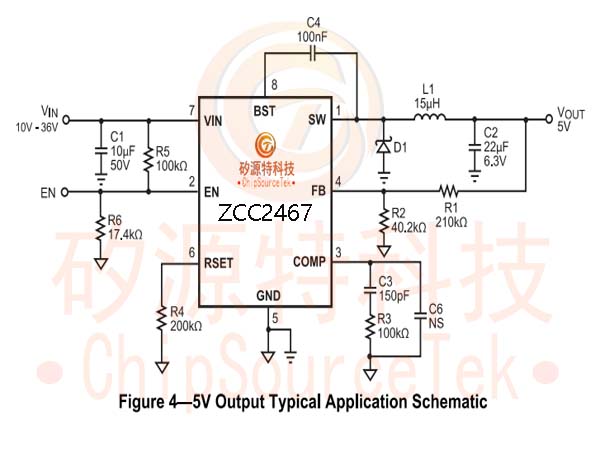

ZCC2467 Typlcal Application Circuits/典型应用电路：
