The ME2212 is a high frequency, asynchronous boost converter. The internal MOSFET can support up to 10 White LEDs for backlighting and OLED power application, and the internal soft start function can reduce the inrush current. The device operates with 1-MHz fixed switching frequency to allow small external components and to simplify possible EMI problems. Moreover, the IC comes with 46V over voltage protection to allow inexpensive and small-output capacitors with lower voltage ratings. The LED current is initially set with the external sense resistor Rs.

ME2212 Features：

VIN Operating Range : 2.5V to 5.5V

Internal Power N-MOSFET Switch

Wide Range for PWM Dimming (100Hz to 200kHz)

1MHz Switching Frequency

Minimize the External Component Counts

Internal Soft Start

Internal Compensation

Under Voltage Protection

Over Voltage Protection

Over Temperature Protection

ME2212 Application：

Cellular Phones

Digital still cameras

PDAs and Smart Phones and MP3 and OLED.

Probable Instruments

ME2212 Package：

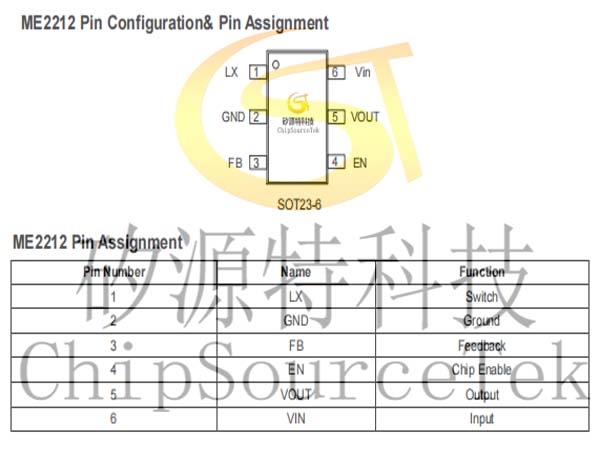

6-pin SOT23-6

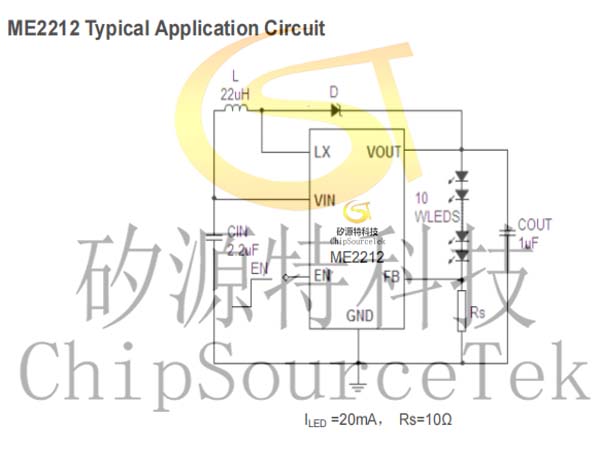

ME2212 Typical Application Circuit：

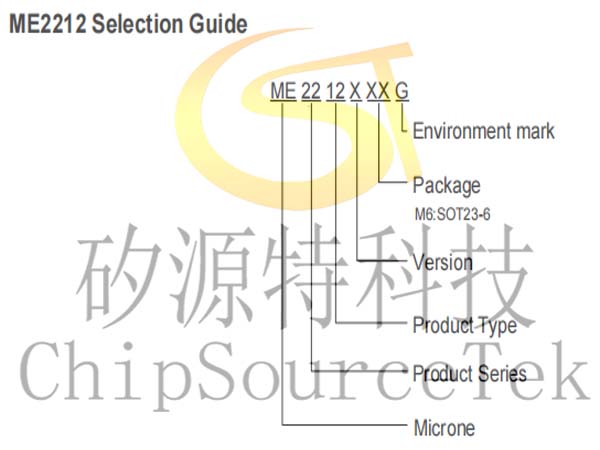

product series	product description
ME2212AM6G	Package：SOT23-6

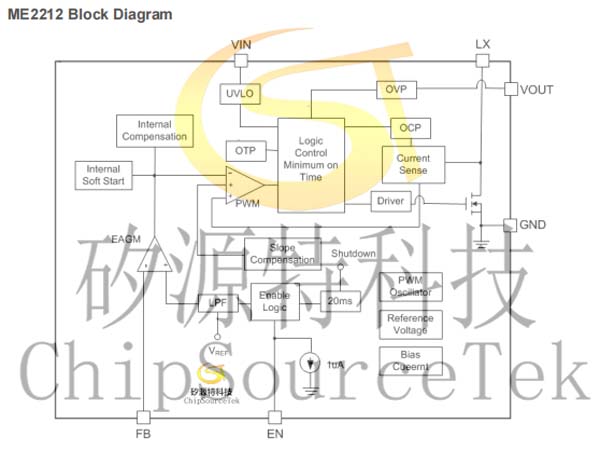

ME2212 Block Diagram：
