FM16概述
The FM16 is 16M-bit Serial Peripheral Interface (SPI) Flash memory, and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO). The Dual Output data is transferred with speed of 108Mbits/s. The device uses a single low voltage power supply, ranging from 2.7 Volt to 3.6 Volt.
Additionally, the device supports JEDEC standard manufacturer and device ID.

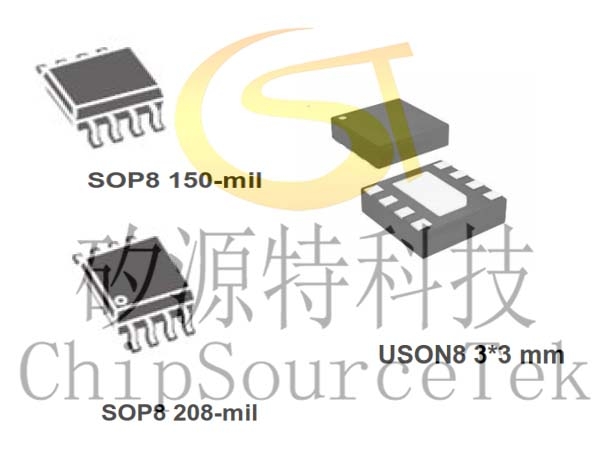

In order to meet environmental requirements, Boya Microelectronics offers an 8-pin SOP 150-mil, 173-mil or 208mil, an 8-pad USON 3x3-mm, DFN3*3, and other special order packages, please contacts Boya Microelectronics for ordering information.
FM16特性
● erial Peripheral Interface (SPI)
- Standard SPI: SCLK, /CS, SI, SO, /WP
- Dual SPI: SCLK, /CS, IO0, IO1, /WP
● Read
- Normal Read (Serial): 55MHz clock rate
- Fast Read (Serial): 108MHz clock rate
- Dual Read: 108MHz clock rate SOP8 150-mil
● Program
- Serial-input Page Program up to 256bytes
● Erase
- Block erase (64/32 KB)
- Sector erase (4 KB)
- Chip erase
● Program/Erase Speed
- Page Program time: 0.7ms typical
- Sector Erase time: 100ms typical
- Block Erase time: 0.3/0.5s typical
- Chip Erase time: 15s typical SOP8 208-mil
● Flexible Architecture
- Sector of 4K-byte
- Block of 32/64K-byte
● Low Power Consumption
- 20mA maximum active current
- 5uA maximum power down current
● Software/Hardware Write Protection
- Enable/Disable protection with WPPin
- Write protect all/portion of memory via software
- Top or Bottom, Sector or Block selection
● Single Supply Voltage
- Full voltage range: 2.7~3.6V USON8 3*3 mm
● Temperature Range
- Commercial (0℃ to +70℃)
- Industrial (-40℃ to +85℃)
● Cycling Endurance/Data Retention
- Typical 100k Program-Erase cycles on any sector
- Typical 20-year data retention at +55℃
FM16封装图

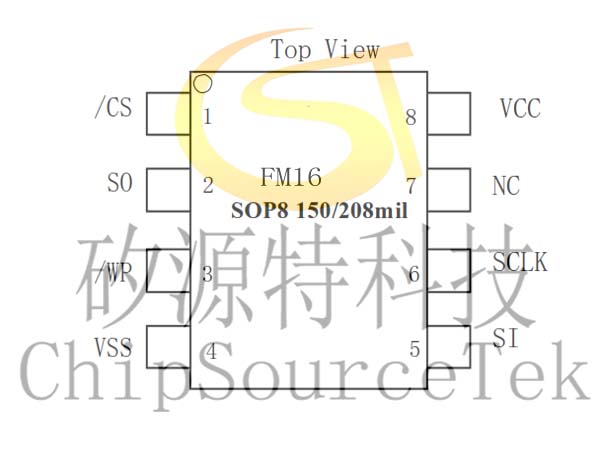

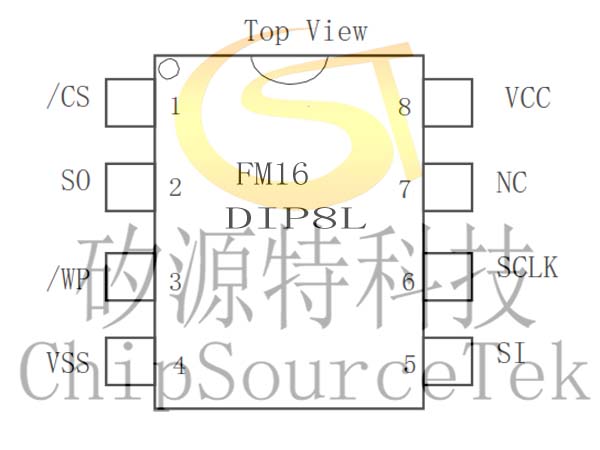

FM16引脚配置
FM16逻辑图
FM16封装图
FM16引脚配置
