HYG045P03LQ1C2是VDS=-30V,RDS(ON)=3.8mΩ (typ.) @VGS=-10VRDS(ON)=6.2mΩ (typ.) @VGS=-4.5V,ID=-80A的P沟道增强Mosfet。提供PPAK5*6-8L封装。

HYG045P03LQ1C2 Description/描述:

HYG045P03LQ1C2是VDS=-30V,RDS(ON)=3.8mΩ (typ.) @VGS=-10VRDS(ON)=6.2mΩ (typ.) @VGS=-4.5V,ID=-80A的P沟道增强Mosfet。提供PPAK5*6-8L封装。

HYG045P03LQ1C2 Features/特性:

-30V/-80A

RDS(ON)=3.8 mΩ (typ.) @VGS=-10V

RDS(ON)=6.2mΩ (typ.) @VGS=-4.5V

100% Avalanche Tested

Reliable and Rugged

Halogen- Free Devices Available

HYG045P03LQ1C2 Applications/应用：

Switching Application

Power Management for DC/DC

Battery Protection

HYG045P03LQ1C2 Ordering Information/订购信息:

Package Type	Unit	Quantity
PPAK5*6-8L	Reel	5000

HYG045P03LQ1C2 TO252 Pin Configuration/引脚配置:

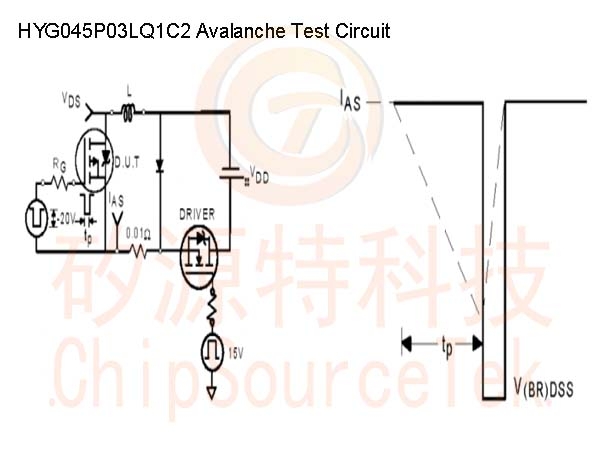

HYG045P03LQ1C2 Avalanche Test Circuit/雪崩试验电路：

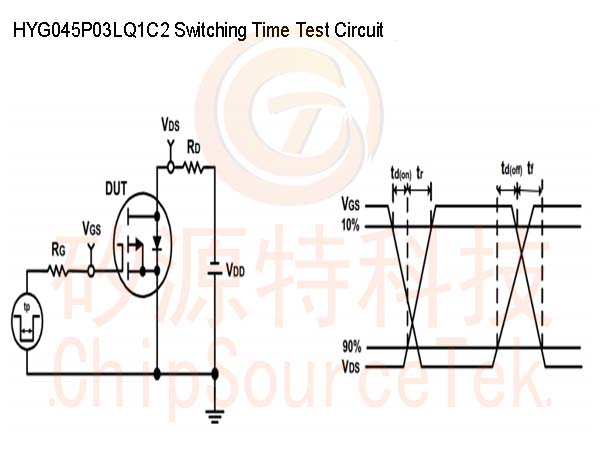

HYG045P03LQ1C2 Switching Time Test Circuit/开关时间测试电路:

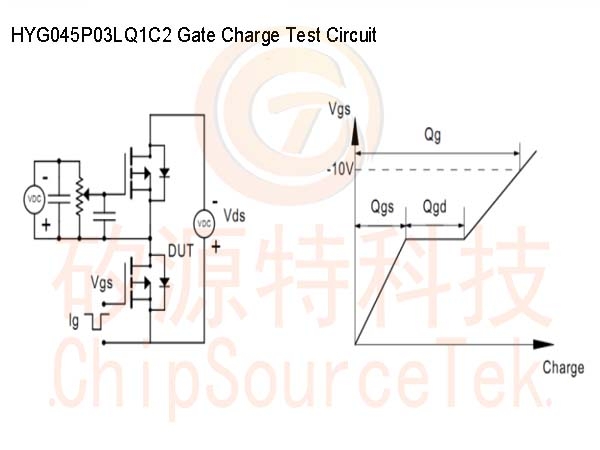

HYG045P03LQ1C2 Gate Charge Test Circuit/闸电荷测试电路:
