AKT30P55G Description/描述:
AKT30P55G是VDS=-30V,RDSON=4.6mΩ,ID=-55A的P沟道增强Mosfet。提供PDFN5X6-8L封装。
This P Channel Trench MOSFET has been designed to low on-state resistance (RDSON),suggested use for Load Switch, PWM application Power managerment and general-purpose applications.
AKT30P55G Features/特性:
Advanced Trench Technology
Excellent Gate Charge × RDSON (FOM)
low on-resistance
RoHS compliant (Note 1)
Halogen-free (Note 1)
AKT30P55G Applications/应用：
Battery Protection
Load Switch
Power Management
AKT30P55G Key Performance Parameters/关键性能参数：
|
Parameter
|
Value
|
Unit
|
|
VDS
|
-30
|
V
|
|
RDSON
|
max @VGS = -4.5V 4.6
|
mΩ
|
|
ID
|
-55
|
A
|
AKT30P55G Ordering Information/订购信息:
|
Ordering Code
|
Package Type
|
Marking Code
|
Form
|
Packing
|
|
AKT30P55G
|
PDFN5X6-8L
|
AKT30P55G
|
13 inches Reel
|
5000
|

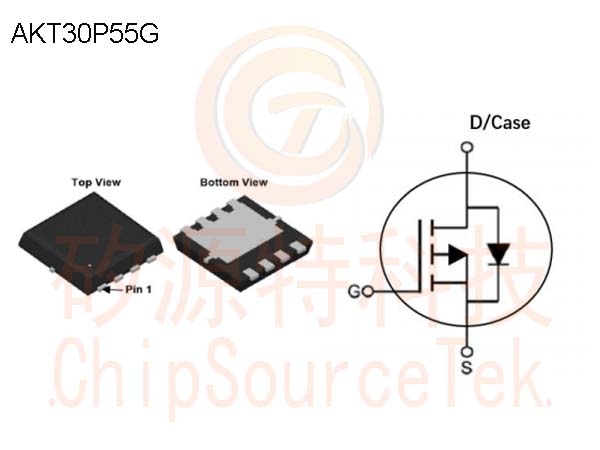

AKT30P55G TO252 Pin Configuration/引脚配置:

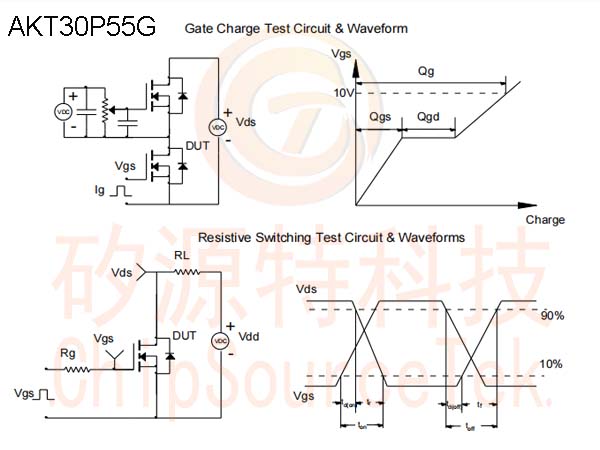

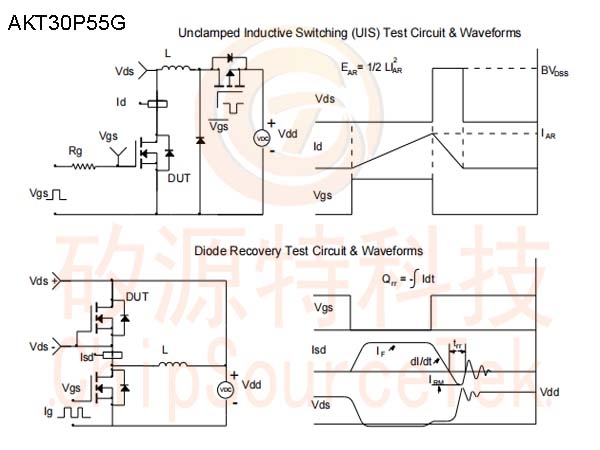

AKT30P55G Test Circuit and Waveform/测试电路和波形：
