CST90P03F Description/描述:

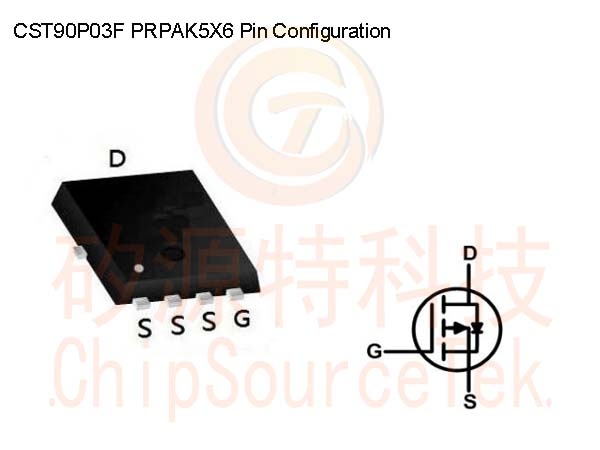

CST90P03F是BVDSS=-30V,RDSON=3.5mΩ,ID=-90A的P沟道快速切换mosfet。提供PRPAK5X6封装。
The CST90P03F is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST90P03F meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST90P03F Features/特性:
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST90P03F Product Summary/产品目录:
|
BVDSS
|
RDSON
|
ID
|
|
-30V
|
3.5mΩ
|
-90A
|

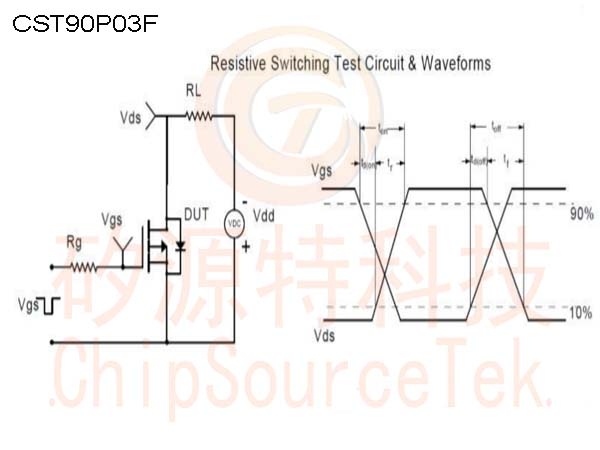

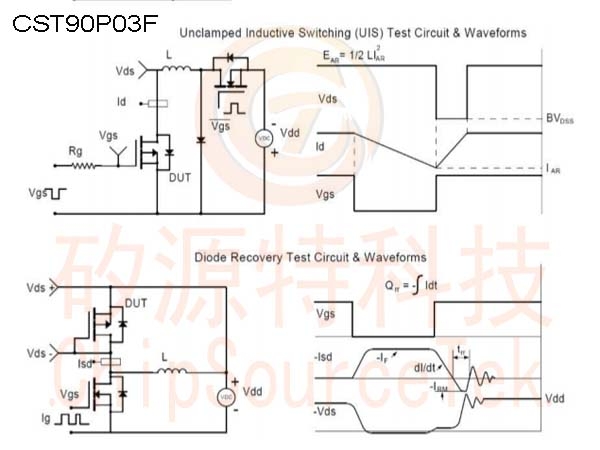

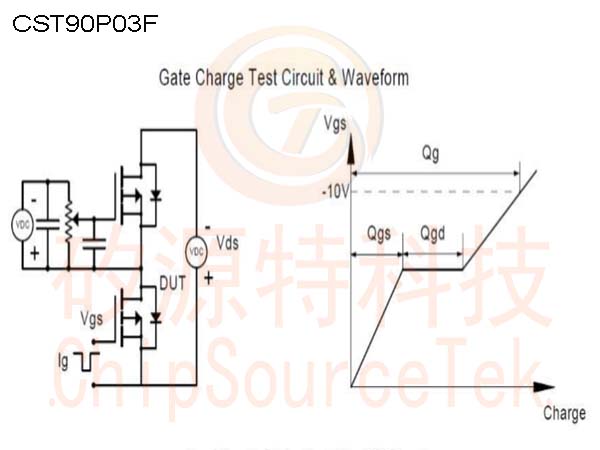

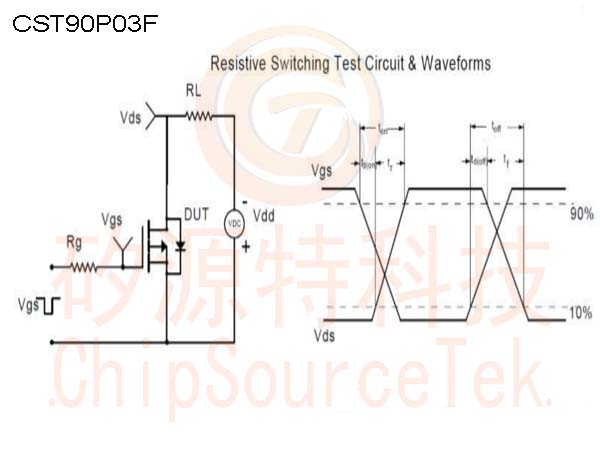

CST90P03F Test Circuit/测试电路：
