CST2319 Description/概述：
CST2319是VDS=-40V,ID=-4A,RDSON=63mΩ的P通道40V快速切换Mosfet。
The CST2319 is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST2319 meet the RoHS and Green Product requirement with full function reliability approved.
CST2319 Features/特性：
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST2319 Product Summary/产品概览：
|
BVDSS
|
RDSON
|
ID
|
|
-40V
|
63mΩ
|
-4A
|

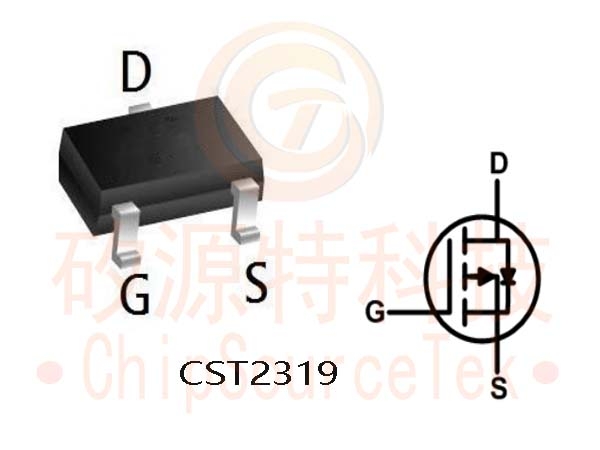

CST2319 Pin Configuration/引脚配置：

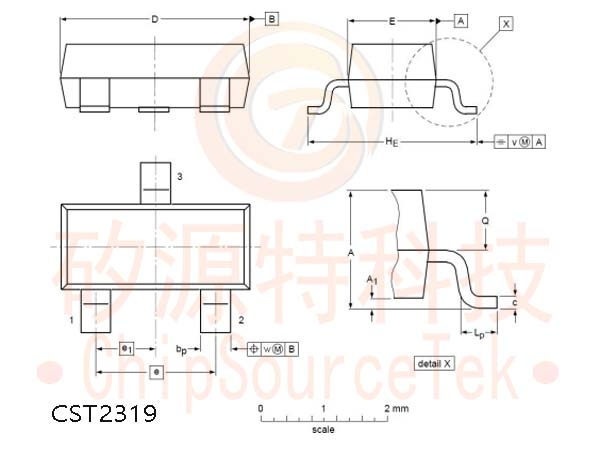

CST2319 Package outline dimensions/包装外形尺寸：
