PE3415F是VDS=-20V,ID=-5A，RDS(ON)<40mΩ，@VGS=-4.5V，RDS(ON)<60mΩ，@VGS=-2.5V的P-Channel MOSFET.
PE3415F的丝印是3415.PE3415F提供SOT-23封装.

The PE3415F uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE3415F概述：

PE3415F是VDS=-20V,ID=-5A，RDS(ON)<40mΩ，@VGS=-4.5V，RDS(ON)<60mΩ，@VGS=-2.5V的P-Channel MOSFET.PE3415F的丝印是3415.PE3415F提供SOT-23封装.

The PE3415F uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE3415F特性：

VDS = -20V, ID = -5A

RDS(ON) < 40mΩ @VGS=-4.5V

RDS(ON) < 60mΩ @VGS=-2.5V

EAS Rating: ≥4000V HBM

High Power and current handing capability

Lead free product is acquired

Surface Mount Package

PE3415F应用：

PWM applications

Load switch

Power management

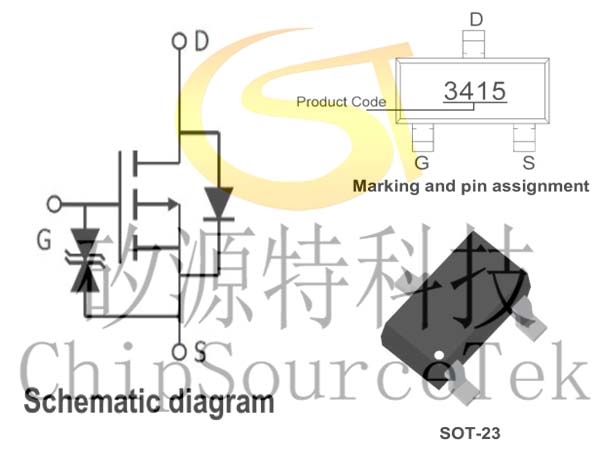

PE3415F典型应用及引脚：
