CST75N10F Description/概述：
CST75N10F是BVDSS=100V,RDSON=6.2mΩ,ID=75A的N-Ch快速切换Mosfets。提供PDFN5X6封装。
CST75N10F Features/特性：
Split Gate Trench MOSFET technology
Excellent package for heat dissipation
High density cell design for low RDS(ON)
CST75N10F Applications/应用：
DC-DC Converters
Power management functions
Synchronous-rectification applications
CST75N10F Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
100V
|
6.2mΩ
|
75A
|

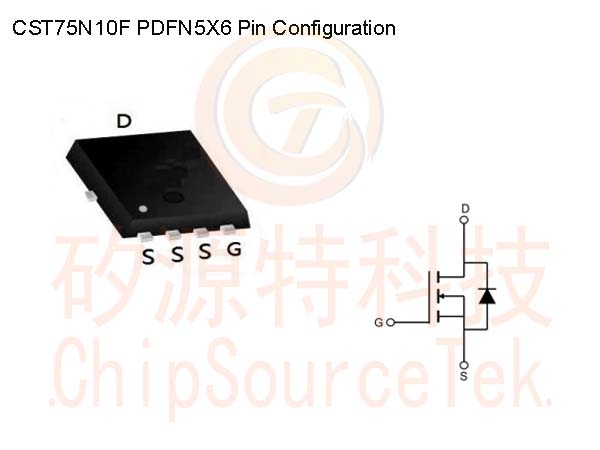

CST75N10F PDFN5X6 Pin Configuration：

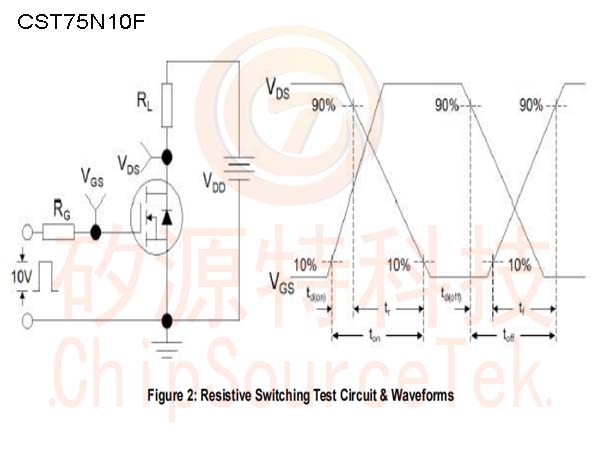

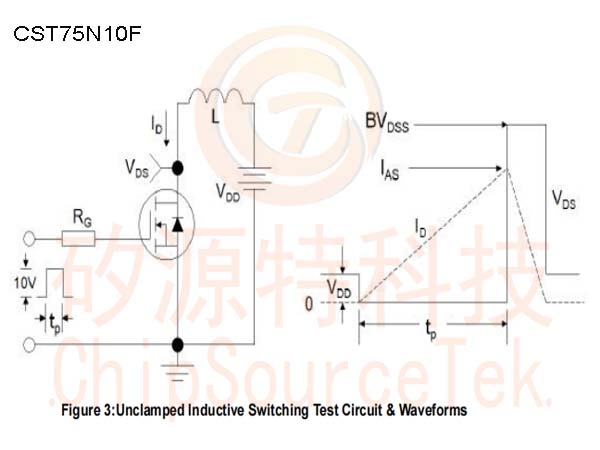

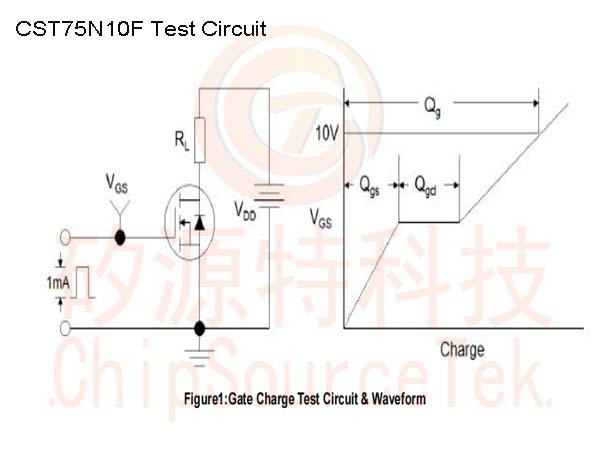

CST75N10F Test Circuit：
