CST60N03 Description/概述：
CST60N03是BVDSS=30V,ID=60A,RDSON=6.5mΩ的N-Ch快速切换MOSFETs。提供TO252封装。
The CST60N03 is the high cell density trenched Nch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST60N03 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST60N03 Features/特性：
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST60N03 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
30V |
6.5mΩ |
60A |

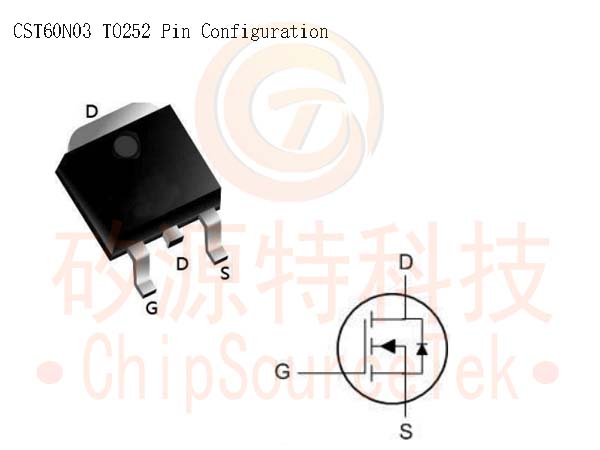

CST60N03 TO252 Pin Configuration:

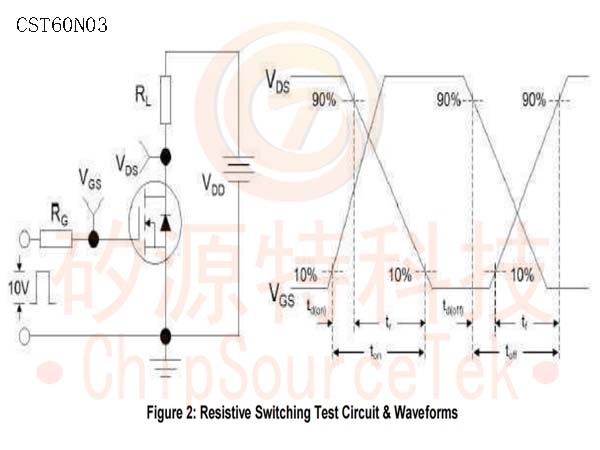

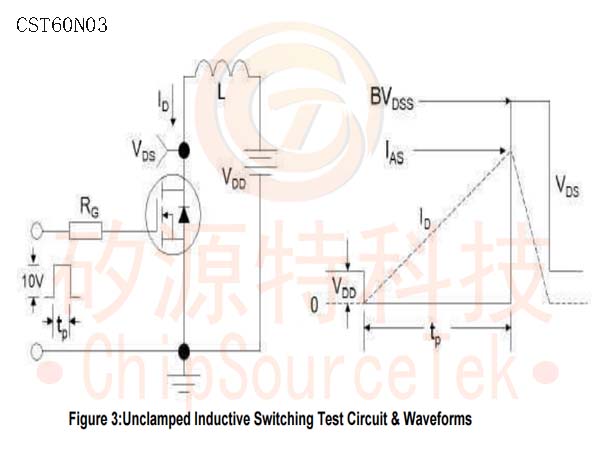

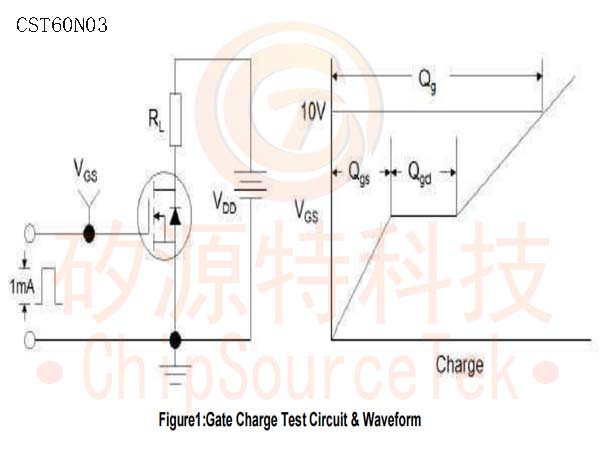

CST60N03 Test Circuit：
