HRH5N50ADNx Description/概述：
HRH5N50ADNx是VDS=500V,ID=2.5A,RDSON≤1.5Ω @Vgs=10V的N通道平面MOSFET。提供TO-252,TO-220F,TO220,TO251封装。
500V N-Channel Planar MOSFET
HRH5N50ADNx is HRM high voltage MOSFET family based on advanced planar stripe DMOS technology. This advanced MOSFET family has optimized on-state resistance, and also provides superior switching performance and higher avalanche energy strength. This device family is suitable for high efficiency switch mode power supplies.
HRH5N50ADNx Features/特性：
RDSON≤1.5Ω @Vgs=10V, Id=2.5A
Ultra Low gate Charge(typical 16.5nC)
Low Crss (typical 7.2pF)
Fast switching capability
100% avalanche tested
Improved dv/dt capability
HRH5N50ADNx Applications/应用：
Switch Mode Power Supply (SMPS)
Uninterruptible Power Supply (UPS)
Power Factor Correction (PFC) (PFC)
Charger

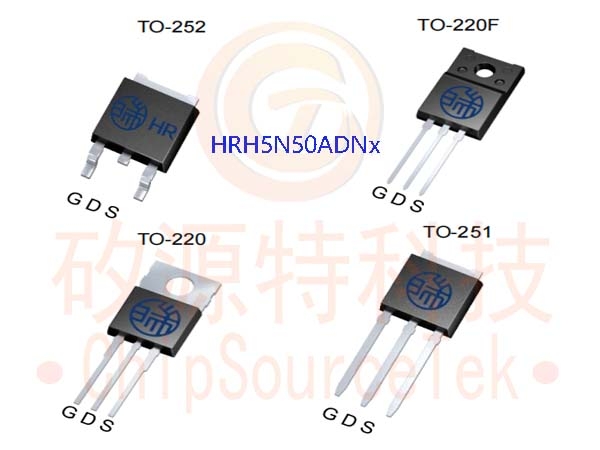

HRH5N50ADNx Package/封装：

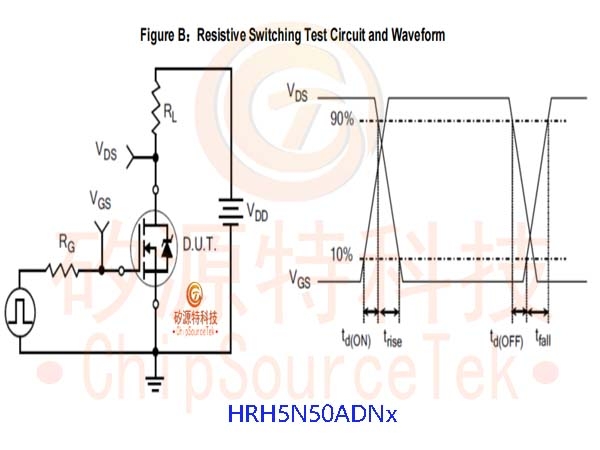

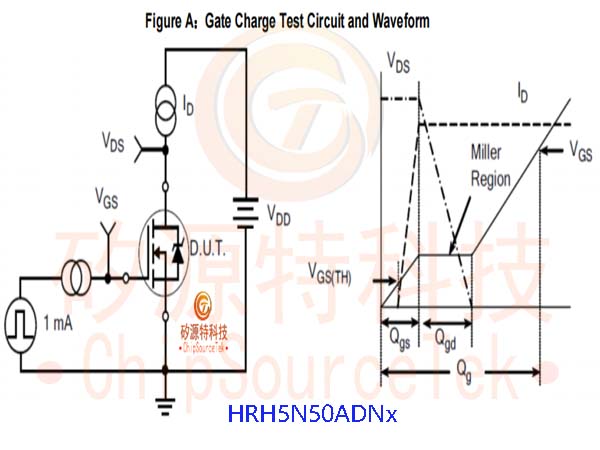

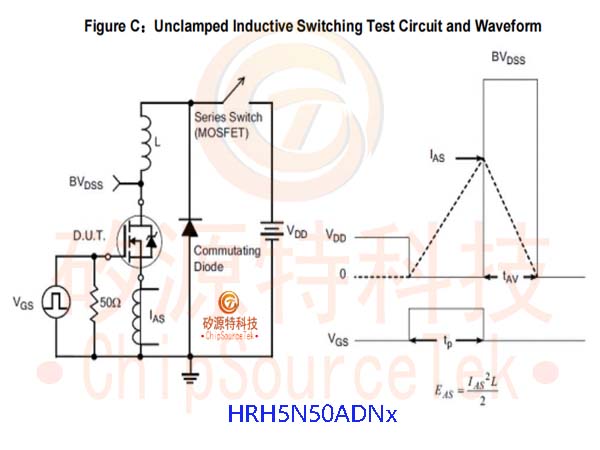

HRH5N50ADNx Test Circuit/测试电路:
HRH5N50ADNx Device Marking and Package Information：
|
Device
|
Package
|
Marking
|
|
HRH5N50ADND
|
TO-252
|
H5N50ADND
|
|
HRH5N50ADNF
|
TO-220F
|
H5N50ADNF
|
|
HRH5N50ADNP
|
TO-220
|
H5N50ADNP
|
|
HRH5N50ADNU
|
TO-251
|
H5N50ADNU
|
