CST30G30D Description/描述：
CST30G30D是N-Ch：BVDSS=30V,RDSON=9.5mΩ,ID=20A;P-Ch：BVDSS=-30V,RDSON=16mΩ,ID=-20A的N+P双通道快速切换Mosfets。提供PDFN3333-8L封装。
The CST30G30D is th high performance complementary N-ch and P-ch MOSFETs with high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST30G30D meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
CST30G30D Features/特性:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST30G30D Product Summary/产品概览：
|
BVDSS
|
RDSON
|
ID
|
|
30V |
9.5mΩ |
20A |
|
-30V |
16 mΩ |
-20A |

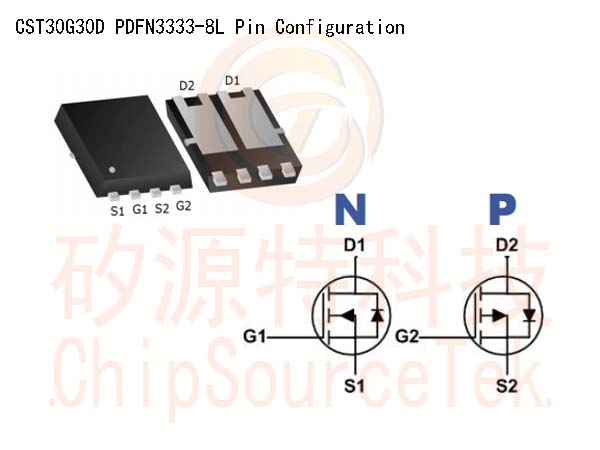

CST30G30D PDFN3333-8L Pin Configuration/引脚配置：

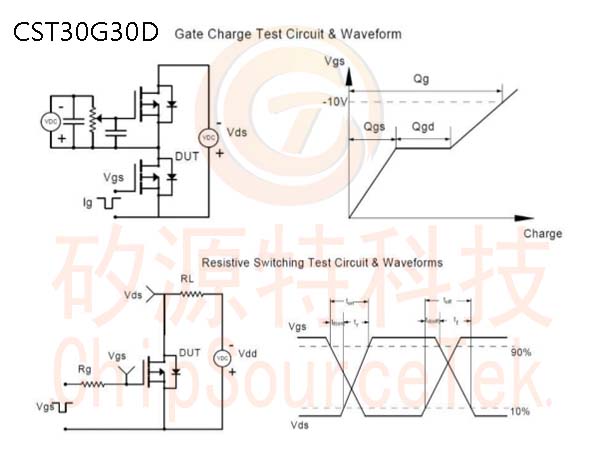

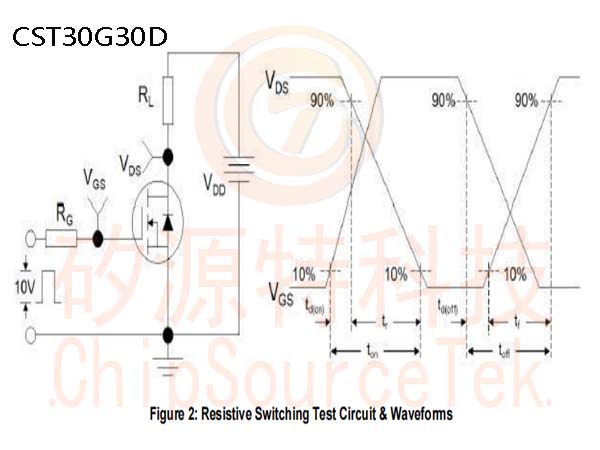

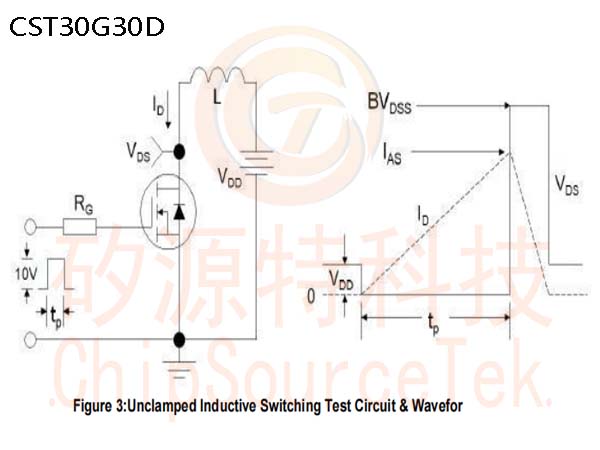

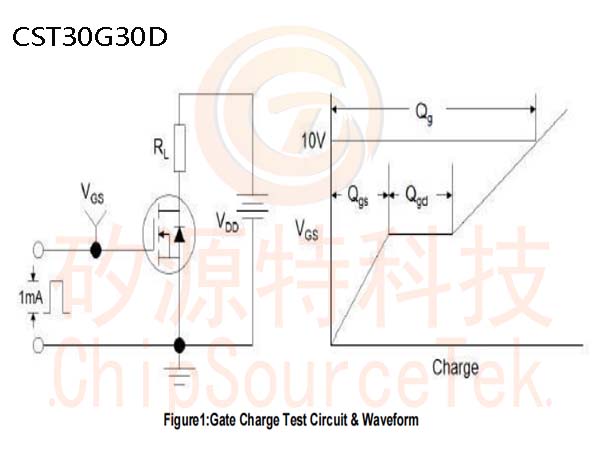

CST30G30D Test Circuit-N/测试电路-N:

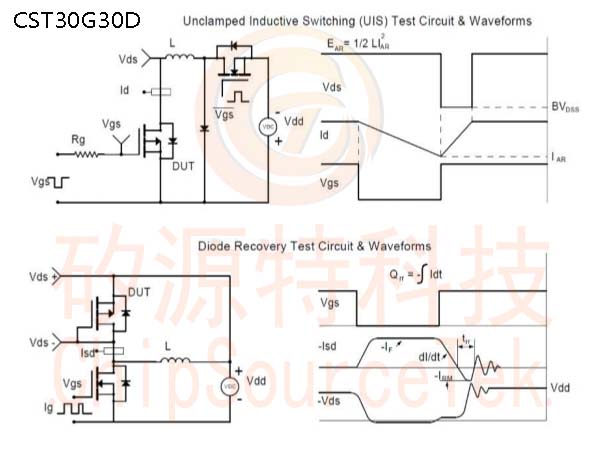

CST30G30D Test Circuit-P/测试电路-P:
