ME6207 Description/概述：
The ME6207 Series is a positive voltage regulator with a low dropout voltage,high output voltage accuracy,and low crrent consumption developed based on CMOS technology.
A built-in low on-resistance transistor provides a low dropout voltage and large output current, a built-in overcurrent protector prevents the load current from exceeding the current capacitance of the output transistor. An ON/OFF circuit ensures a long battery life. Compared with the voltage regulators using the conventional CMOS process, a larger variety of capacitors are available, including small ceramic capacitors.
ME6207 Features/特性：
Maximum Output Current:
800mA（VIN≥VOUT(T)+1.0V）
Dropout Voltage:
100mV@ IOUT =300mA,VOUT =5.0V
Operating Voltage Range: 2V～6.5V
Highly Accuracy: ±1％
Low Current Consumption:
During Operation: 82uA（TYP.）
During Shutdown:0.1uA（TYP.）
High Ripple Rejection: 65dB@1KHz (ME6207C50)
Line Regulation: 0.05％（TYP.）
ME6207 Applications/应用：
Power supply for DVD and CD-ROM drives
Power supply for personal communication device
Power supply for battery-powered devices
Power supply for note PCs
ME6207 Package/封装：
3-pin SOT89-3
5-pin SOT89-5,SOT23-5,TO252-5

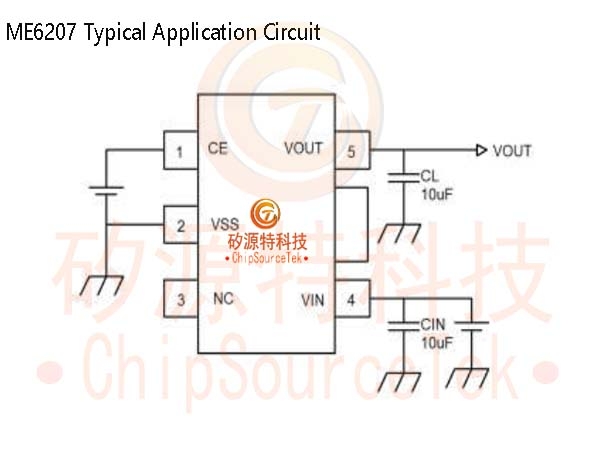

ME6207 Typical Application Circuit/典型应用电路：

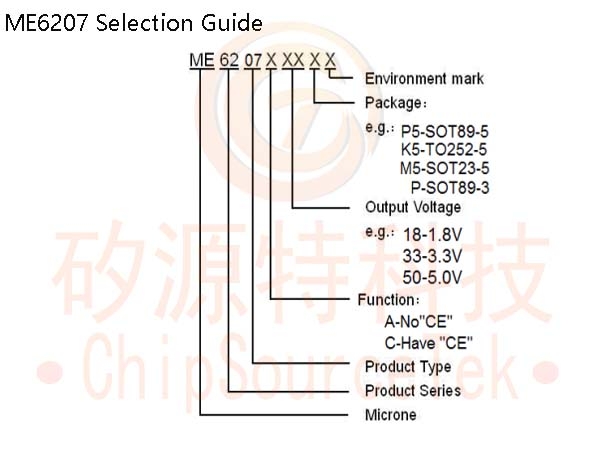

ME6207 Selection Guide/选择指南：
|
product series
|
product description
|
|
ME6207A50PG
|
VOUT =5.0V；no enable function；Package：SOT89-3
|
|
ME6207C18M5G
|
VOUT =1.8V； have enable function；Package：SOT23-5
|
|
ME6207C33M5G
|
VOUT =3.3V； have enable function；Package：SOT23-5
|
|
ME6207C50K5G
|
VOUT =5.0V； have enable function；Package：TO252-5
|
|
ME6207C50M5G
|
VOUT =5.0V； have enable function；Package：SOT23-5
|
|
ME6207C50P5G
|
VOUT =5.0V； have enable function；Package：SOT89-5
|

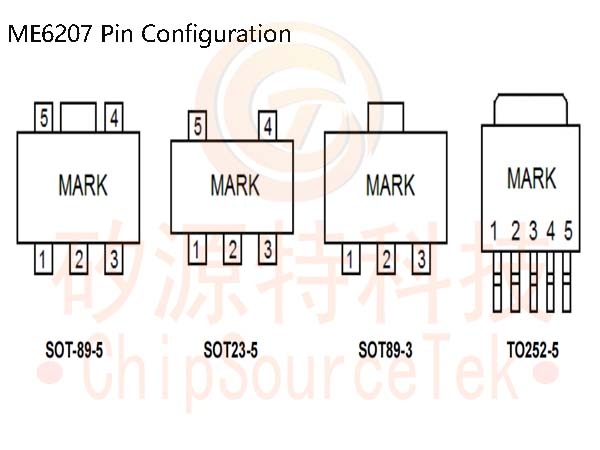

ME6207 Pin Configuration/引脚配置：

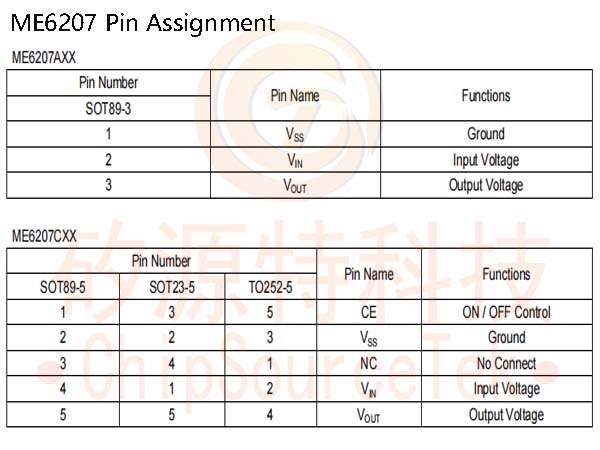

ME6207 Pin Assignment/管脚分配：

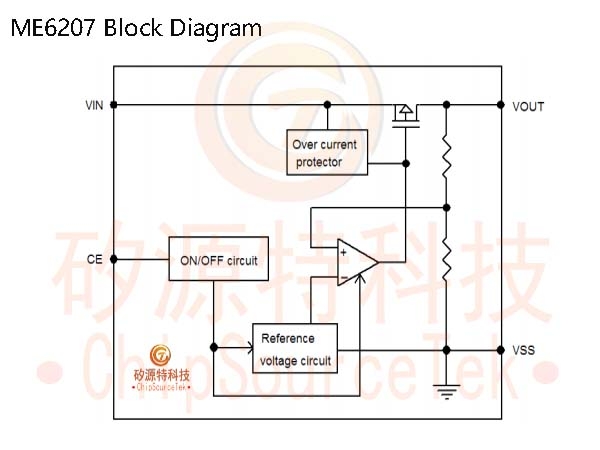

ME6207 Block Diagram/结构框图：
