The OCH4002 is Unipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology. It is comprised of one Hall plate and a CMOS output drive,mainly designed for battery-operation. The total power consumption in normal operation is typically 5.6μW with a 2.8V power source. South/North poles of sufficient strength will turn the output on. The output will be turned off under no magnetic field.

    The OCH4002 is available in SIP-3L, SOT23-3L,SOT553, DFN1216-4L-EP Package. Operating temperature range of the CST4002 is from -40°C to 85°C.

    OCH4002是单极霍尔效应传感器IC由混合信号CMOS技术制造。是的包括一个霍尔板和CMOS输出驱动器，主要设计用于电池操作。总功率正常运行时的功耗通常为5.6μW2.8V电源。足够的南极/北极强度将打开输出。输出将为在没有磁场的情况下关闭。

    OCH4002可在SIP-3L、SOT23-3L、SOT33-3L和SOT23-3R中获得，SOT553，DFN1216-4L-EP封装。操作CST4002的温度范围从-40°C到85°C。

2μA Micro power consumption ideal for battery powered applications

Input VoltageRange:1.65V to 5.5V

Very High Sensitivity Hall Sensor

Chopper stabilized amplifier stage

Good RF noise immunity

CMOS Output

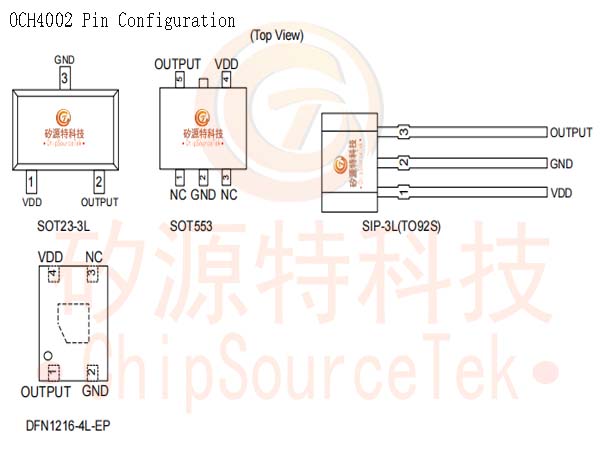

SIP-3L, DFN1216-4L-EP, SOT23-3L, & SOT553 package

Solid State Switch

Bluetooth Headset

OCH4002 Ordering Information：

Part Number	Package Type	Packing Qty	BOP (Gauss)	BRP (Gauss)	Temperature	Eco Plan	Lead
OCH4002MD	SIP-3L	1000pcs/Bag	40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu
OCH4002NMD	SIP-3L	1000pcs/Bag	-40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu
OCH4002WAD	SOT23-3L	3000pcs/Reel	40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu
OCH4002NWAD	SOT23-3L	3000pcs/Reel	-40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu
OCH4002STAD	SOT553	3000pcs/Reel	40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu
OCH4002NSTAD	SOT553	3000pcs/Reel	-40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu
OCH4002SEV4AD	DFN1216-4L-EP	3000pcs/Reel	40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu
OCH4002NEV4AD	DFN1216-4L-EP	3000pcs/Reel	-40(Typ.)	30(Typ.)	-40~ +85°C	ROHS	Cu

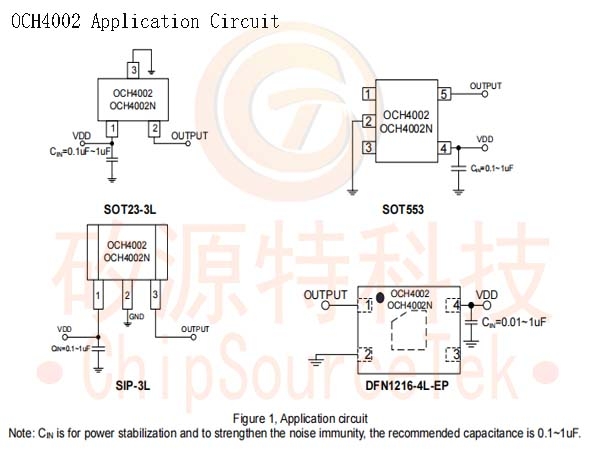

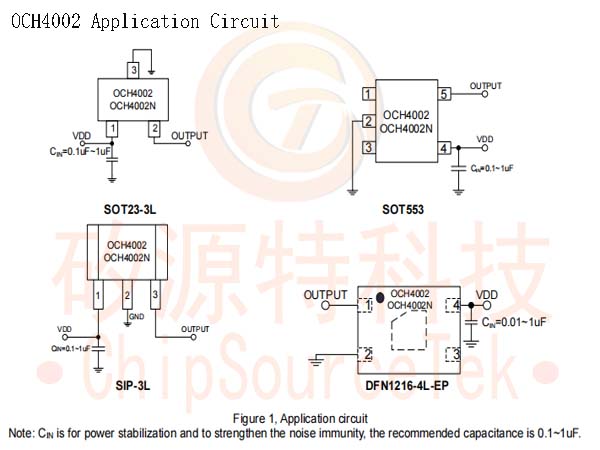

OCH4002 Application Circuit:
