RY8320 General Description:
The RY8320 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous current over a wide input supply range,with excellent load and line regulation.
The RY8320 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
RY8320 Features:
Wide 4.5V to 30V Operating Input Range
2A Continuous Output Current
500KHz Switching Frequency
Output Voltage Range from 0.6V to 5V
Short Protection with Hiccup-Mode
Built-in Over Current Limit
Built-in Over Voltage Protection
PFM Mode for High Efficiency in Light Load
Internal Soft-Start
110mΩ/70mΩ Low RDS(ON) Internal Power MOSFETs
Output Adjustable from 0.6V
No Schottky Diode Required
Integrated internal compensation
Thermal Shutdown
Available in SOT23-6 Package
-40°C to +85°C Temperature Range
RY8320 Applications:
Digital Set-top Box (STB)
Tablet Personal Computer (Pad)
Flat-Panel Television and Monitor
Wi-Fi Router / AP
Digital Video Recorder (DVR)
Portable Media Player (PMP)
Cable Modem / XDSL
General Purposes

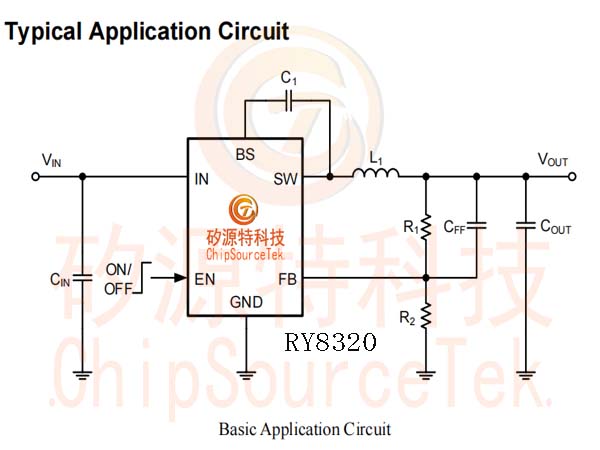

RY8320 Typical Application Circuit:

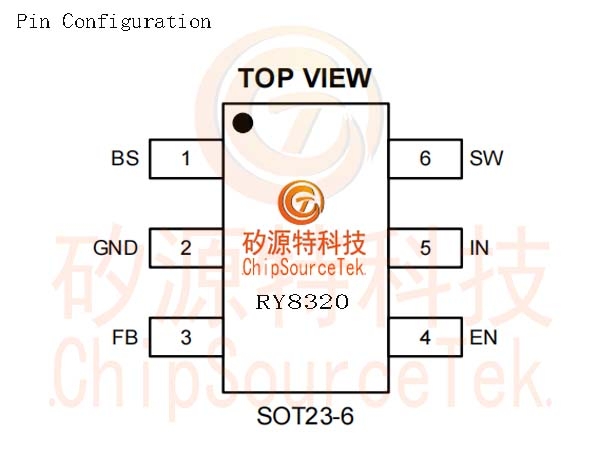

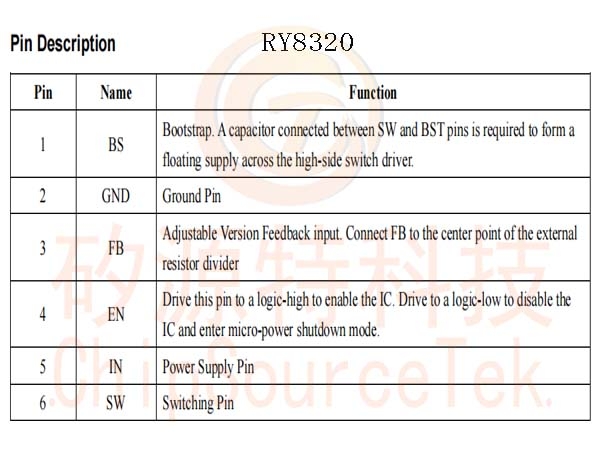

RY8320 Pin Description:
RY8320 Order Information (1):
|
Marking
|
Part No.
|
Model
|
Description
|
Package
|
T/R Qty
|
|
GDYLL |
70301510 |
RY8320 |
RY8320 Buck, 4.5-30V, 2A, 500KHz, VFB 0.6V, SOT23-6 |
SOT23-6 |
3000PCS |

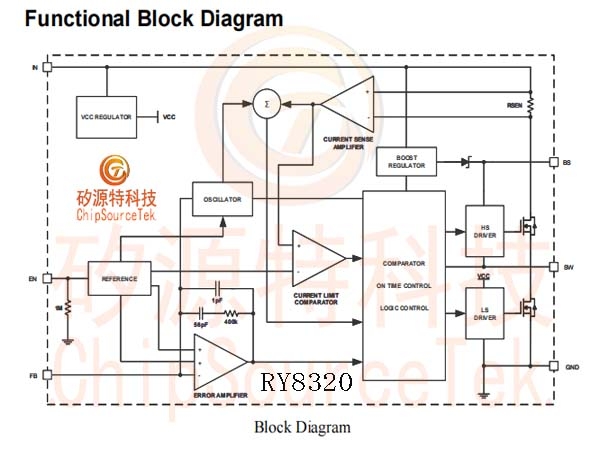

RY8320 Functional Block Diagram:
