RY9321 General Description:
The RY9321 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT force-CCM control operation provides very fast transient response and easy loop design as well as very tight output regulation.
The RY9321 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
RY9321 Features:
Wide 4.5V to 28V Operating Input Range
2A Continuous Output Current
500K/1MHz Switching Frequency
ECOT Mode Control with Fast Transient Response
Built-in Over Current Limit
Built-in Over Voltage Protection
Continuous Conduction Mode (CCM)
Internal Soft-Start
100mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs
Output Adjustable from 0.6/0.8/0.765V
No Schottky Diode Required
Short Protection with Hiccup-Mode
Integrated internal compensation
Thermal Shutdown
Available in SOT23-6 Package
-40°C to +85°C Temperature Range
RY9321 Applications:
Automotive Systems
Network Terminal Equipment
Security Monitoring Camera
Printer Systems
Industrial Power Systems
Distributed Power Systems

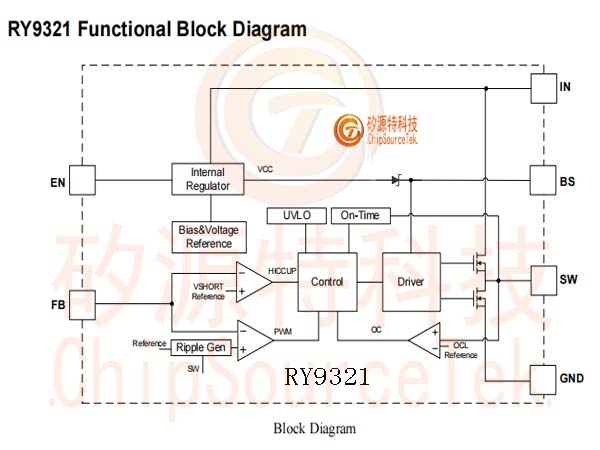

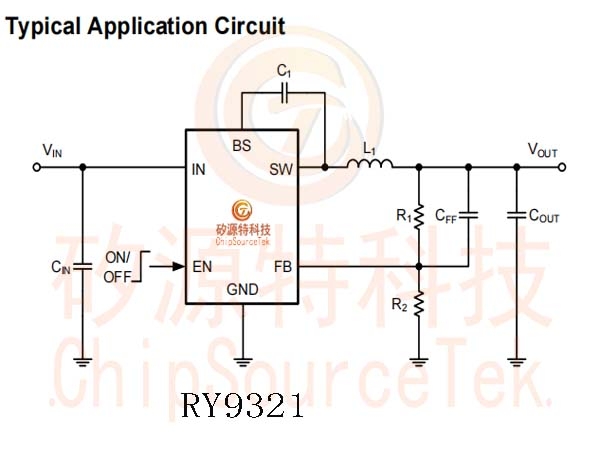

RY9321 Typical Application Circuit:

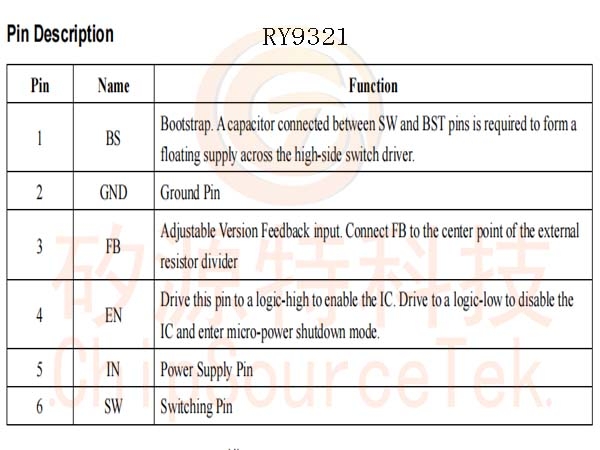

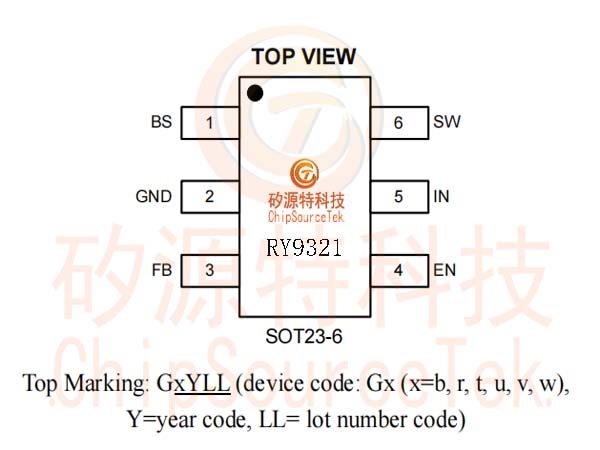

RY9321 Pin Description:
RY9321 Order Information (1):
|
Marking
|
Part No.
|
Model
|
Description
|
Package
|
T/R Qty
|
|
GbYLL
|
70301521
|
RY9321AT6
|
RY9321AT6 ECOT Force-CCM Buck, 4.5-
28V, 2A, 500KHz, VFB 0.6V, SOT23-6
|
SOT23-6
|
3000PCS
|
|
GrYLL
|
70301522
|
RY9321BT6
|
RY9321BT6 ECOT Force-CCM Buck, 4.5-
28V, 2A, 500KHz, VFB 0.8V, SOT23-6
|
SOT23-6
|
3000PCS
|
|
GtYLL
|
70301523
|
RY9321CT6
|
RY9321CT6 ECOT Force-CCM Buck, 4.5-
28V, 2A, 500KHz, VFB 0.765V, SOT23-6
|
SOT23-6
|
3000PCS
|
|
GuYLL
|
70301524
|
RY9321HAT6
|
RY9321HAT6 ECOT Force-CCM Buck, 4.5-
28V, 2A, 1MHz, VFB 0.6V, SOT23-6
|
SOT23-6
|
3000PCS
|
|
GvYLL
|
70301525
|
RY9321HBT6
|
RY9321HBT6 ECOT Force-CCM Buck, 4.5-
28V, 2A, 1MHz, VFB 0.8V, SOT23-6
|
SOT23-6
|
3000PCS
|
|
GwYLL
|
70301526
|
RY9321HCT6
|
RY9321HCT6 ECOT Force-CCM Buck, 4.5-
28V, 2A, 1MHz, VFB 0.765V, SOT23-6
|
SOT23-6
|
3000PCS
|
