LP6460 General Description:
The LP6460 contains an independent 500KHzconstant frequency, current mode, PWM step-down converters. The converter integrates a main switch anda synchronous rectifier for high efficiency without an external Schottky diode. The LP6460 is ideal for powering portable equipment that runs from a 2cell Lithium-Ion (Li+) battery. Theconverter can supply 2000mA of load current from a 4.15V to 16V input voltage. The output voltage can be regulated as low as 0.6V.
The LP6460 is available in a SOT23-6 package and is rated over the -40℃ to 85℃ temperature range.
LP6460 Features:
Input Voltage Range: 4.15V to 16V
Output Voltage Range: 0.6V to 12V
2000mA Load Current on Channel
Up to 96% Efficiency
<10uAShutdown Current
500KHz Switching Frequency
Short Circuit Protection
Thermal Fault Protection
SOT23-6 Package
RoHS Compliant and 100% Lead (Pb)-Free
LP6460 Applications:
Portable Media Players
Cellular and Smart mobile phone
PDA/DSC
GPS Applications

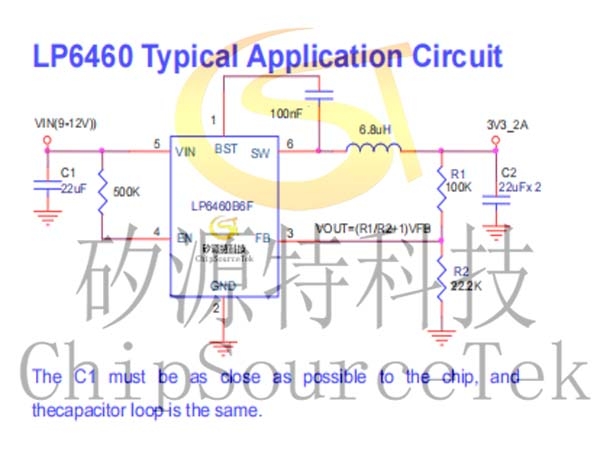

LP6460 Typical Application Circuit:

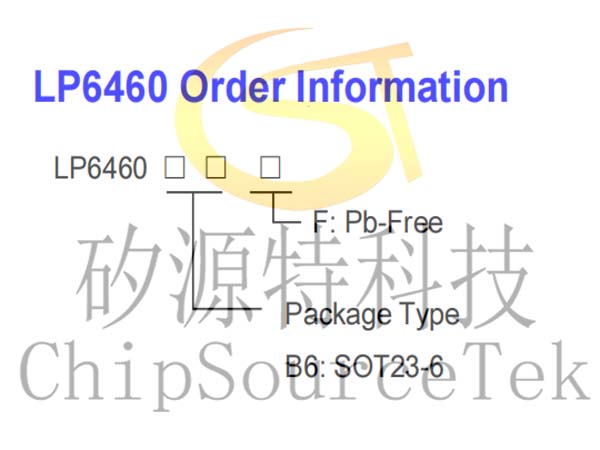

LP6460 Order Information:
LP6460 Marking Information:
|
Device
|
Marking
|
Package
|
Shipping
|
|
LP6460B6F
|
LPS
A6YWX
|
SOT23-6
|
3K/REEL
|
| Y: Year code. W: Week code. X: Batch numbers. | |||

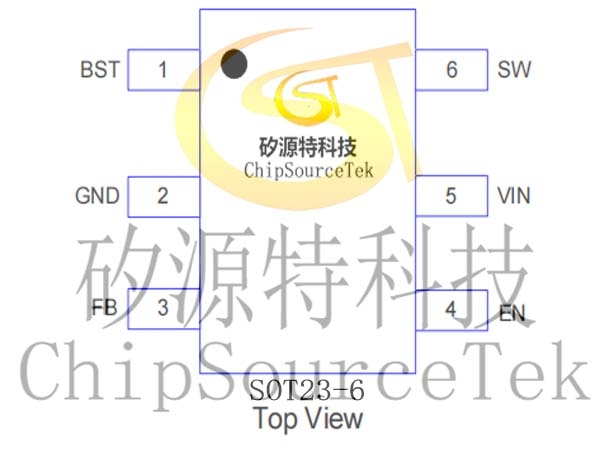

LP6460 Functional Pin Description:

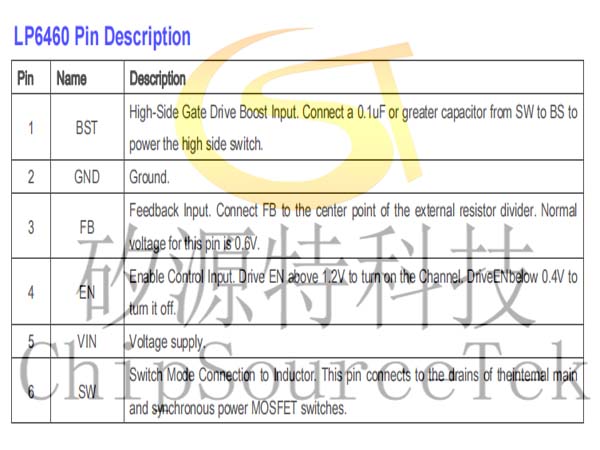

LP6460 Pin Description:

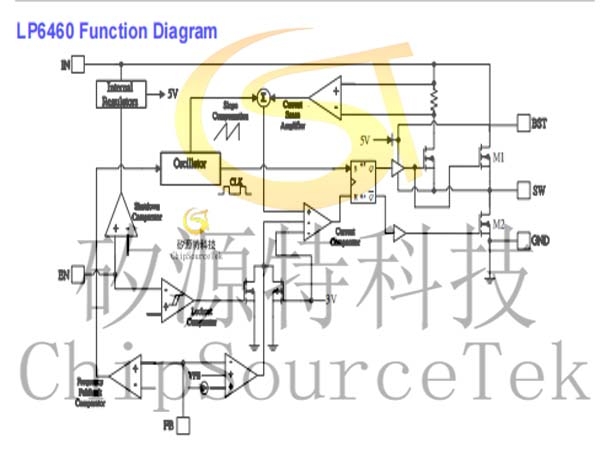

LP6460 Function Diagram:
