TRSP5006A General Descriptions：
TRSP5006A series are 4-bits micro-controller which could play 4 channel melody or 4 channel ADPCM with PWM direct drive circuit. PWM resolution is 8/10/12 bits. They includes a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 8.192 (±3%) MHz. This chip operates over a wide voltage range of 2.0V~5.5V. It contains program ROM (PROM) and data ROM (DROM) inside.
The maximum program ROM is 4K words and maximum data ROM size is 33K byte. The maximum working SRAM is (64+2) nibbles. It is provided with total 4 software programmable I/O Ports.
TRSP5006A Features：
Operating voltage: 2.0V to 5.5V
MCU Operation frequency: 8.192MHz
Memory Size
Program ROM size: 4K*12-bits OTP type
Data ROM size: 18K*8-bits OTP type
SRAM size: 64*4 bits
User register: 2*4 bits
Wakeup function for power-down mode:
HALT mode wakeup source: Port A can wake-up from HALT mode to NORMAL mode and executing wake-up sub-routine program.
4 input/output pins: Port A can be defined as input or output port bit by bit.
Three reset condition:
Low voltage reset. (LVR = 2.0V)
Power on reset.
Watch dog timer overflow.
One internal interrupt sources:
PWM interrupt.
WDT
Watch dog timer, can enabled/disabled by option.
WDT period is 256*256*16/Fsys. (WDT period is 0.13 sec for system clock=8.192MHz)
Audio output:
Support PWM or DAC mode by option.
Support 8/10/12 bits.
Support option set for pull down resistor 1M, 50K or 220K Ohm, low voltage reset…etc.
Oscillator fuse option ±3%, temperature & voltage compensation.
Support security option (1 bit) for read inhibition.
Support 16-levels LVD function.

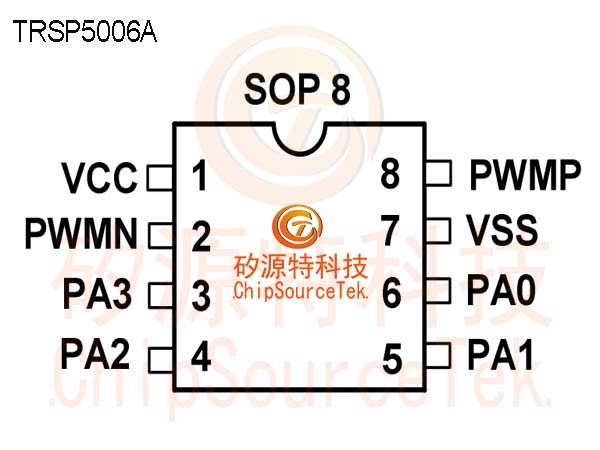

TRSP5006A provides SOP8：

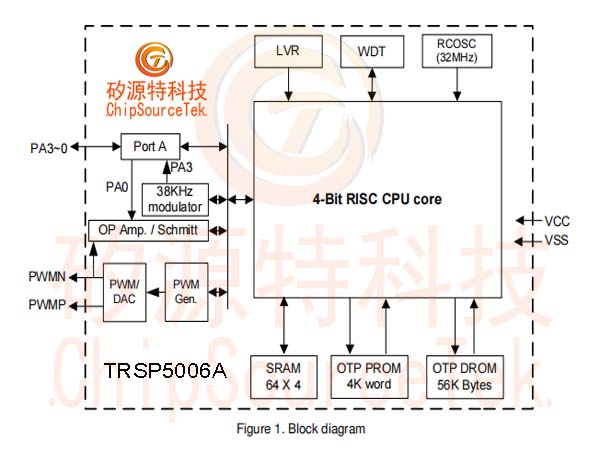

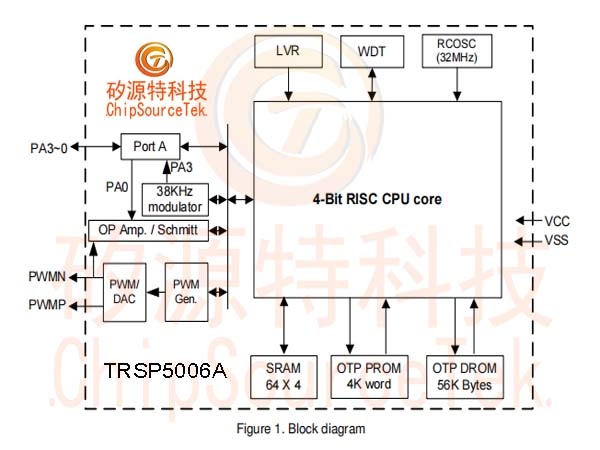

TRSP5006A Block Diagram：

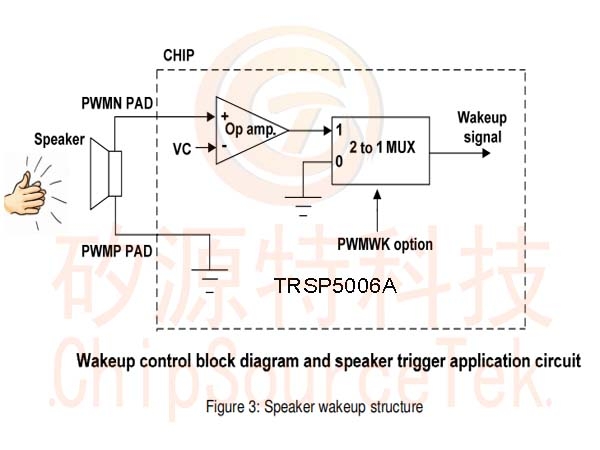

TRSP5006A Speaker wakeup structure：

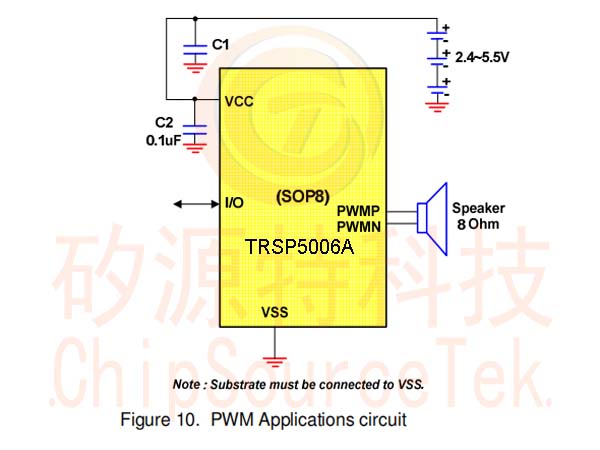

TRSP5006A The Application Circuit：

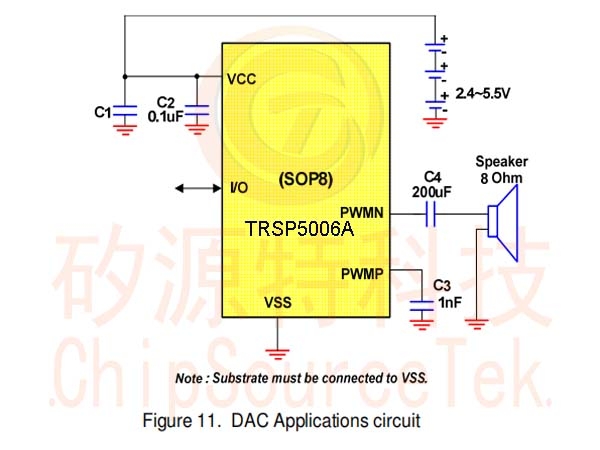

TRSP5006A DAC Selected by option:
