AXS5106L概述/Description：
AXS5106L是一种高性能的自电容器触摸控制器，支持各种自电容器传感器模式，具有优良的信噪比，在保持超低功耗的同时实现高精度和线性度。它非常适合用于便携式移动设备，如智能手表和智能手环。
AXS5106L is a high-performance self-capacitor touch controller that supports various self-capacitor sensor patterns and has excellent signal-to-noise ratio to achieve high accuracy and linearity while maintaining ultra-low power consumption. It is very suitable for portable mobile devices such as smart watches and smart bracelets.
AXS5106L特性/Features：
Key features
Highly sensitive self-capacitance detection technology
Support up to 13 channels
The maximum screen size is 3 inches
Support GF, GG, OGS and other screen structure
Support various ITO Sensor patterns (triangles, squares, etc.)
Support three work modes: Normal mode, Idle mode, Sleep mode
The sleep mode power consumption is as low as 8uA, the Idle mode consumption is as low as 400uA,and the normal mode power consumption is as low as 2mA
Touch point report rate up to 120Hz;
Auto calibration
Supports I2C interfaces
Support online programming
Single power supply 2.7V to 3.6V
Package：QFN20 3x3x0.55mm
The AXS5106L is dedicated for self-capacitive touch panel; its typical applications are listed as follows:
Smart watch, Smart bracelet
GPS navigator
Digital camera
Game consoles
Portable media play

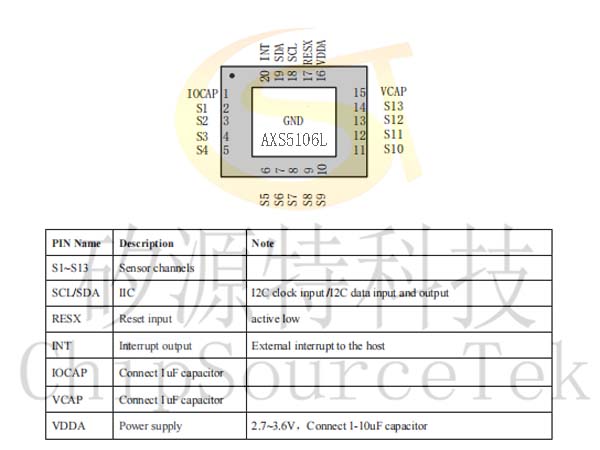

AXS5106L引脚布局/Pin layout：
AXS5106L结构框图/Block diagram：

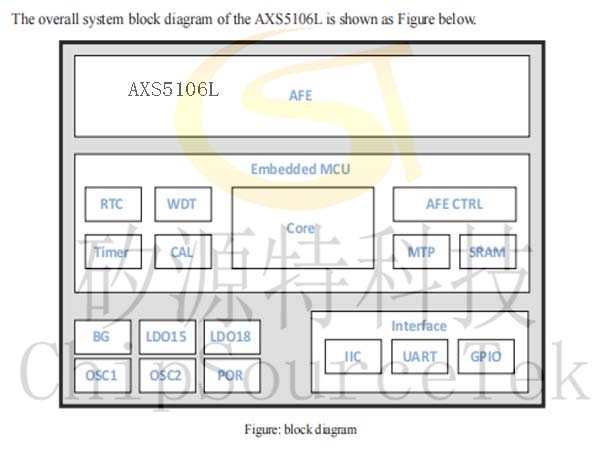

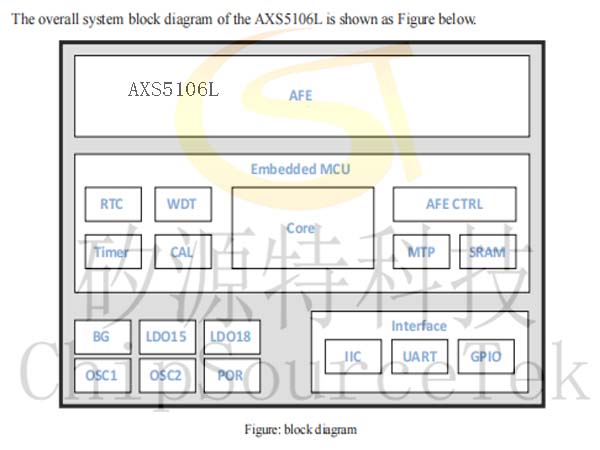

The overall system block diagram of the AXS5106L is shown as Figure below.
AXS5106L工作模式/Work modes：
There are three work modes available:
-Normal mode
-Idle mode
-Sleep mode

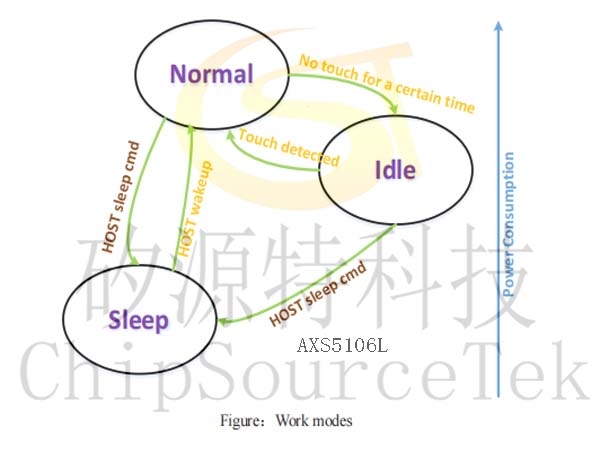

Work modes switching conditions are shown as below:
AXS5106L订购信息/Ordering information：
|
Product
Series
|
Package
Type
|
Packing
Method
|
Ordering
Number
|
Minimum Order
Quantity
|
|
AXS5106L
|
20-Pin 3x3x0.55mm
QFN
|
TR
|
AXS5106L
|
5000
|
