CST30P06F Description:
CST30P06F is a fast switching Mosfet for P-channel with BVDSS=-60V, RDSON=24mΩ, ID=-30A. Provide PDFN5060-8L packaging.
The CST30P06F is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST30P06F meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST30P06F Feature：
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST30P06F Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-60V |
24mΩ |
-30A |

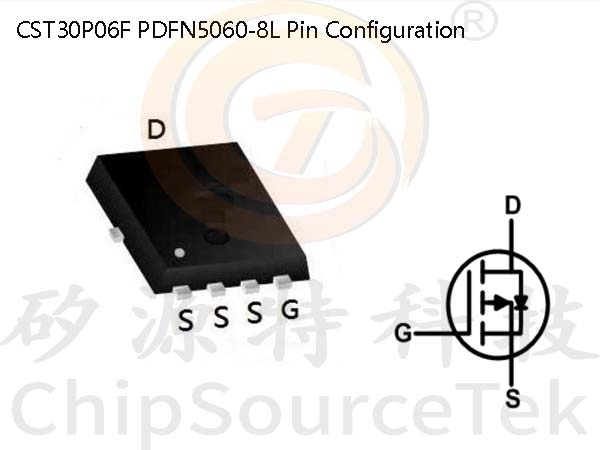

CST30P06F PDFN5060-8L Pin Configuration:

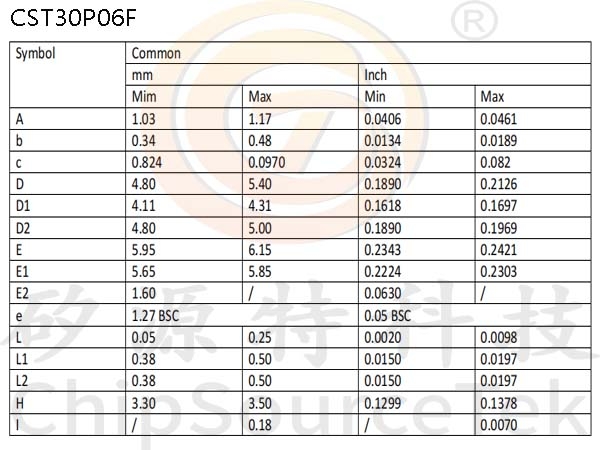

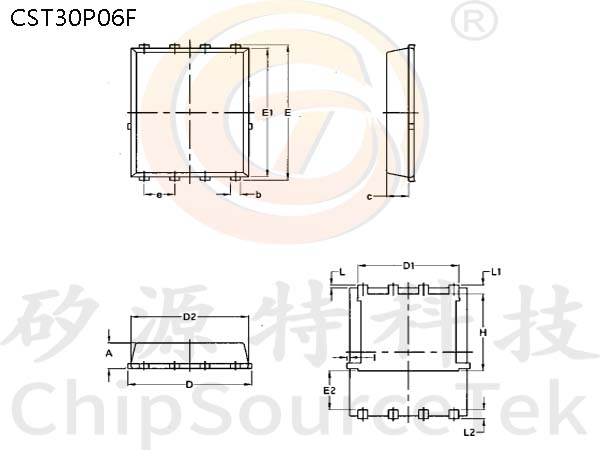

CST30P06F Package Mechanical Data-PDFN5060-8L-JQ Single:
