CST20P80G Description:
CST20P80G is a fast switching Mosfet for P-channel with BVDSS=-18V, RDSON=2.4mΩ, ID=-85A. Provide PDFN5060-8L packaging.
The CST20P80G is the high cell density trenched P-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST20P80G meet the RoHS and Green Product requirement with full function reliability approved.
CST20P80G Features:
Super Low Gate Charge
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST20P80G Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-18V |
2.4mΩ |
-85A |

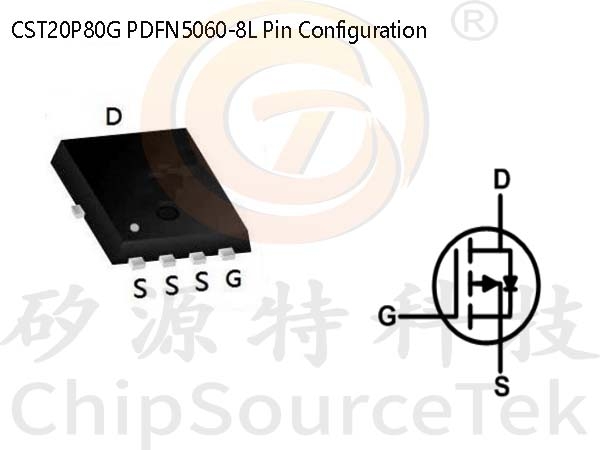

CST20P80G PDFN5060-8L Pin Configuration:

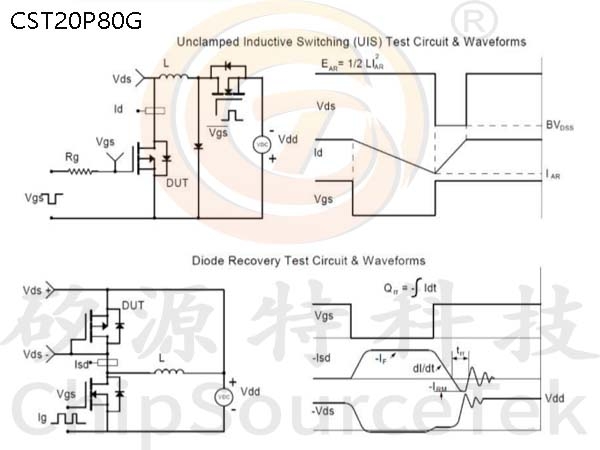

CST20P80G Test Circuit:

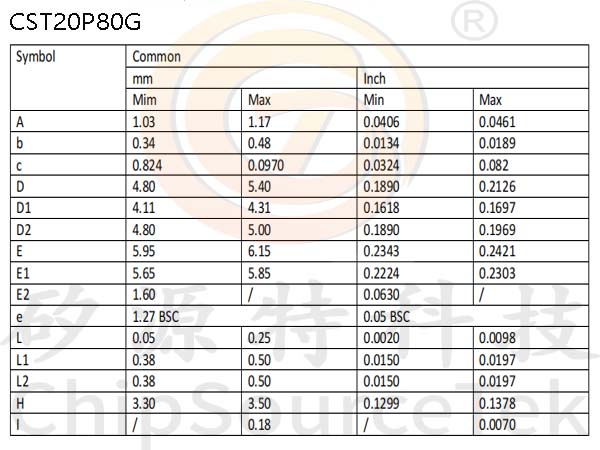

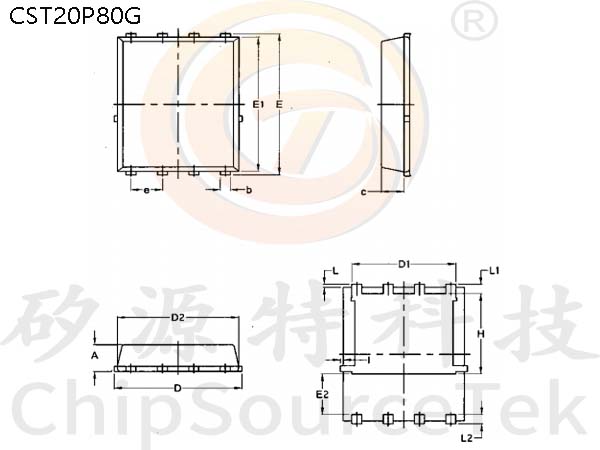

CST20P80G Package Mechanical Data-PDFN5060-8L- Single:
