CST15P06 Description:
CST15P06 is a fast switching Mosfet for P-channel with BVDSS=-60V, RDSON=70mΩ, ID=-15A. Provide TO252 packaging.
The CST15P06 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST15P06meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST15P06 Feature:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST15P06 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-60V |
70mΩ |
-15A |

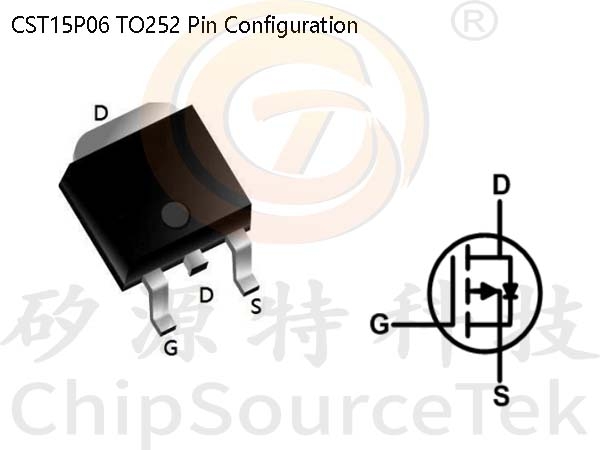

CST15P06 TO252 Pin Configuration:

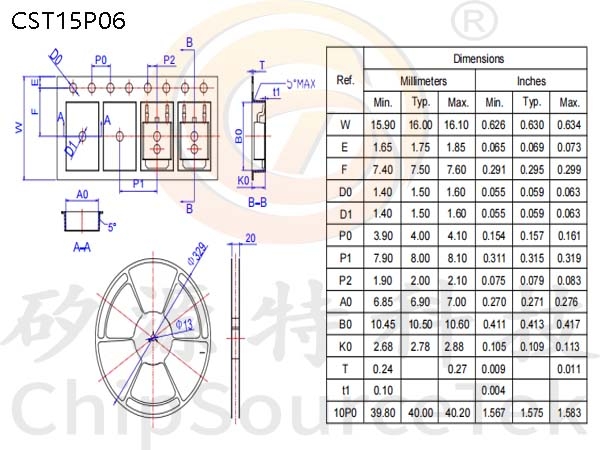

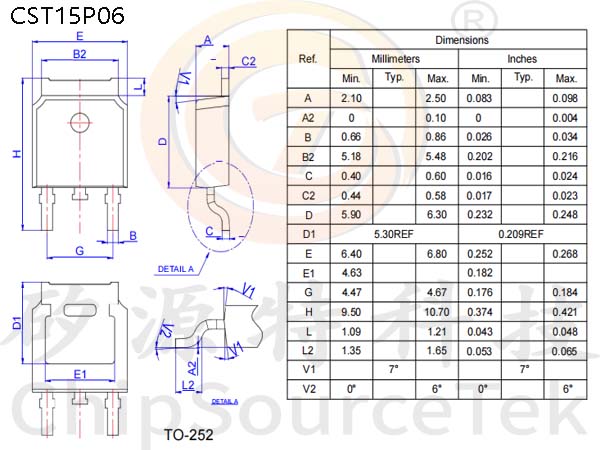

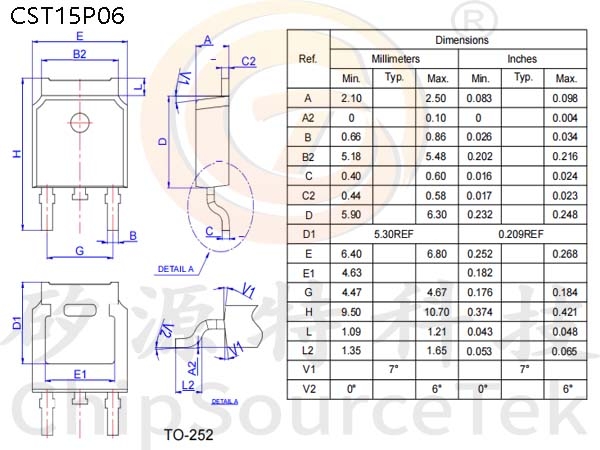

CST15P06 Package Mechanical Data TO-252-4R:
