CST30P03F Description:
CST30P03F is a fast switching Mosfet for P-channel with BVDSS=-30V, RDSON=14mΩ, ID=-30A. Provide PDFN5060-8L packaging.
The CST30P03F is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST30P03F meet the RoHS and Green Product requirement with full function reliability approved.
CST30P03F Feature：
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST30P03F Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
-30V |
14mΩ |
-30A |

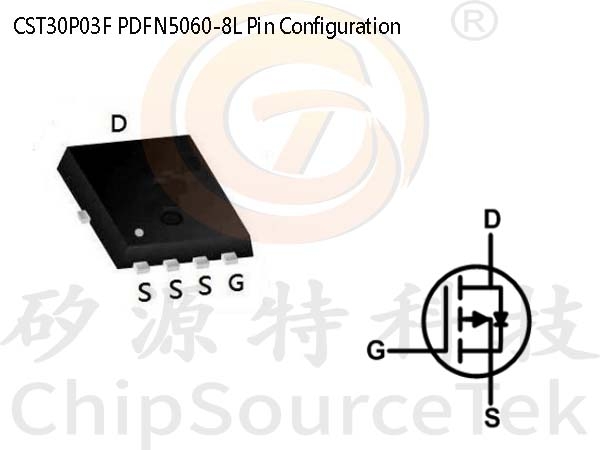

CST30P03F PDFN5060-8L Pin Configuration：

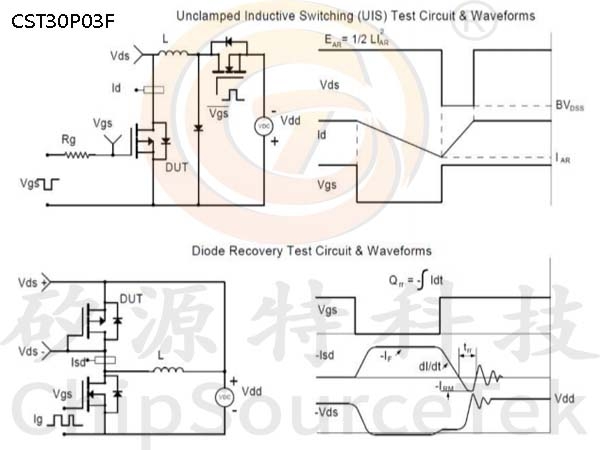

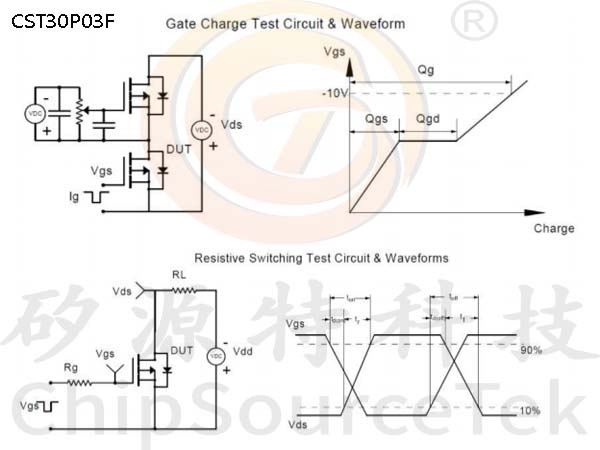

CST30P03F Test Circuit & Waveform：

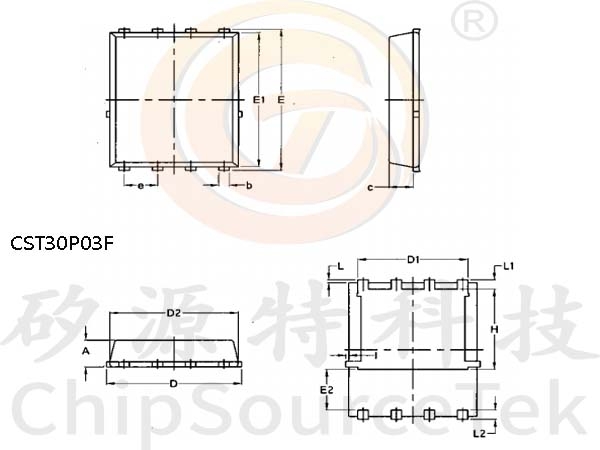

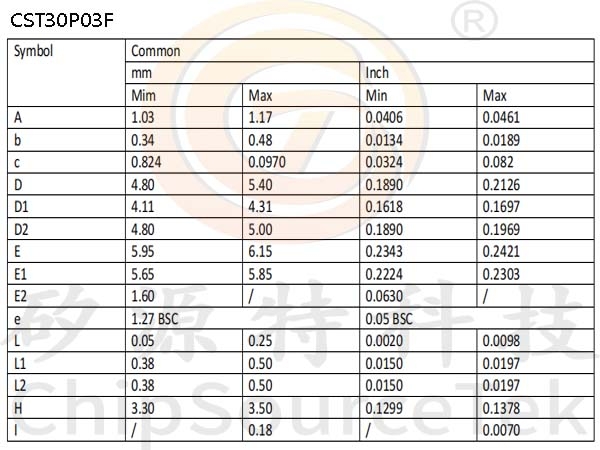

CST30P03F Package Mechanical Data-PDFN5060-8L-JQ Single：
