CST3415E Description:
CST3415E is a fast switching Mosfet for P-channel with BVDSS=-20V, RDSON=29mΩ, ID=-5.0A. Provide SOT23 packaging.
The CST3415E is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST3415E meet the RoHS and Green Product requirement with full function reliability approved. ESD Rating: 2500V HBM
CST3415E Feature：
Super Low Gate Charge
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST3415E Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
29mΩ |
-5.0A |

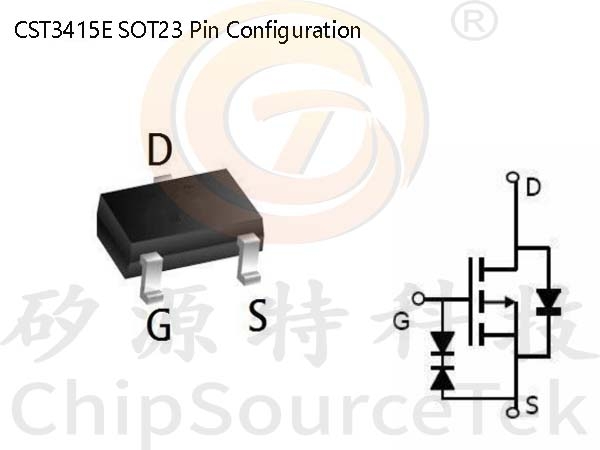

CST3415E SOT23 Pin Configurations:

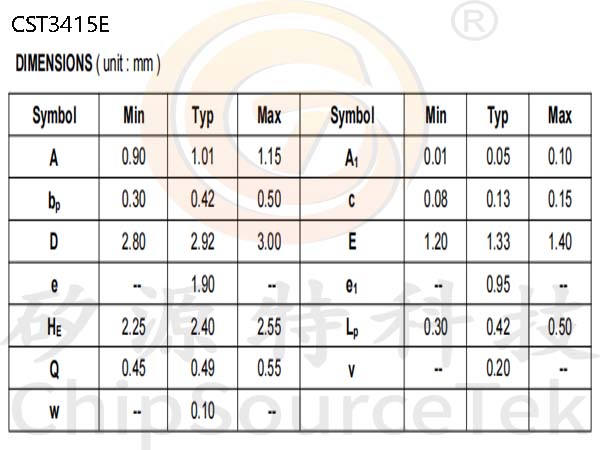

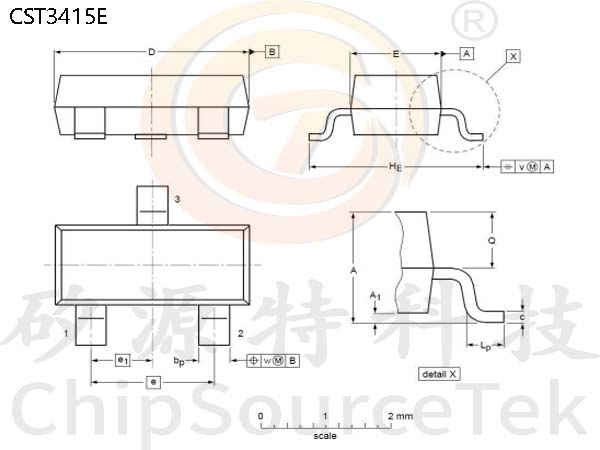

CST3415E SOT23 Mechanical Data：
