CST2305B Description:
CST2305B is a P-channel fast switching Mosfet with BVDSS=-20V, RDSON=30mΩ, ID=-6.0A. Provide SOT23 packaging.
The CST2305B is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST2305B meet the RoHS and Green Product requirement with full function reliability approved.
CST2305B Feature:
Super Low Gate Charge
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST2305B Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
30mΩ |
-6.0A |

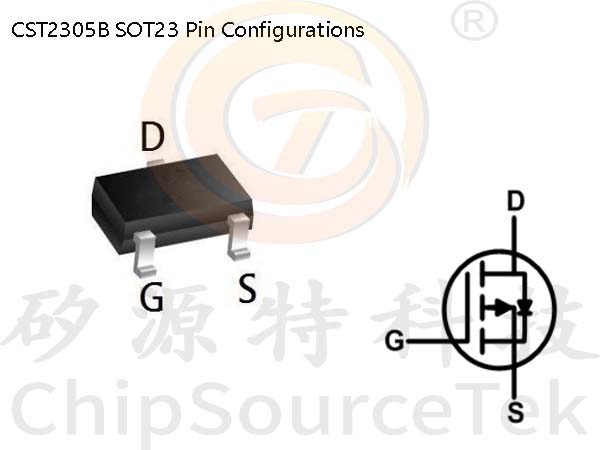

CST2305B SOT23 Pin Configuration：

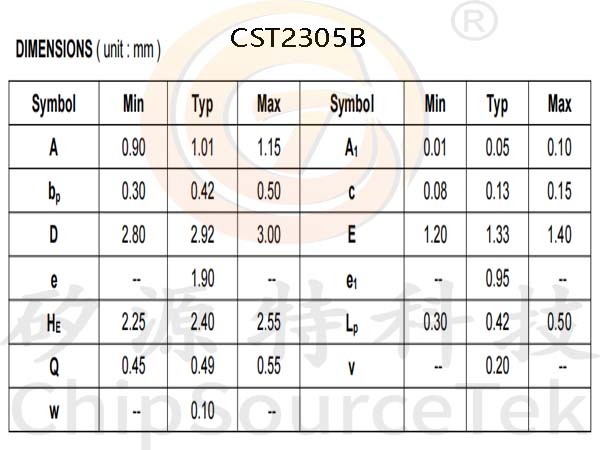

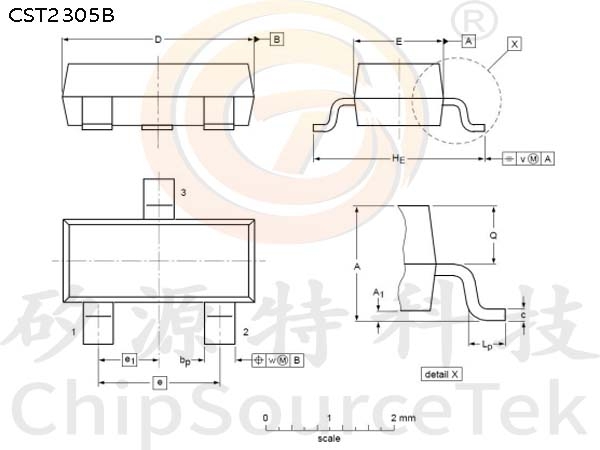

CST2305B Package Mechanical Data-SOT-23：
