CST90P01D Description:
CST90P01D is a fast switching Mosfet for P-channel with BVDSS=-20V, RDSON=3.6mΩ, ID=-90A. Provide TO252 packaging.
The CST90P01D is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST90P01D meet the RoHS and Green Product requirement with full function reliability approved.
CST90P01D Feature:
Super Low Gate Charge
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST90P01D Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
3.6mΩ |
-90A |

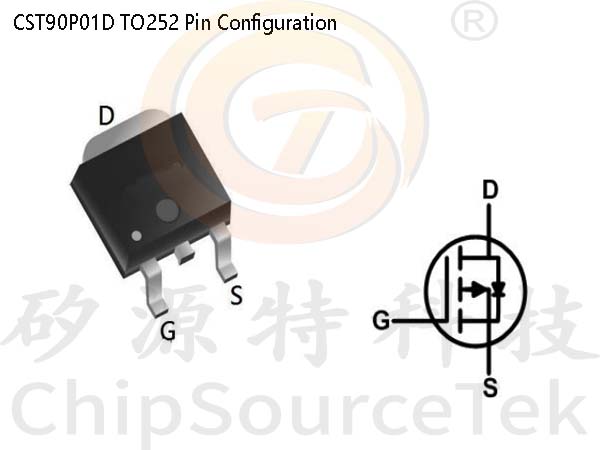

CST90P01D TO252 Pin Configuration:

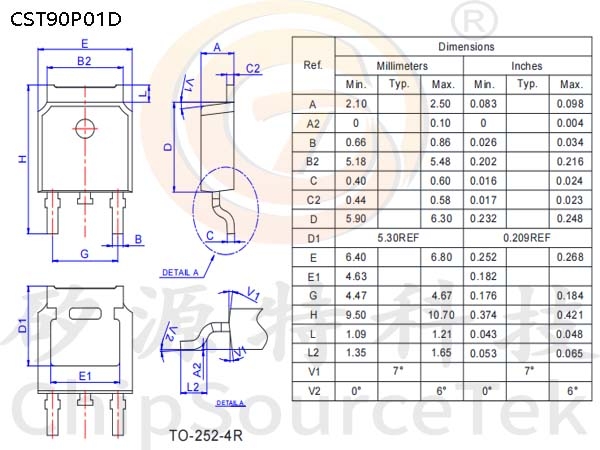

CST90P01D Package Mechanical Data-TO-252-4R:

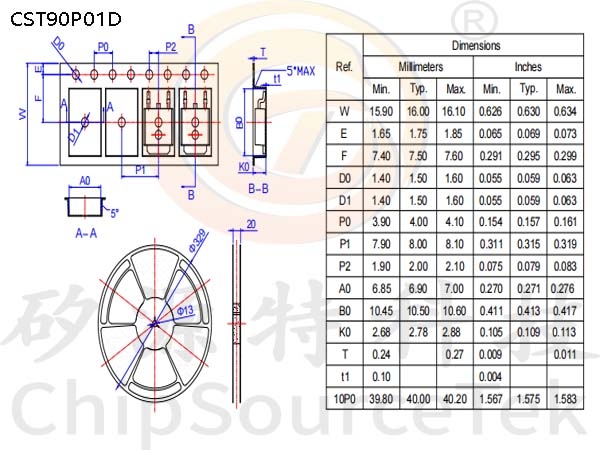

CST90P01D Reel Spectification-TO-252-4R:
