CST60P02D Description:
CST60P02D is a P-channel fast switching Mosfet with BVDSS=-20V, RDSON=6mΩ, ID=-60A. Provide PDFN3333-8L packaging.
The CST60P02D is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST60P02D meet the RoHS and Green Product requirement with full function reliability approved.
CST60P02D Feature:
Super Low Gate Charge
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST60P02D Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
6mΩ |
-60A |

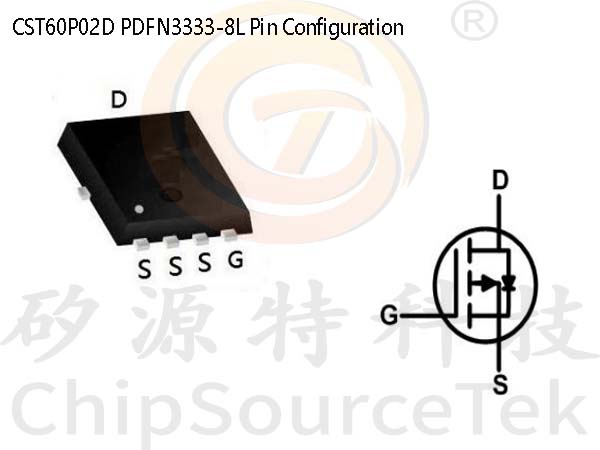

CST60P02D PDFN3333-8L Pin Configuration:

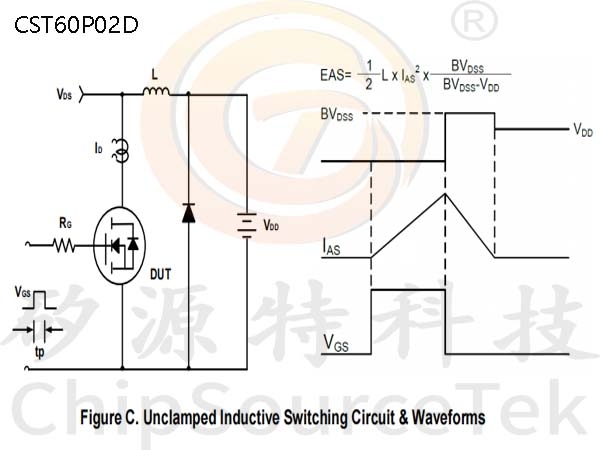

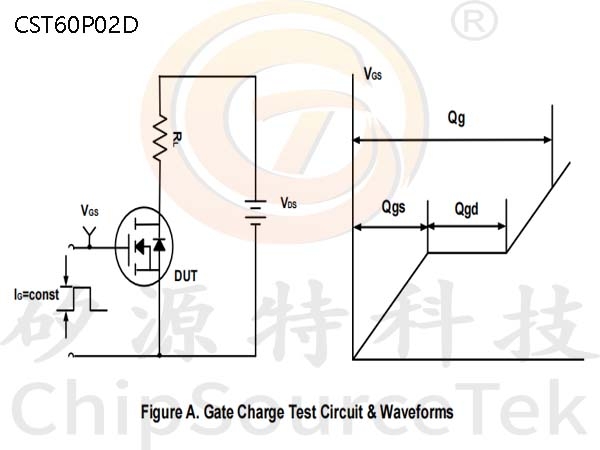

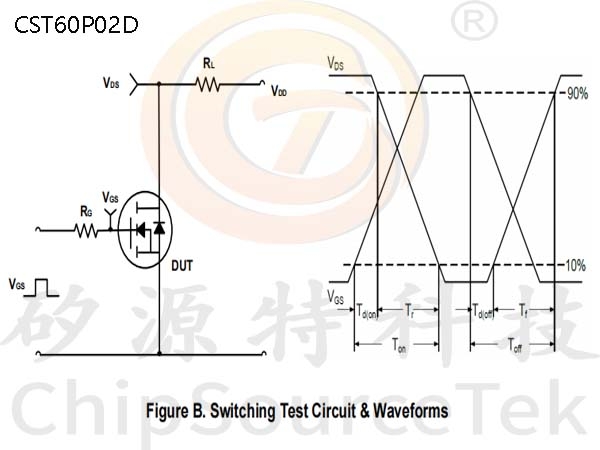

CST60P02D Test Circuit:

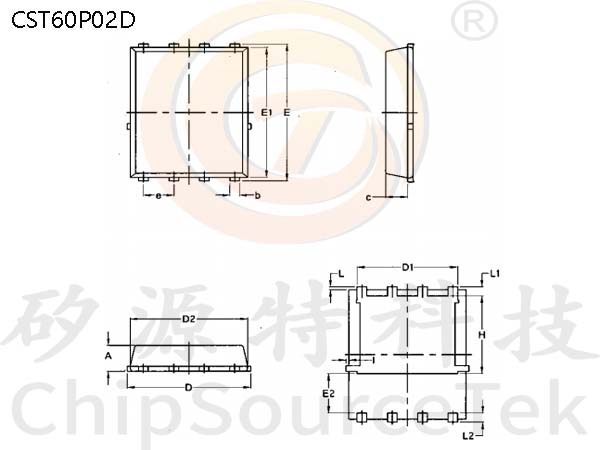

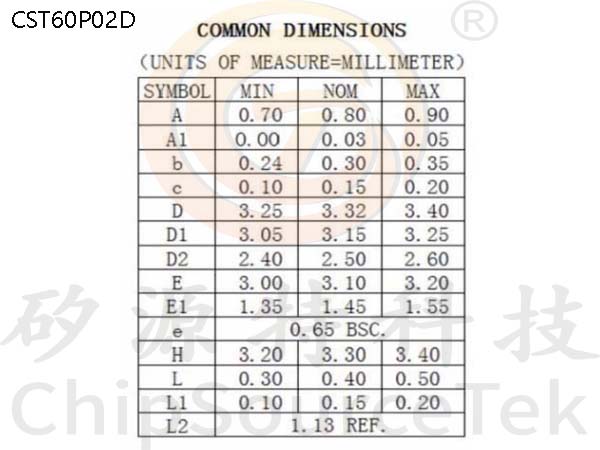

CST60P02D Package Mechanical Data-PDFN3333-8L-Single:
