CST30P02 Description:
CST30P02 is a fast switching Mosfet for P-channel with BVDSS=-18V, RDSON=15m Ω, ID=-25A. Provide TO252 packaging.
The CST30P02 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST30P02 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
CST30P02 Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST30P02 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-18V |
15mΩ |
-25A |

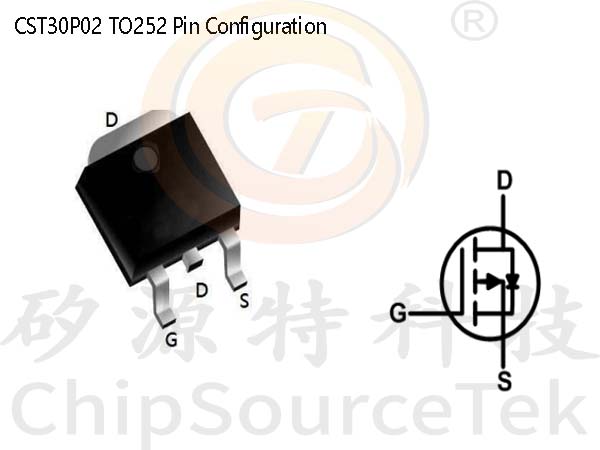

CST30P02 TO252 Pin Configuration:

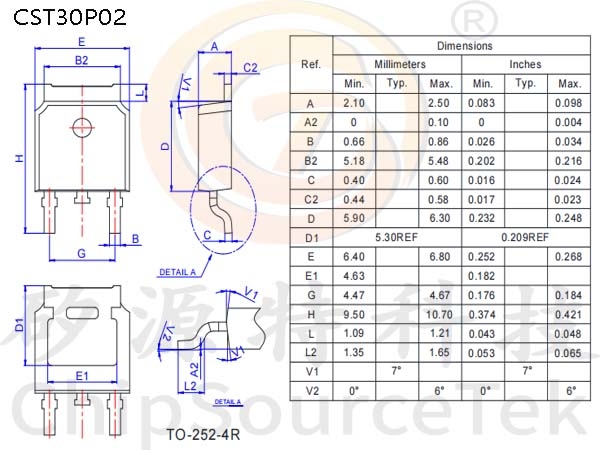

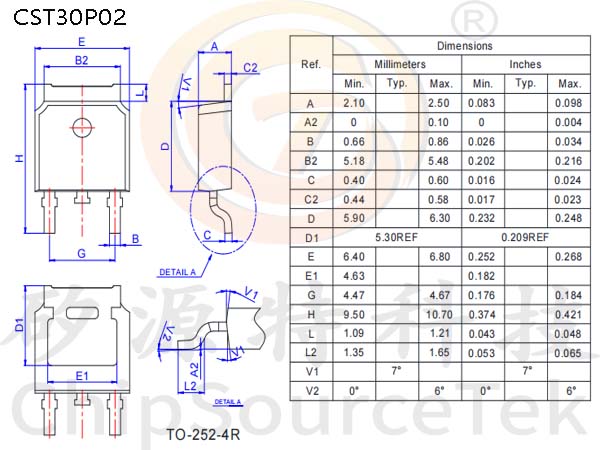

CST30P02 Package Mechanical Data-TO-252-4R:

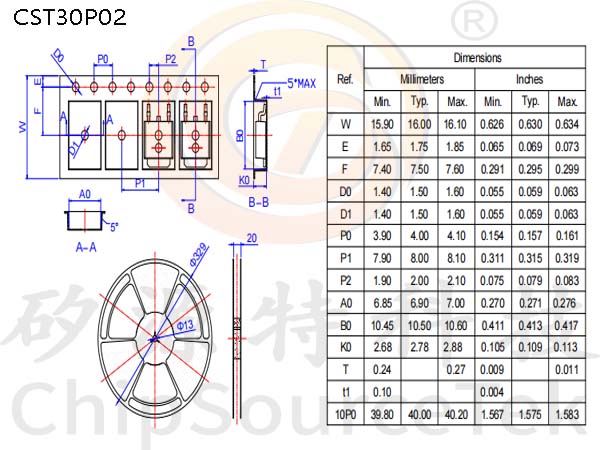

Reel Spectification-TO-252-4R:
