CST20P07 Description:
CST20P07 is a fast switching Mosfet for P-channel with BVDSS=-20V, RDSON=20mΩ, ID=-7.0A. Provide SOT23 packaging.
The CST20P07 is the high cell density trenched P-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications
The CST20P07 meet the RoHS and Green Product requirement with full function reliability approved.
CST20P07 Feature：
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST20P07 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
20mΩ |
-7.0A |

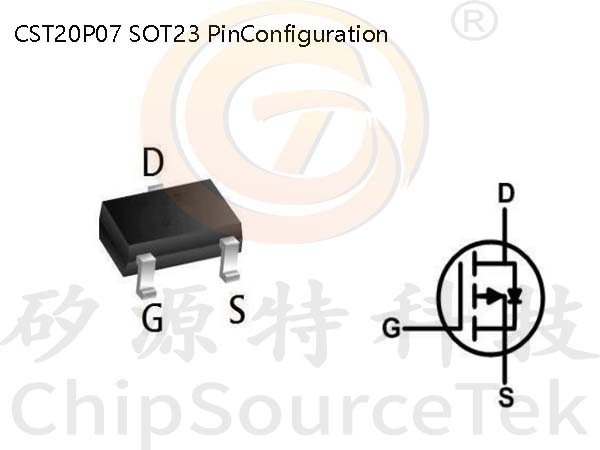

CST20P07 SOT23 PinConfiguration:

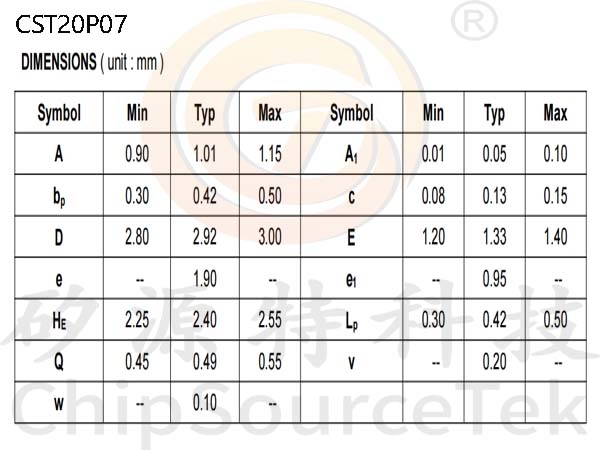

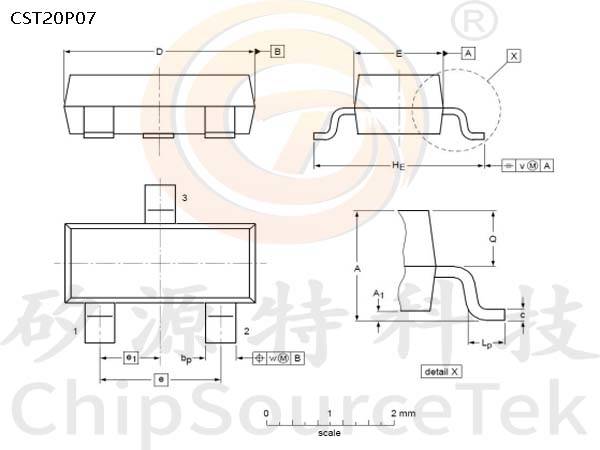

CST20P07 Package Mechanical Data-SOT-23：
