CST20P02M Description:
CST20P02M is a fast switching Mosfet for P-channel with BVDSS=-20V, RDSON=10m Ω, ID=-20A. Provide DFN2020-6L packaging.
The CST20P02M is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST20P02M meet the RoHS and Green Product requirement with full function reliability approved.
CST20P02M Feature：
Super Low Gate Charge
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST20P02M Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-20V |
10mΩ |
-20A |

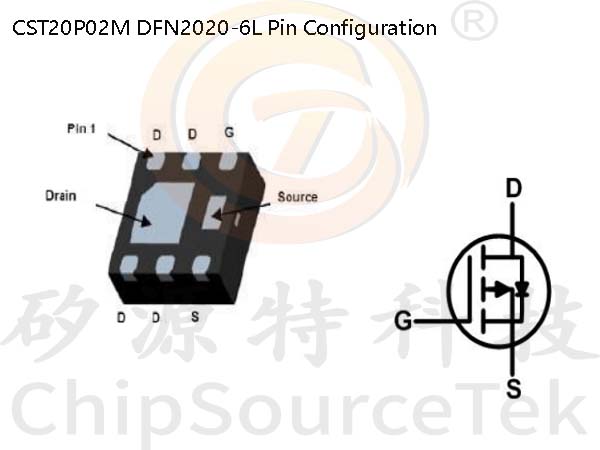

CST20P02M DFN2020-6L Pin Configuration:

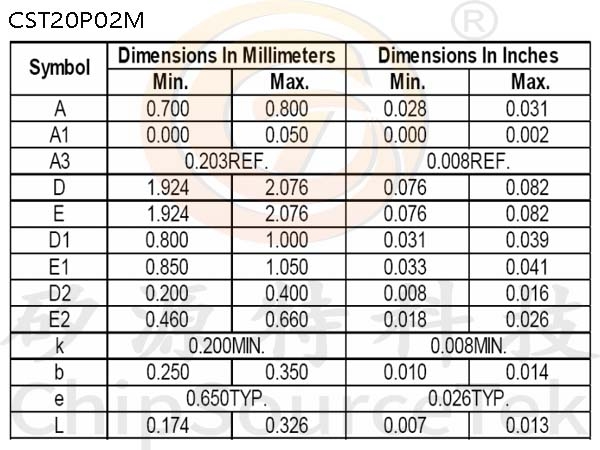

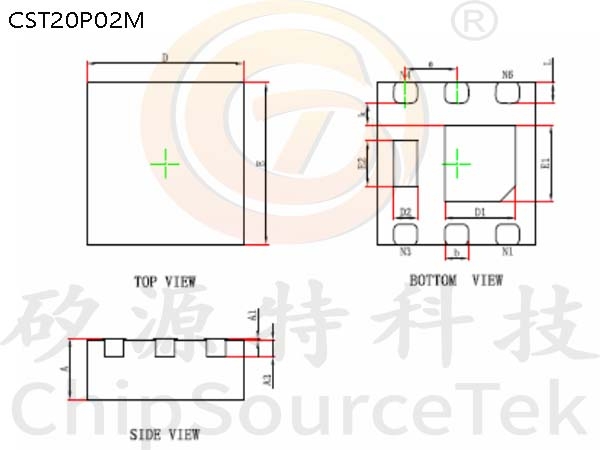

CST20P02M DFN2020-6L Package Information：
