CST20P07DL Description:
CST20P07DL is a P-channel fast switching Mosfet with BVDSS=-18V, RDSON=18mΩ, ID=-7.0A. Provide SOT23-3L packaging.
The CST20P07DL is the high cell density trenched P-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST20P07DL meet the RoHS and Green Product requirement with full function reliability approved.
CST20P07DL Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST20P07DL Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
-18V |
18mΩ |
-7.0A |

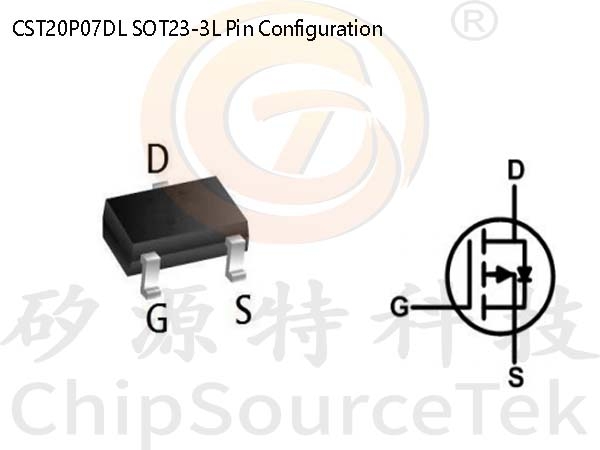

CST20P07DL SOT23-3L Pin Configuration:

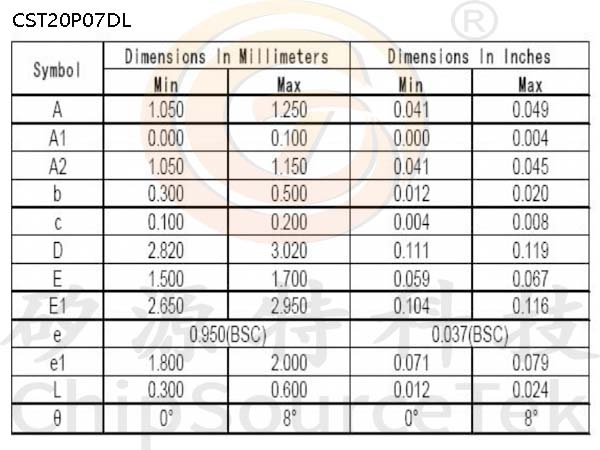

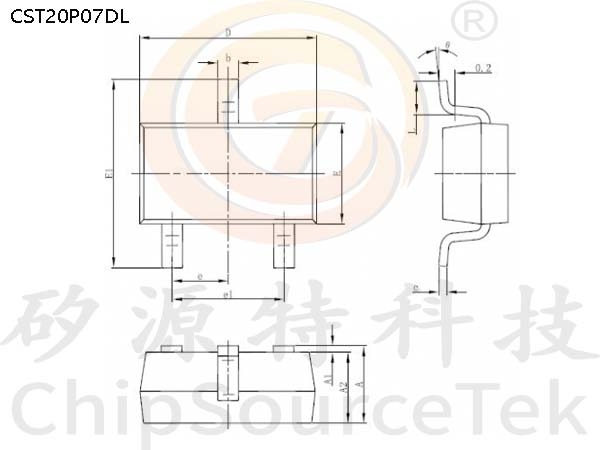

CST20P07DL SOT-23-3L Package Information:
