HYG210P06LQ1D/U/V Description/概述：
HYG210P06LQ1D/U/V是VDS=-60V,ID=-40A,RDS(ON)=19mΩ(typ.) @VGS=-10V,RDS(ON)=25mΩ(typ.) @VGS=-4.5V的P沟道Mosfet。提供TO-252-2L，TO-251-3L，TO-251-3S封装。
HYG210P06LQ1D/U/V Feature/特性：
-60V/-40A
RDS(ON)=19mΩ(typ.) @VGS=-10V
RDS(ON)=25mΩ(typ.) @VGS=-4.5V
100% avalanche tested
Reliable and Rugged
Halogen Free and Green Devices Available(RoHS Compliant)
HYG210P06LQ1D/U/V Applications/应用：
Power Management in DC/DC
Load switching.
Motor control.

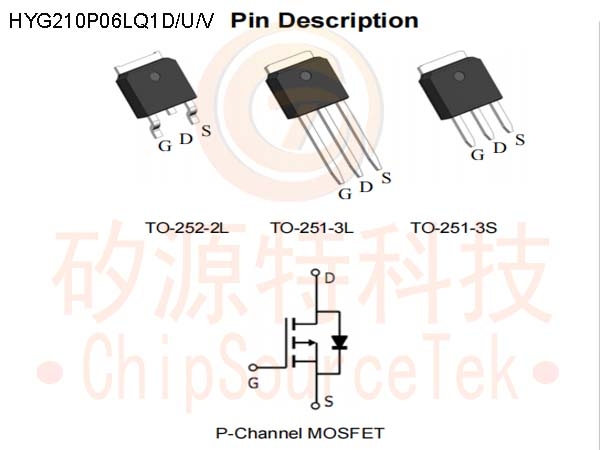

HYG210P06LQ1D/U/V Pin Description：

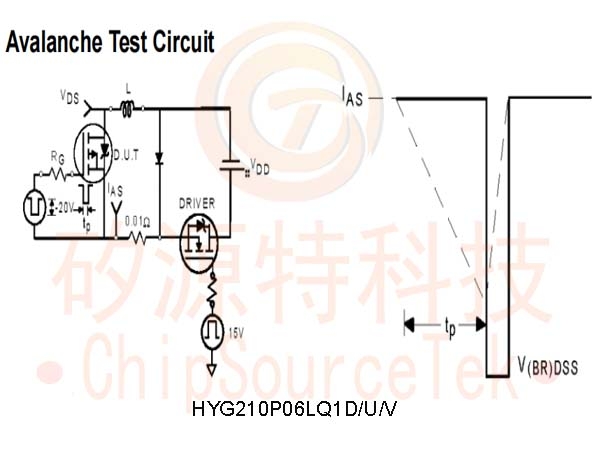

HYG210P06LQ1D/U/V Avalanche Test Circuit：

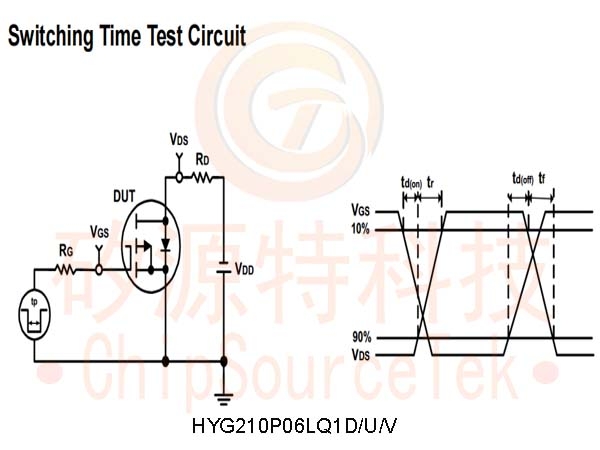

HYG210P06LQ1D/U/V Switching Time Test Circuit：

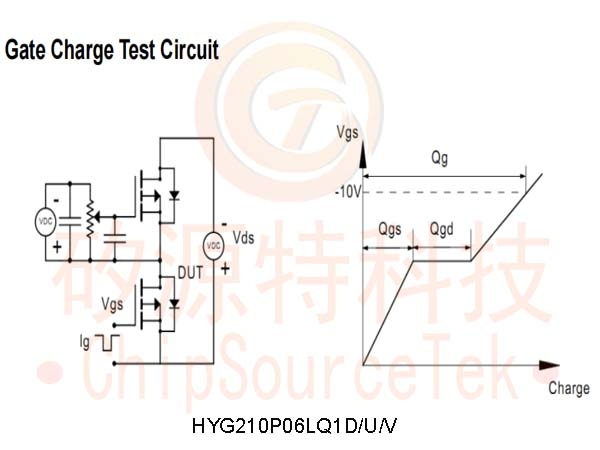

HYG210P06LQ1D/U/V Gate Charge Test Circuit：
HYG210P06LQ1D/U/V Device Per Unit：
|
Package Type
|
Unit
|
Quantity
|
|
TO-252-2L |
Tube |
75 |
|
TO-252-2L |
Reel |
2500 |
|
TO-251-3L |
Tube |
75 |
|
TO-251-3S |
Tube |
75 |
