PE8330M概述：
PE8330M是VDS=30V，ID=30A，RDS(ON)<11mΩ@VGS=10V，RDS(ON)<18mΩ@VGS=4.5V的N沟道MOSFET。
PE8330M的丝印是PE8330M，PE8330M提供PDFN3.3x3.3-8L封装。
PE8330M的丝印是PE8330M，PE8330M提供PDFN3.3x3.3-8L封装。
The PE8330M uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.
PE8330M特性：
VDS = 30V, ID = 30A
RDS(ON) < 11mΩ @ VGS=10V
RDS(ON) < 18mΩ @VGS=4.5V
High Power and current handing capability
Lead free product is acquired
Surface Mount Package
PE8330M应用：
PWM applications
Load switch

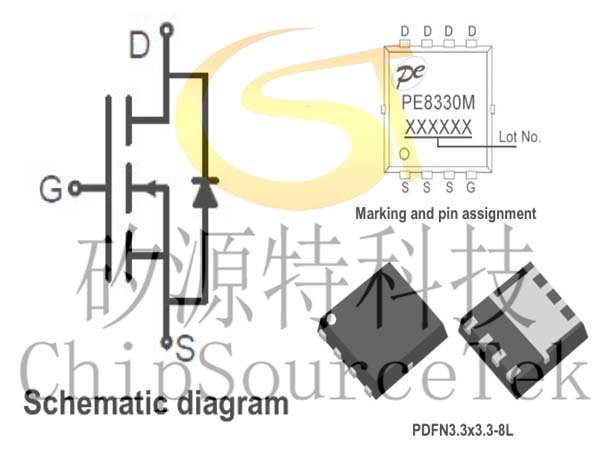

PE8330M典型应用及引脚：
