CST3400 Description:
CST3400 is an N-channel fast switching Mosfet with BVDSS=30V, RDSON=75mΩ, and ID=5.8A. Provide SOT23 packaging.
The CST3400 is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST3400 meet the RoHS and Green Product requirement with full function reliability approved.
CST3400 Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST3400 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
30V |
75mΩ |
5.8A |

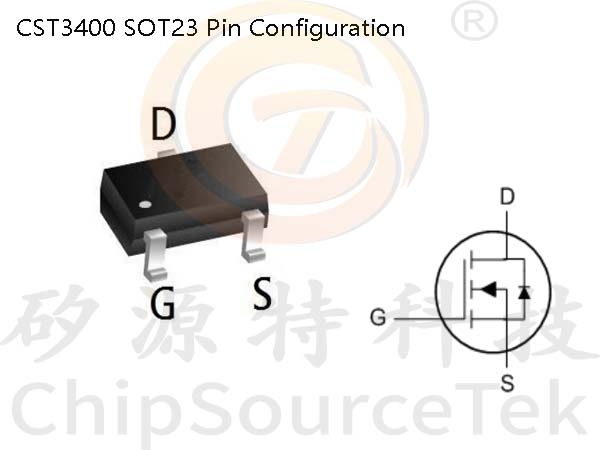

CST3400 SOT23 Pin Configuration:

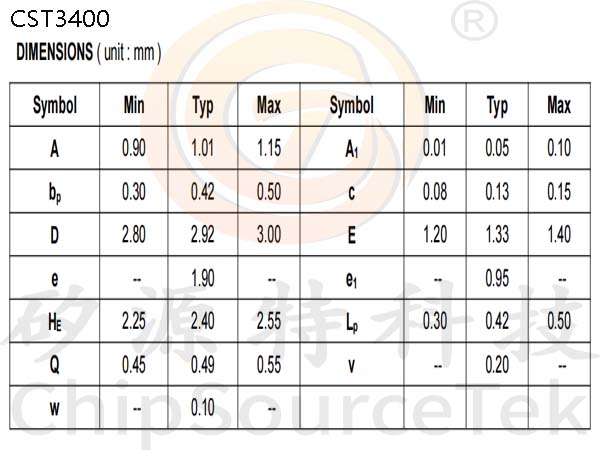

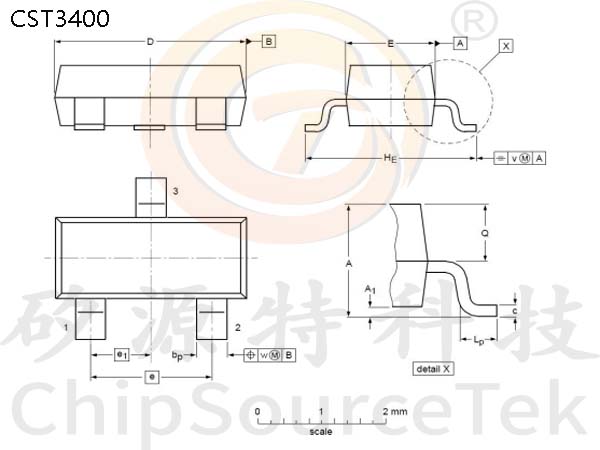

CST3400 Package Mechanical Data-SOT-23:
