CST10N06Q Description:
CST10N06Q is a fast switching Mosfet for N-channel with BVDSS=60V, RDSON=40mΩ, and ID=10A. Provide SOT89-3L packaging.
The CST10N06Q is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST10N06Q meet the RoHS and Green Product requirement with full function reliability approved.
CST10N06Q Feature：
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST10N06Q Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
60V |
40mΩ |
10A |

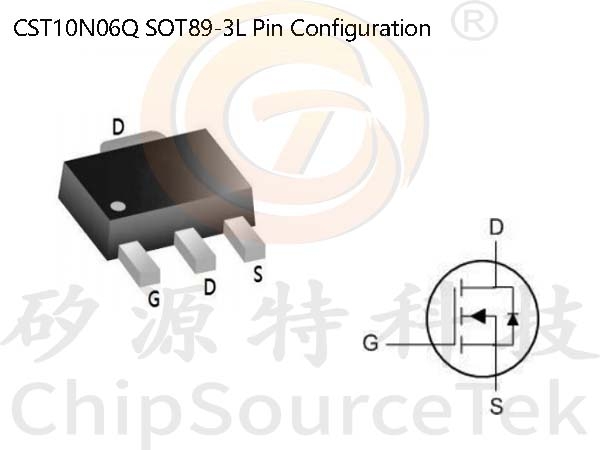

CST10N06Q SOT89-3L Pin Configuration:

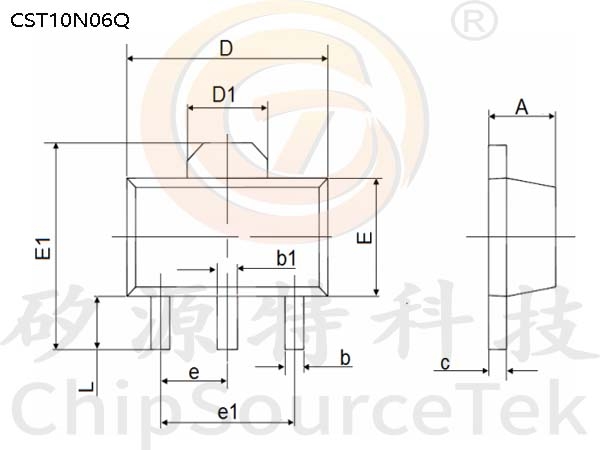

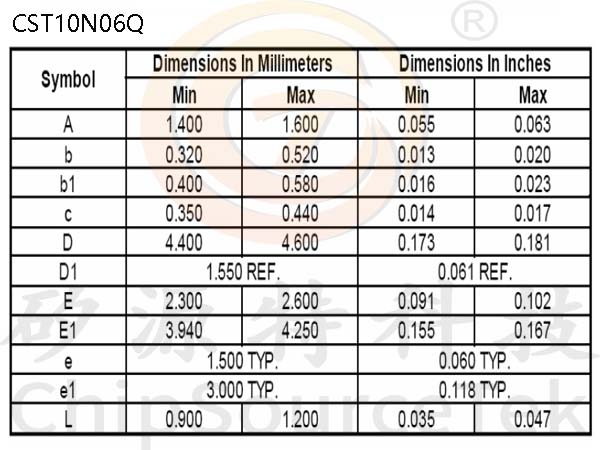

CST10N06Q SOT-89-3L Package Information:
