HYG030N03LQ1C2 Description:

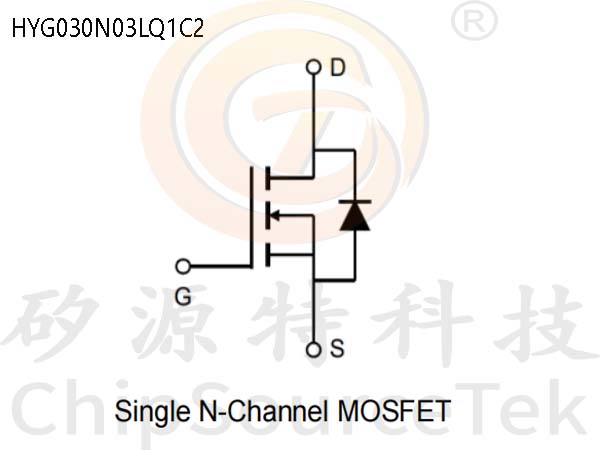

HYG030N03LQ1C2 is an N-channel enhanced mode power supply Mosfet with VDS=30V and RDS(ON)=2.4mΩ(typ.) @VGS=10V,RDS(ON)=3.5mΩ(typ.)@VGS=4.5V,Id=100A. Provide PDFN5 * 6 packaging.
HYG030N03LQ1C2 Feature:
* 30V/100A
RDS(ON)=2.4mΩ (typ.)@VGS=10V
RDS(ON)=3.5mΩ (typ.)@VGS=4.5V
* 100% Avalanche Tested
* Reliable and Rugged
* Halogen- Free Devices Available(RoHS Compliant)
HYG030N03LQ1C2 Applications:
* Battery Protection
* Load Switch

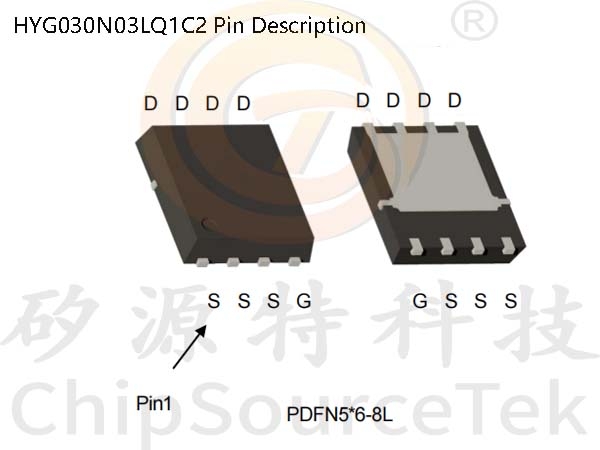

HYG030N03LQ1C2 Pin Description:

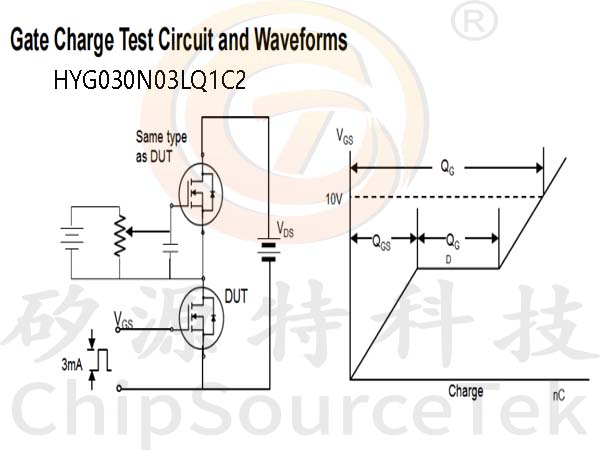

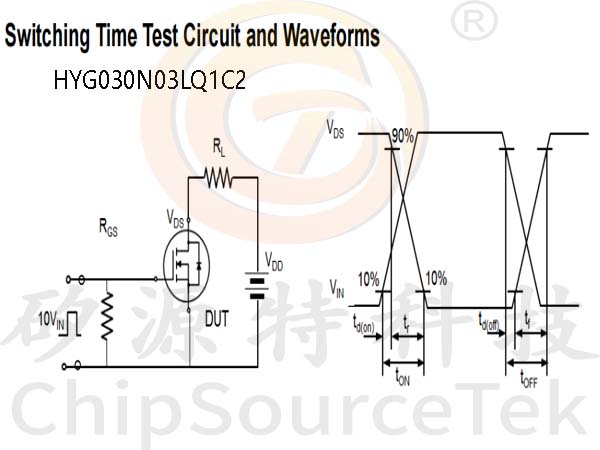

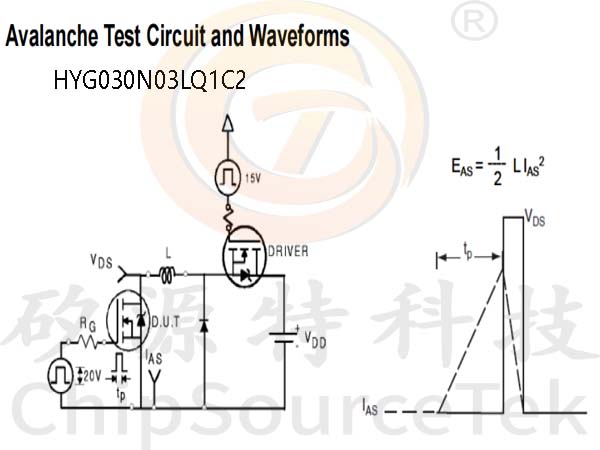

HYG030N03LQ1C2 Test Circuit:
