CST65N06 Description:
CST65N06 is a fast switching Mosfet for N-channel with BVDSS=60V, RDSON=6.8mΩ, and ID=65A. Provide TO252 packaging.
The CST65N06 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST65N06 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
CST65N06 Feature:
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST65N06 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
60V |
6.8mΩ |
65A |

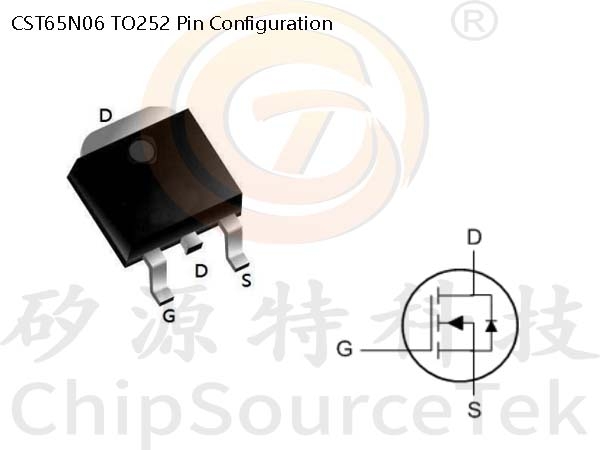

CST65N06 TO252 Pin Configuration:

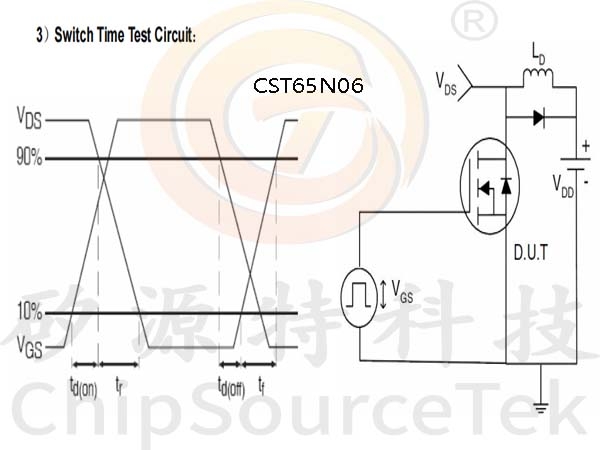

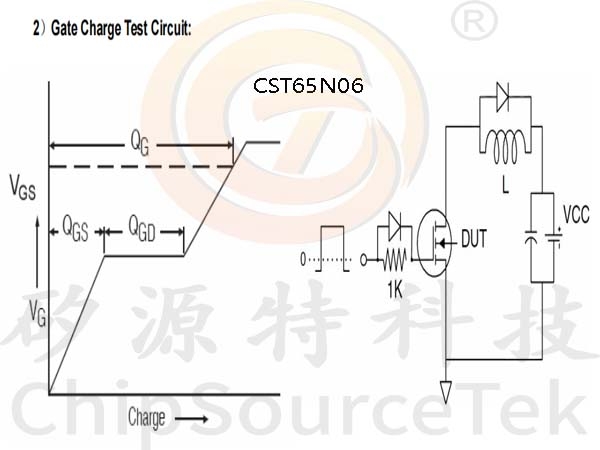

CST65N06 Test Circuit：

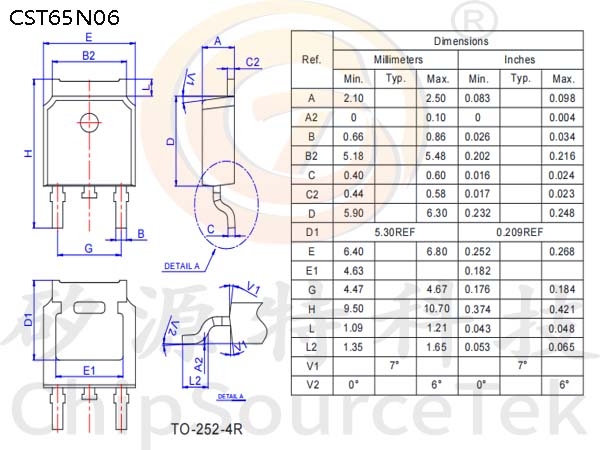

CST65N06 Package Mechanical Data-TO-252-4R：
CST65N06 Reel Spectification-TO-252-4R：
