CST10N15 Description:
CST10N15 is a fast switching Mosfet for N-channel with BVDSS=150V, RDSON=240mΩ, and ID=10A. Provide TO252 packaging.
The CST10N15 is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST10N15 meet the RoHS and Green Product requirement with full function reliability approved.
CST10N15 Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST10N15 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
150V |
240mΩ |
10A |

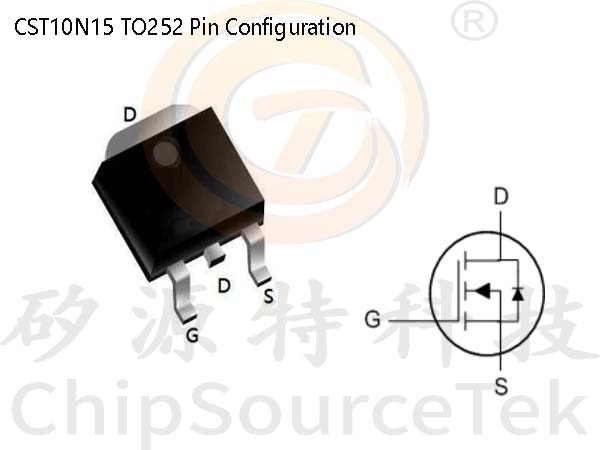

CST10N15 TO252 Pin Configuration:

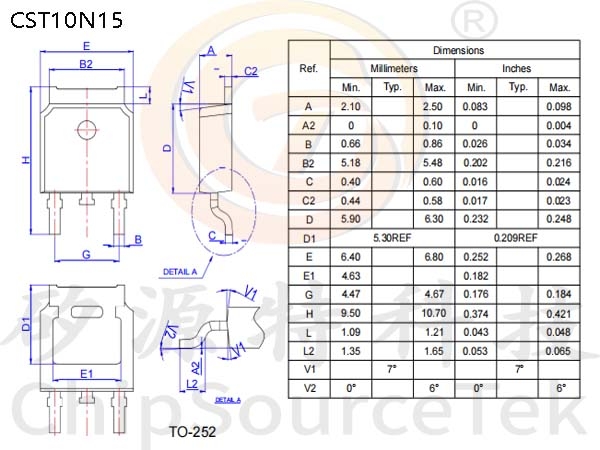

CST10N15 Package Mechanical Data-TO-252:

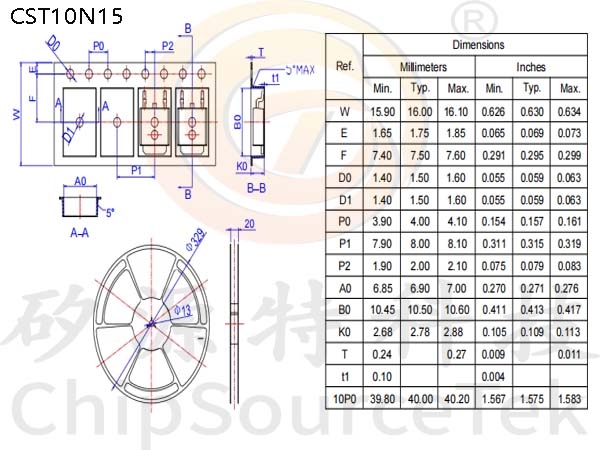

CST10N15 Reel Spectification-TO-252-4R:
