CST90N04 Description:
CST90N04 is a fast switching Mosfet for N-channel with BVDSS=40V, RDSON=4.5mΩ, and ID=90A. Provide TO252 packaging.
The CST90N04 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST90N04 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST90N04 Feature：
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST90N04 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
4.5mΩ |
90A |

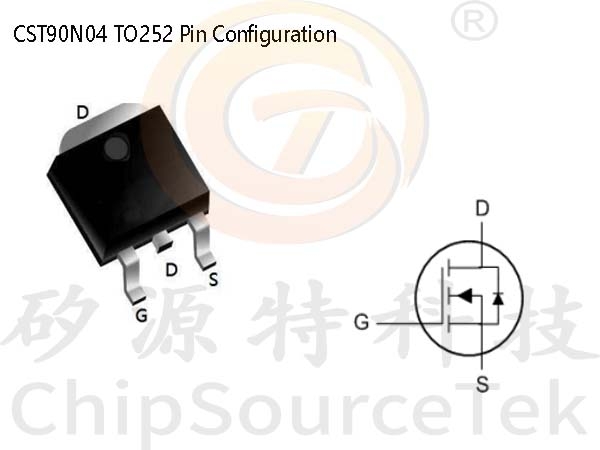

CST90N04 TO252 Pin Configuration:

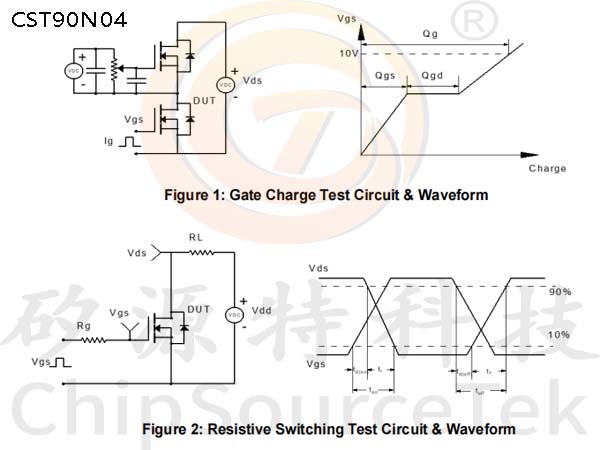

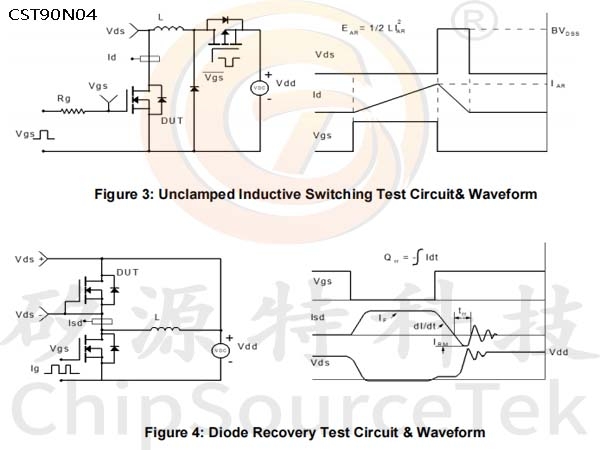

CST90N04 Test Circuit:
