CST80N04B Description:
CST80N04B is a fast switching Mosfet for N-channel with BVDSS=40V, RDSON=5.4mΩ, and ID=80A. Provide TO252 packaging.
The CST80N04B is the high cell densitytrenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST80N04B meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST80N04B Feature：
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST80N04B Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
5.4mΩ |
80A |

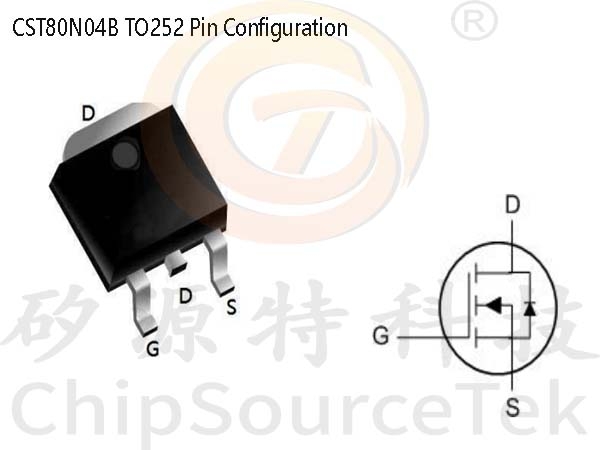

CST80N04B TO252 Pin Configuration:

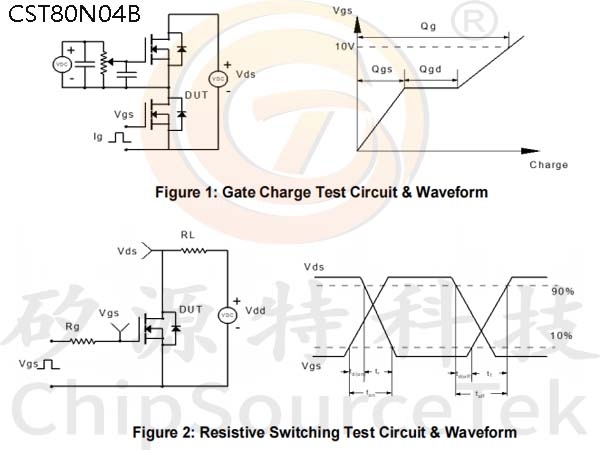

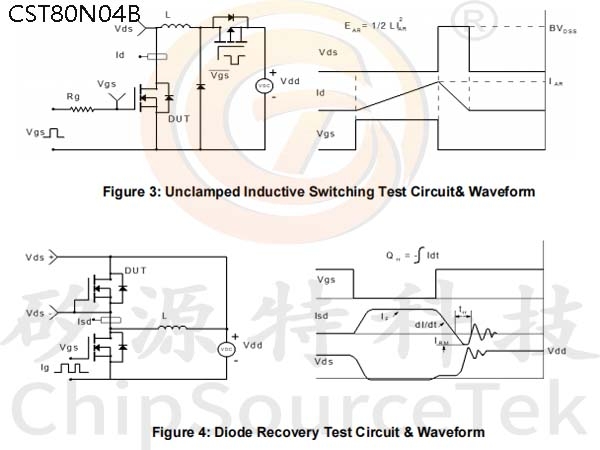

CST80N04B Test Circuit:
