CST30N04 Description:
CST30N04 is a fast switching Mosfet for N-channel with BVDSS=40V, RDSON=18mΩ, and ID=30A. Provide TO252 packaging.
The CST30N04 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST30N04 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST30N04 Feature：
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST30N04 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
18mΩ |
30A |

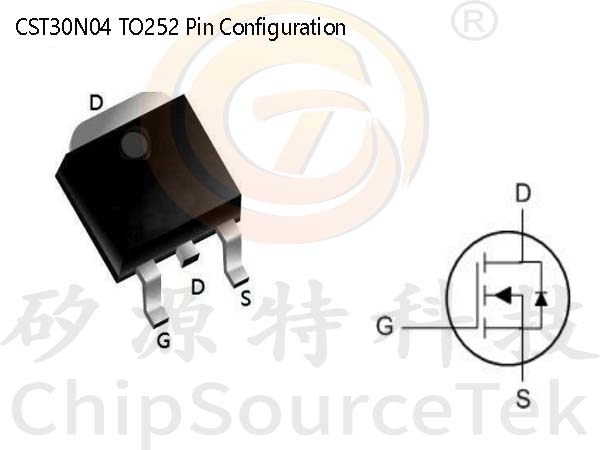

CST30N04 TO252 Pin Configuration:

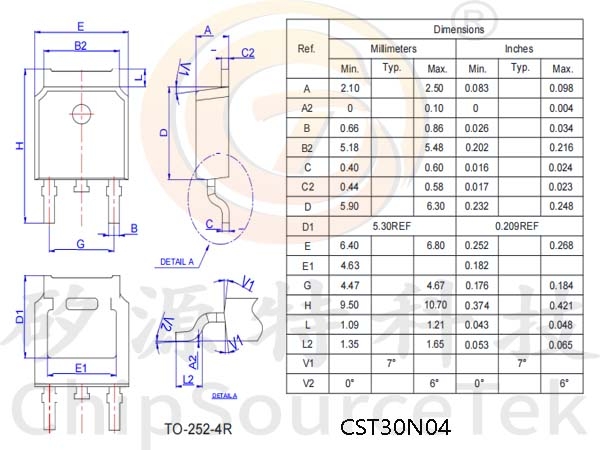

CST30N04 Package Mechanical Data-TO-252-4R:

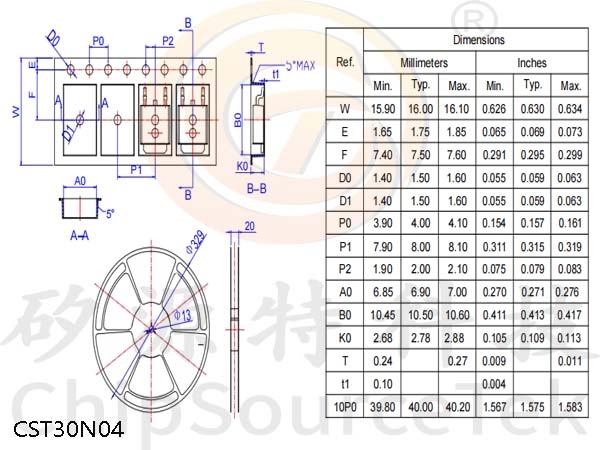

CST30N04 Reel Spectification-TO-252-4R:
