CST20N04 Description:
CST20N04 is a fast switching Mosfet for N-channel with BVDSS=40V, RDSON=25mΩ, and ID=20A. Provide TO252 packaging.
The CST20N04 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST20N04 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST20N04 Feature：
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST20N04 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
40V |
25mΩ |
20A |

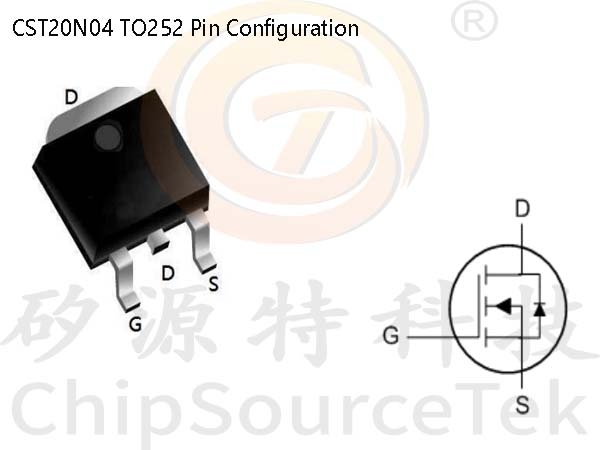

CST20N04 TO252 Pin Configuration:

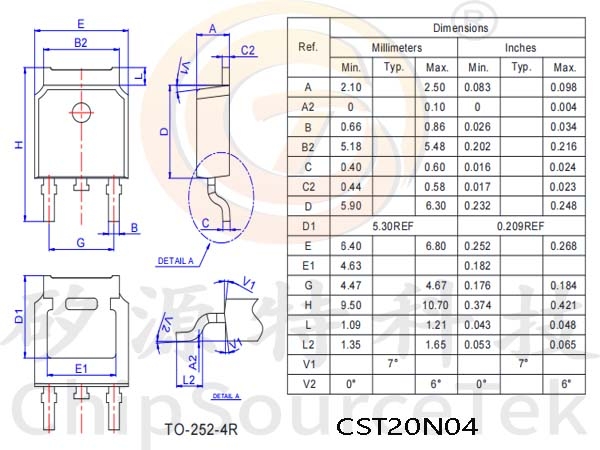

CST20N04 Package Mechanical Data-TO-252-4R:
