CST120N03A Description:
CST120N03A is a fast switching Mosfet for N-channel with BVDSS=30V, RDSON=2.5m Ω, and ID=120A. Provide TO252 packaging.
The CST120N03A is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST120N03A meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST120N03A Feature:
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST120N03A Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
30V |
2.5mΩ |
120A |

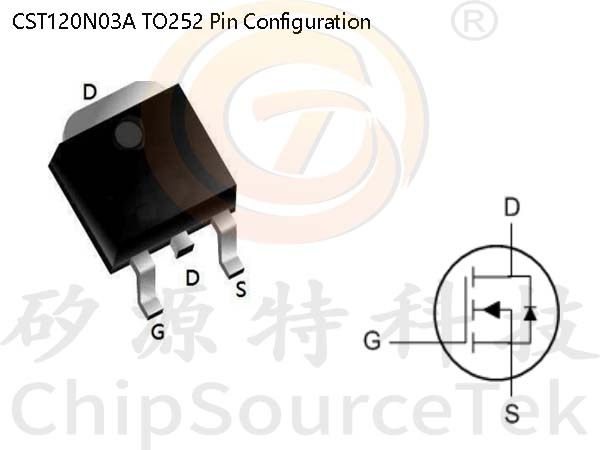

CST120N03A TO252 Pin Configuration：

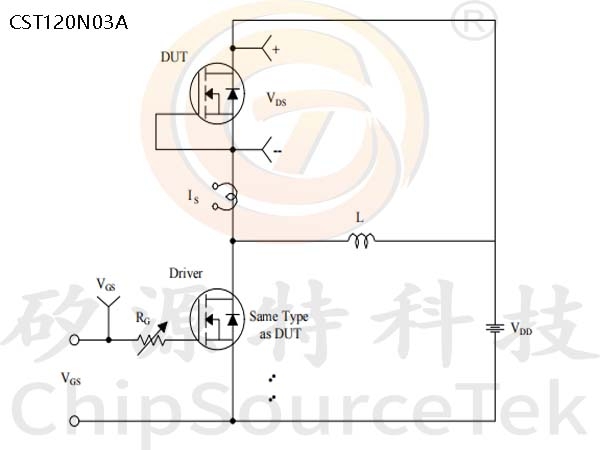

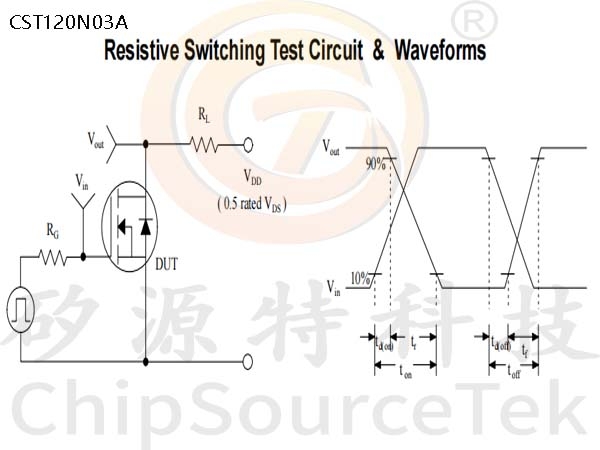

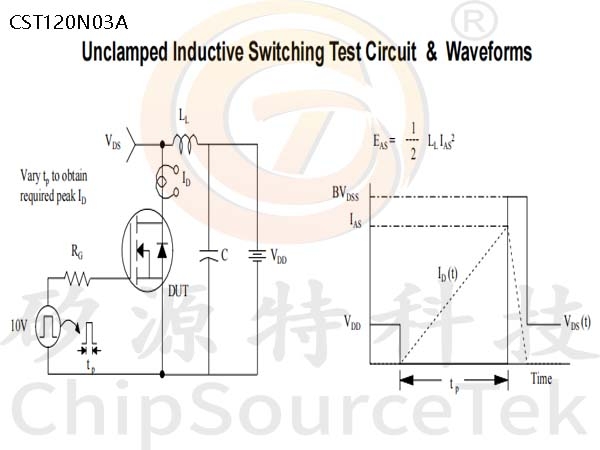

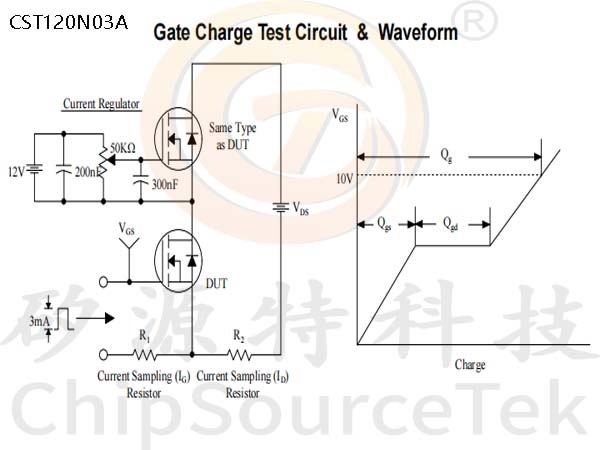

CST120N03A Test Circuit：
