CST100N03Z Description:
CST100N03Z is a fast switching Mosfet for N-channel with BVDSS=30V, RDSON=3.5mΩ, and ID=100A. Provide TO251 packaging.
The CST100N03Z is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST100N03Z meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST100N03Z Feature:
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST100N03Z Product Summary：
|
BVDSS
|
RDSON
|
ID
|
|
30V |
3.5mΩ |
100A |

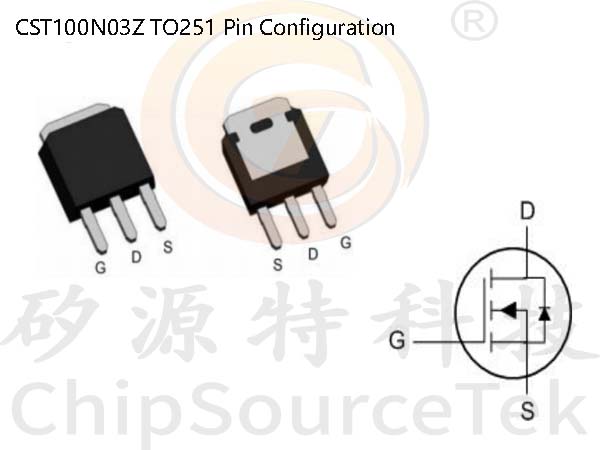

CST100N03Z TO251 Pin Configuration：

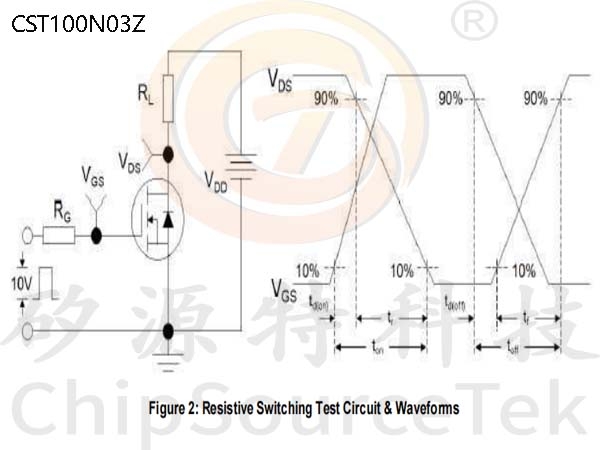

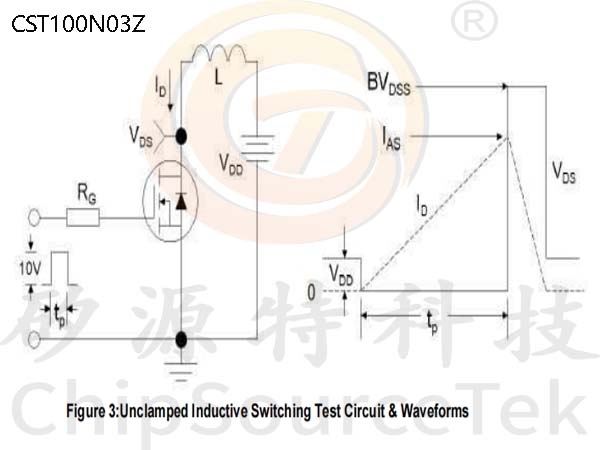

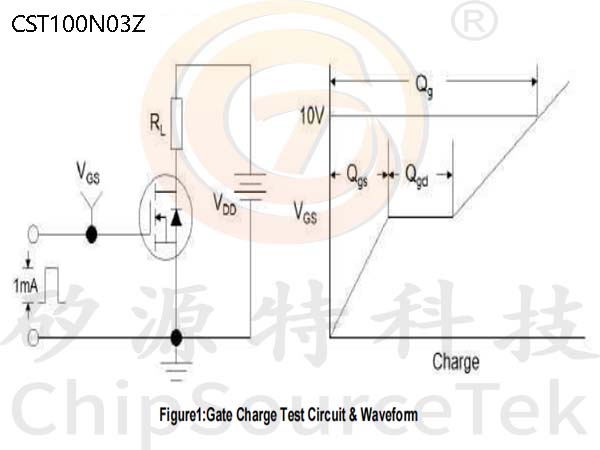

CST100N03Z Test Circuit：

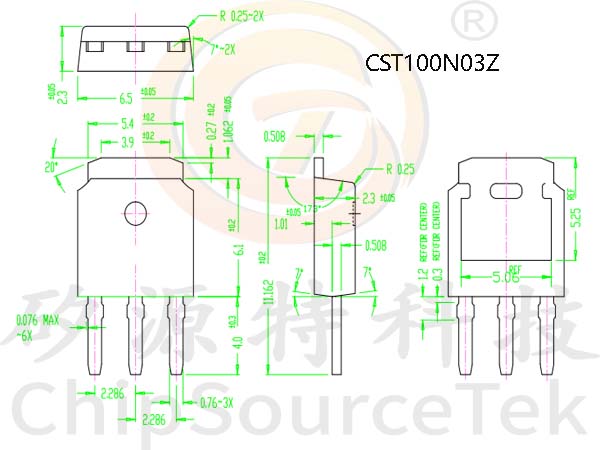

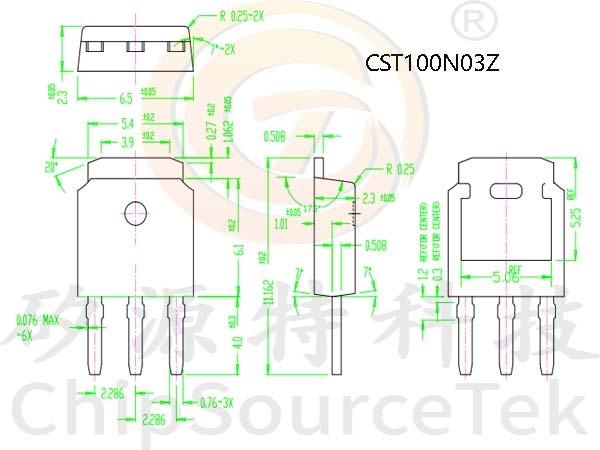

CST100N03Z Package Mechanical Data TO-251：
