CST3400L Description：
CST3400L is an N-Ch fast switching Mosfet with BVDSS=30V, RDSON=24mΩ, ID=5.8A. Provide SOT23-3L packaging.
The CST3400L is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small power switching and load switch applications.
The CST3400L meet the RoHS and Green Product requirement with full function reliability approved.
CST3400L Feature:
Green Device Available
Super Low Gate Charge
Excellent Cdv/dt effect decline
Advanced high cell density Trench technology
CST3400L Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
30V |
24mΩ |
5.8A |

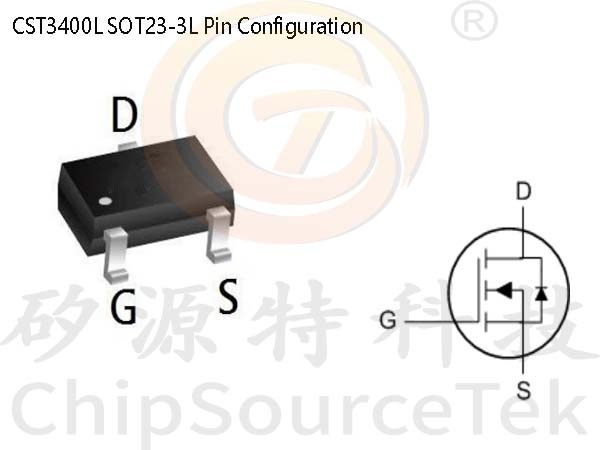

CST3400L SOT23-2L Pin Configuration:

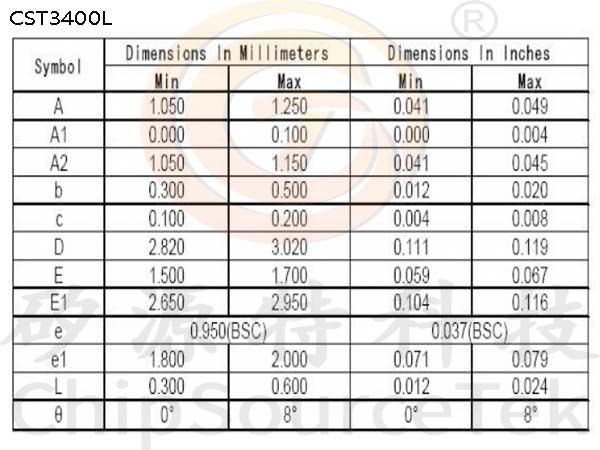

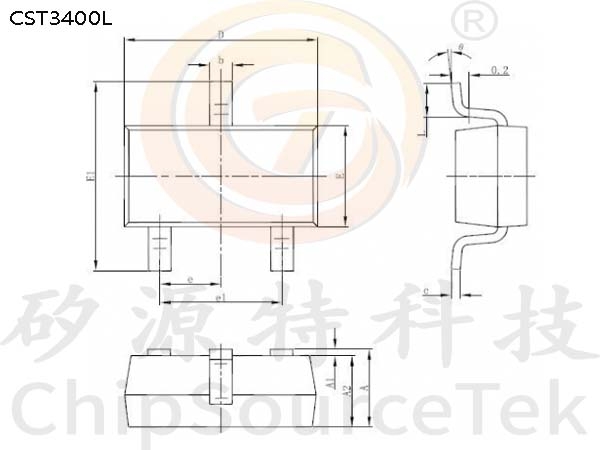

CST3400L SOT-23-3L Package Information:
