CST70N03F Description:
CST70N03F is a fast switching Mosfet for N-channel with BVDSS=30V, RDSON=5.2m Ω, and ID=70A. Provide PDFN5060-8L packaging.
The CST70N03F is the hi h cell densit trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST70N03F meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST70N03F Feature:
Super Low Gate Charge
100% EAS Guaranteed
Green Device Available
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST70N03F Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
30V |
5.2mΩ |
70A |

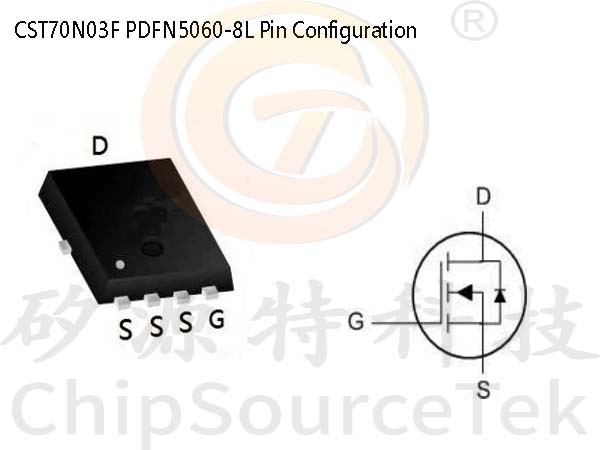

CST70N03F PDFN5060-8L Pin Configuration:

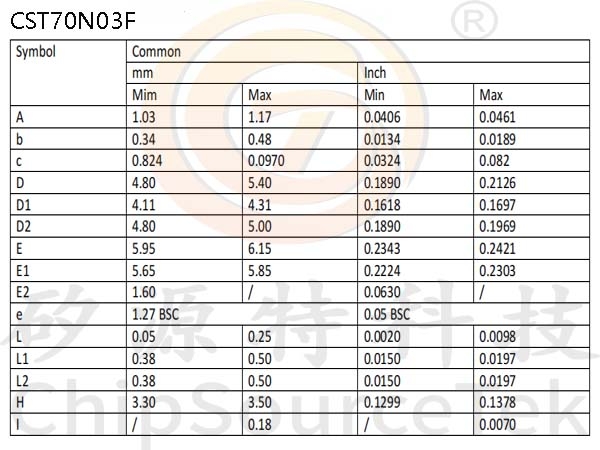

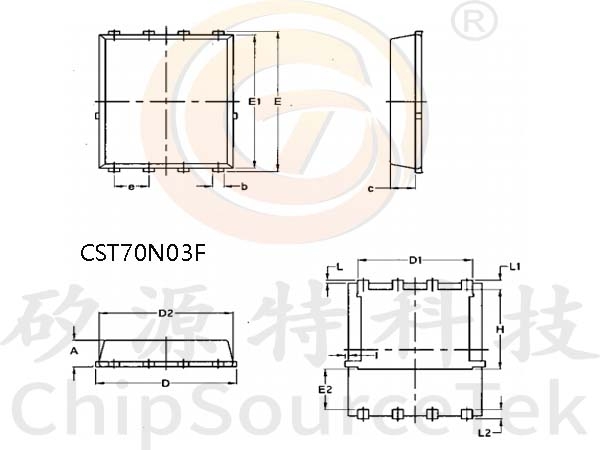

CST70N03F Package Mechanical Data-DFN5060-8L-JQ Single:
